Analog modules

6.14 Analog output module SM 332; AO 4 x 12 Bit; (6ES7332-5HD01-0AB0)

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

461

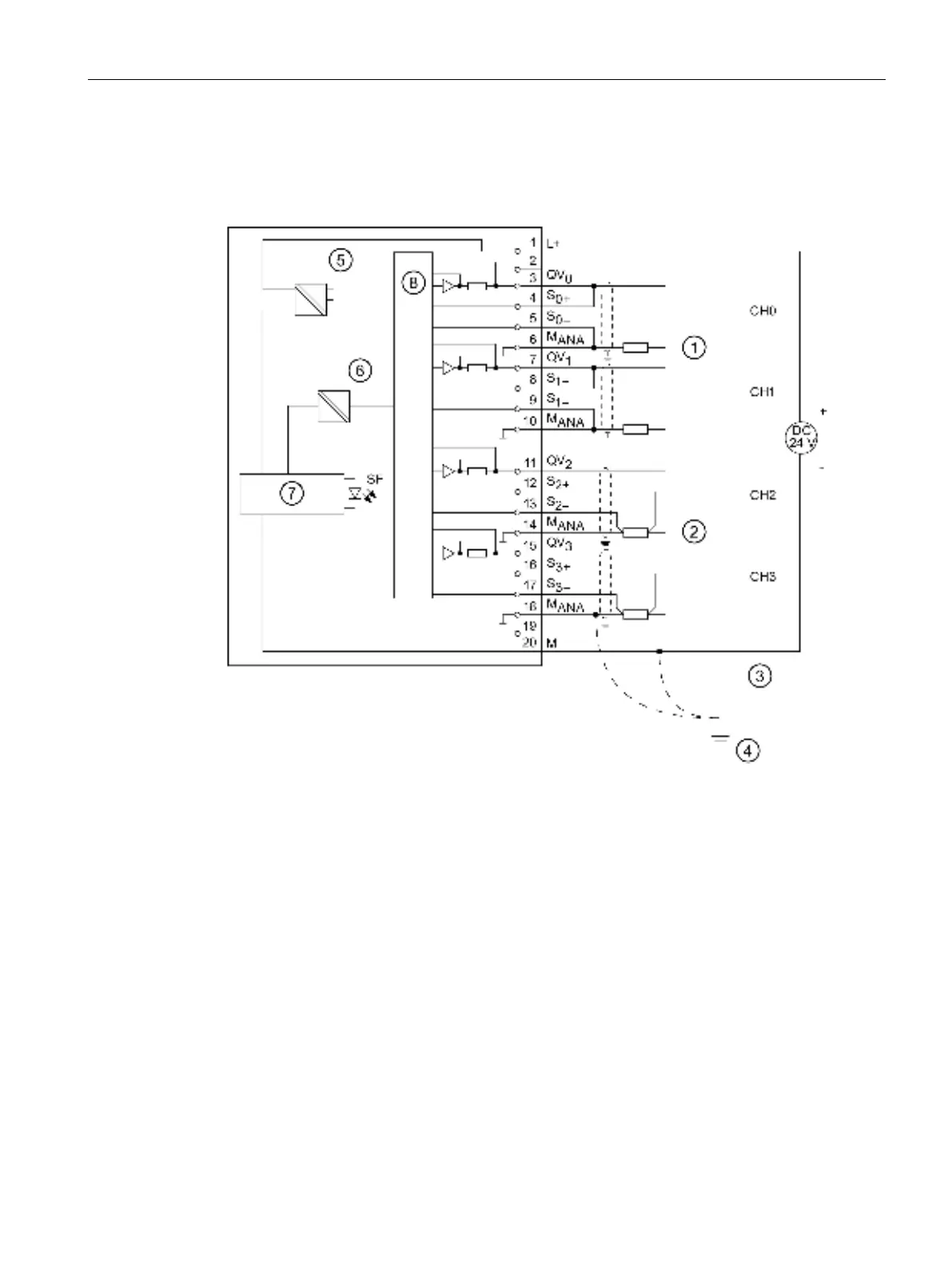

Wiring: 2 and 4-wire connection for voltage output

The following Fig. represents the 2-wire connection with no compensation for line resistors

and the 4-wire connection with compensation for line resistors.

①

2-wire connection, no compensation for line resistors

②

4-wire connection, with compensation for line resistors

③

Equipotential bonding

④

Functional earthing

⑤

Internal supply

⑥

Electrical isolation

⑦

Backplane bus interface

⑧

Analog-to-Digital Converter (ADC)

Figure 6-46 Wiring and block diagram
