Analog modules
6.14 Analog output module SM 332; AO 4 x 12 Bit; (6ES7332-5HD01-0AB0)
S7-300 Module data
462 Manual, 06/2017, A5E00105505-AJ

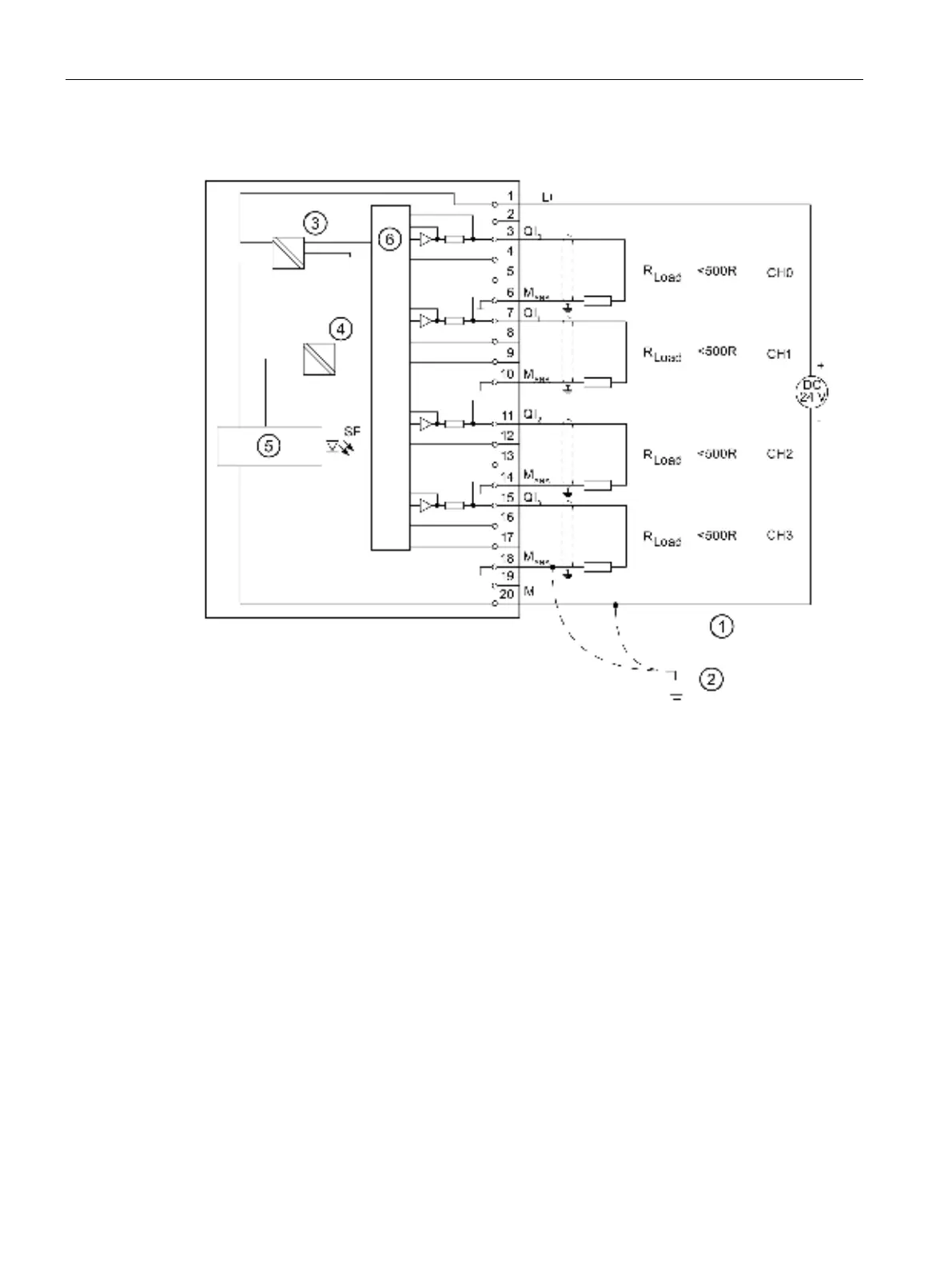

Wiring: Current output
①
Equipotential bonding
②
Functional earthing
③
Internal supply
④
Electrical isolation
⑤
Backplane bus interface
⑥
Analog-to-Digital Converter (ADC)
Figure 6-47 Wiring and block diagram
