Siemens SIMATIC User Manual

Parameter sets of signal modules
A.6 Parameters of analog input modules
S7-300 Module data
Manual, 06/2017, A5E00105505-AJ
535
Structure of data record 1

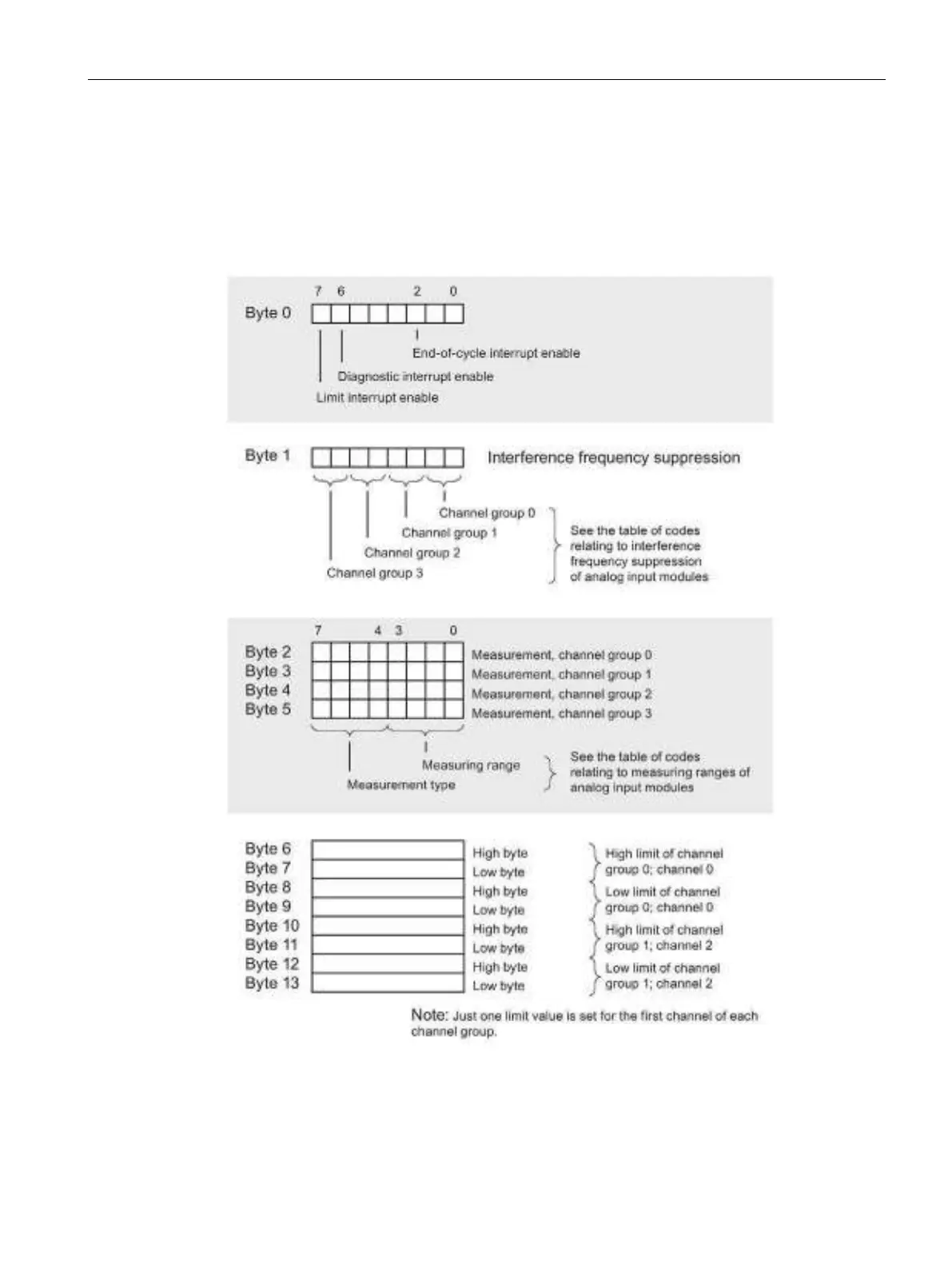

The figure below shows the structure of data record 1 of the parameters for an analog input
module with 8 channels in 4 groups (e.g. AI 8 x 12 bits). The structure of a module whose
channels are not grouped together is documented in the relevant module description.
You enable a parameter by setting a logic "1" at the corresponding bit of byte 0.
Figure A-5 Data record 1 for the parameters of analog input modules
