Parameter sets of signal modules

A.14 Parameters of analog IO modules

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

581

Structure of data record 1

The figure below shows the structure of data record 1 for the parameters of analog IO

modules.

You enable a parameter by setting a logic "1" at the corresponding bit of byte 0.

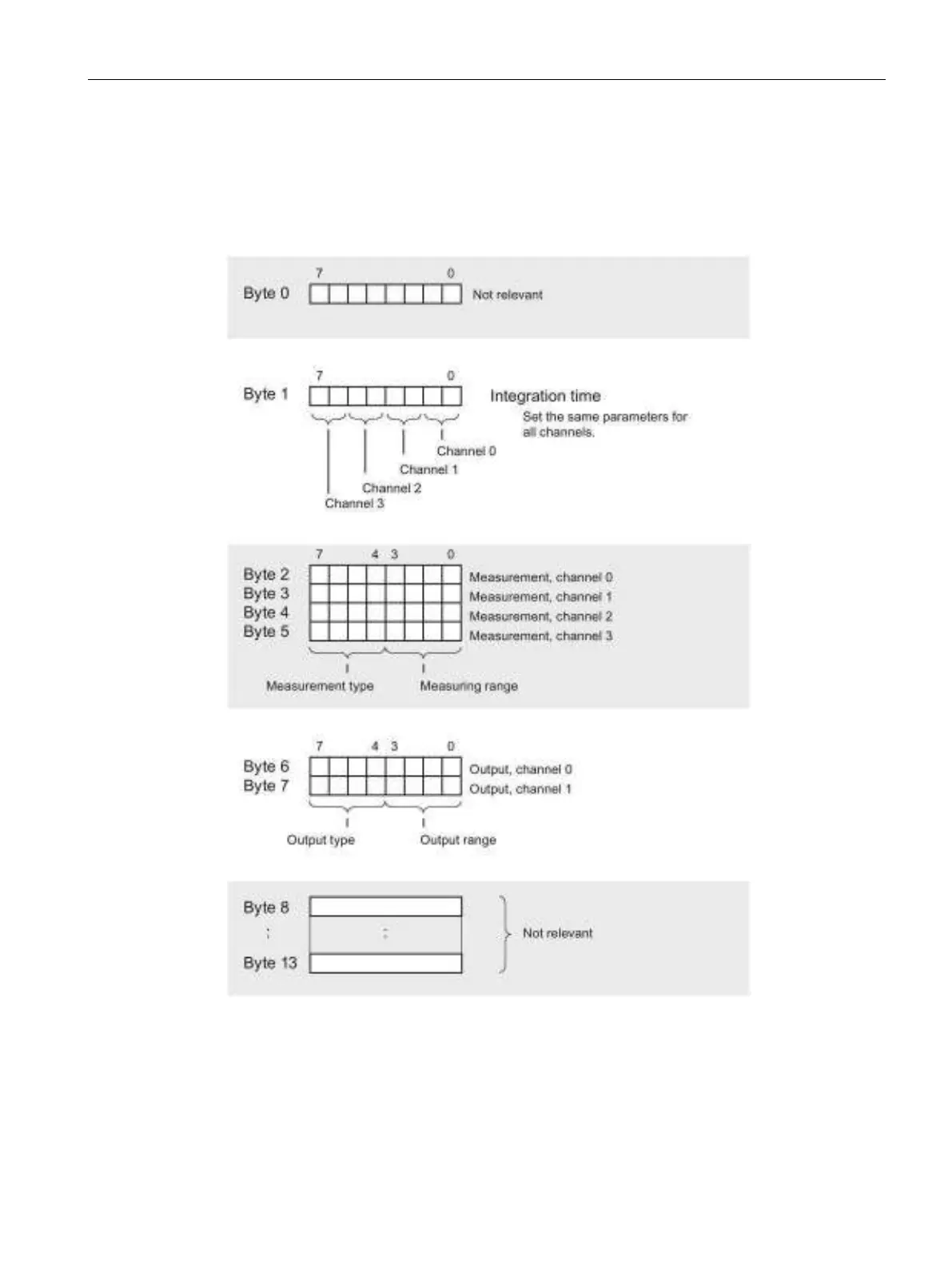

Figure A-27 Data record 1 for the parameters of analog IO modules
