Diagnostics data of signal modules

B.4 Diagnosis data from the SM 322; DO 16 x DC24 V/0.5 A (6ES7322-8BH10-0AB0)

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

591

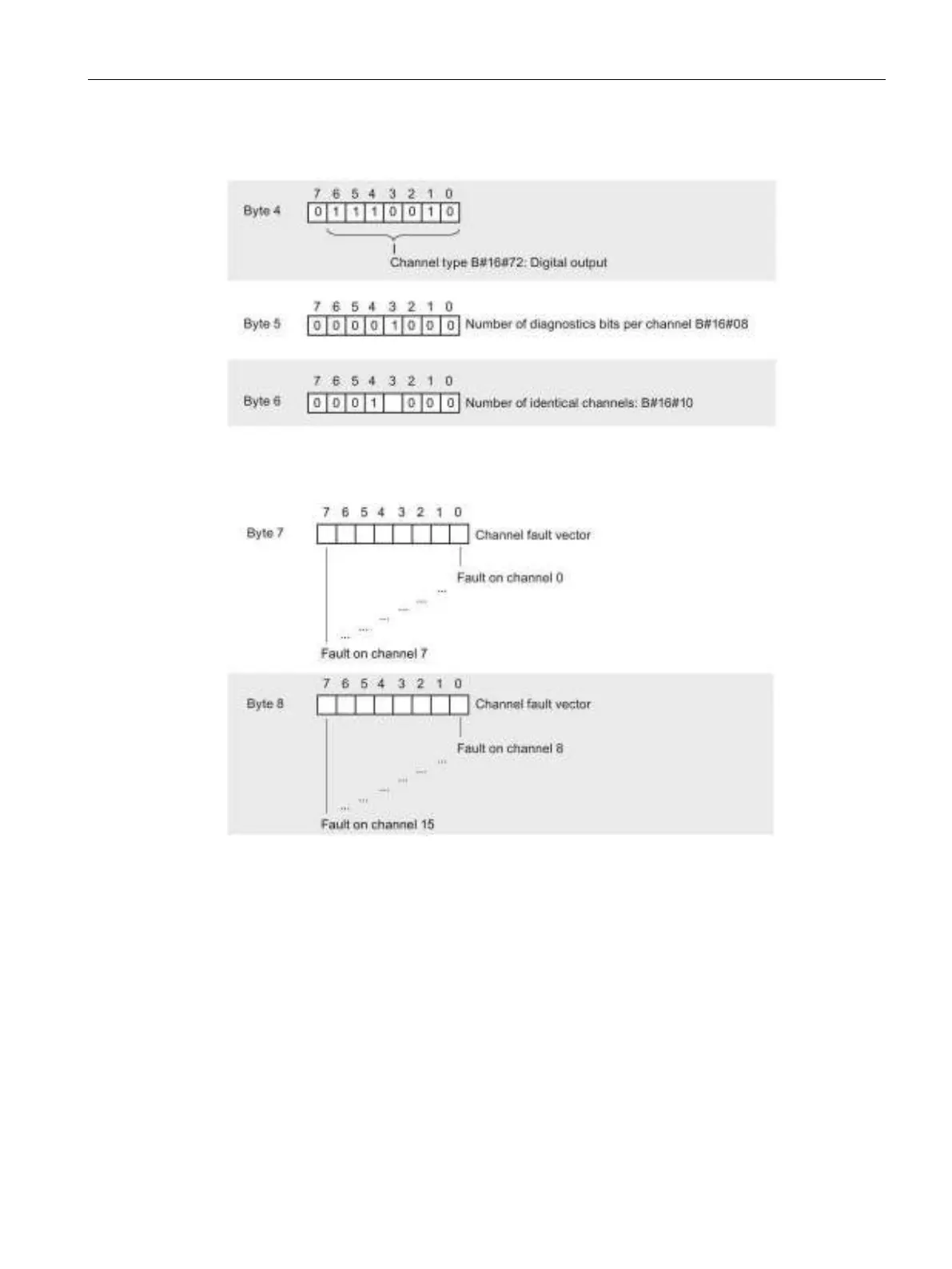

Byte 4 to byte 6 infoblock (diagnostic data record 1)

Byte 7 and 8 channel error vector (Diagnostic data record 1)
