Diagnostics data of signal modules

B.4 Diagnosis data from the SM 322; DO 16 x DC24 V/0.5 A (6ES7322-8BH10-0AB0)

S7-300 Module data

592 Manual, 06/2017, A5E00105505-AJ

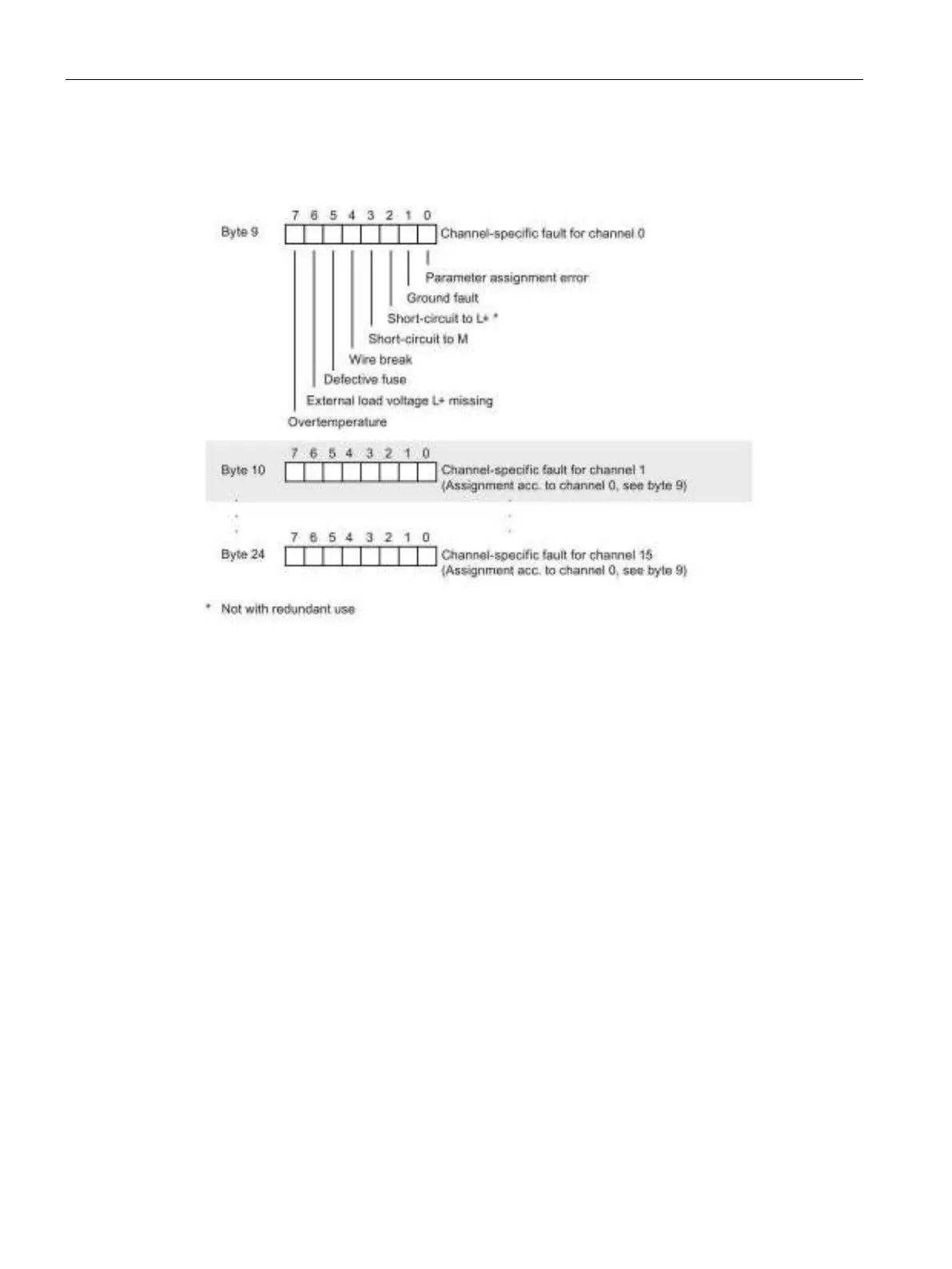

Byte 9 to byte 24 cable diagnostics (diagnostic data record 1)

Through byte 9 to byte 24 channel-specific errors are reported.
