Description of the blocks

4.3 MMOprtn block

SIMOCODE pro PCS 7 Library V9.0

Programming and Operating Manual, 06/2017, A5E40899442002A/RS-AA/001

149

⑧

Navigation button

The button to navigate to the connected motor block.

⑨

Motor status (see table)

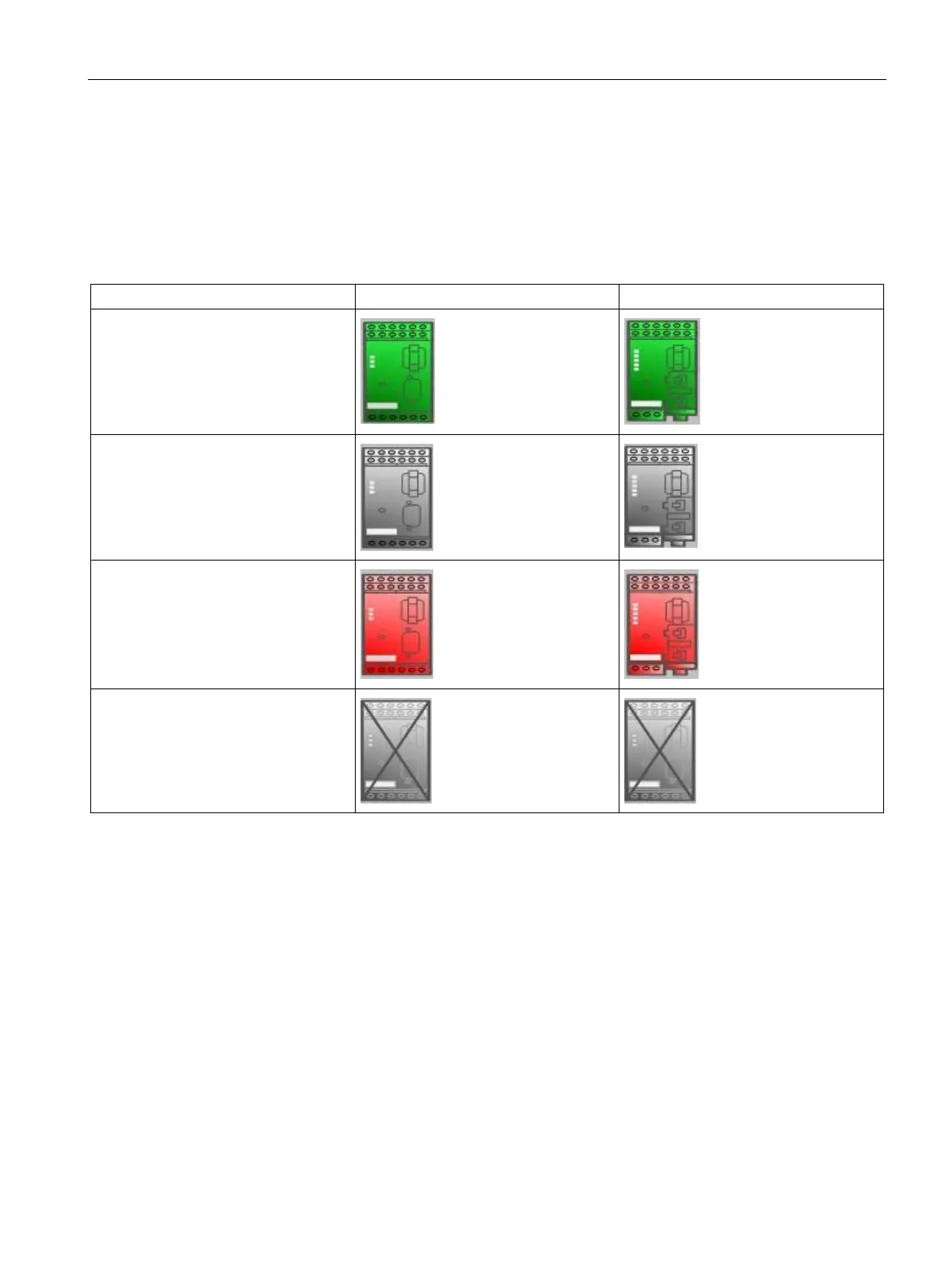

Icons for motor status ⑨

Status

PROFIBUS

PROFINET

Motor ON

Motor OFF

Error

Oos

Table of Contents4
SIMOCODE Pro PCS 7 Library V9.0 Programming and Operating Manual, 06/2017, A5E40899442002A/RS-AA/0019
Introduction10
- Security Information10
- Product Specific Security Information10
- Components of the Software Package11
- Supported Control Functions12
- Configuration Steps14
- Configuring in HW Config14
- Configuring in CFC16
- Driver Generator17
- Requirements for Generating the Module Drivers19
- Driver Blocks20
- Object Lists and Action Lists20
- Example Configurations21
- SIMOCODE Pro PROFIBUS and PROFINET Configuration21
- SIMOCODE Pro PROFIBUS Configuration21
- SIMOCODE Pro PROFINET Configuration24
- Parameterization Softwares32
- Configuring in SIMOCODE es32
- Parameter Settings34
- Configuration with SIMATIC PDM35
- Device Type Selection in HW Config35
- Configuring of the Fail-Safe, Digital Profisafe Module36
- Update an Existing PCS 7 Project37
- Further Documentation37
Templates38
- Overview of the Templates, Control Functions and Blocks38
- Using Templates39
- Template Ovlrly42
- Template Direct43
- Template Reverse44
- Template MCCB45
- Template Stardel46
- Template Revstardel47
- Template Dahland48
- Template Revdahl49
- Template Polechng50
- Template Revpolech51
- Template Solvalve52
- Template Positner53
- Template Softstr54
- Template Revsoftstr55
- Sample Project55
Block Icons and Faceplate Views56
- Block Icons56
- Faceplates58
- Faceplates - Structure58
- Navigation between SIMOCODE Pro Faceplates61
- Views62
- Batch View62
- Trend View63
- Alarm View65
- Memo View66
- Preview View67
- Scalable Faceplates67
- Central Color Management69
- Web Navigator70
- APL Operator Trend Control (AOTC) for Digital Values71
Description of the Blocks72
- Functions for All Blocks72
- Calling Obs72
- Called Blocks73
- Worst Signal Status74
- Quality Code75
- Error Numbers77
- Reading and Writing Data Records78
- Read Record Error Status79
- Write Record Error Status79
- Overview of the Measuring Point Browser Window79
- Configurable Response Using the Feature I/O80
- Start-Up Characteristics80
- Response for out of Service Mode81
- Resets the Commands for Switching between Modes81
- Enabling Resetting of Commands for the Control Settings82
- Setting Switch or Button Mode82
- Set Switching Mode83
- Enabling Direct Changeover between Forward and Reverse83
- Resetting Via Input Signals in the Event of Interlocking (Protection) or Errors84
- Exit Local Mode84
- Enable Runtime for Feedback Signals84
- Separate Monitoring Time for Stopping the Motor85
- Enabling Rapid Stop Via Faceplate85
- Activate Bumpless Changeover to Automatic Mode85
- Activate Fault Status for External Control System Fault86
- Reset Even in Locked State86
- Disable Feedback Tracking Localsetting 2 & 486
- Bumpless Switchover to Automatic Mode87
- Update Acknowledgement and Error Status of the Alarm87
- Activate Local Operator Permission87
- Suppression of All Messages88
- Interlock Display with Localsetting 2 or 488
- Define Reset as a Function of the Mode88
- Enable Reset of Interlocks in Manual Mode90
- Suppression of Single Alarm Message91
- Resetting Control in Case of Invalid Command91
- Setting Switch or Button Mode for Local Commands91
- Evaluation of the Signal Status of the Interlock Signals92
- Forcing Operating Modes in the "Local" Mode93
- Considering Bad Quality of Automatic Commands or External Values93
- Separate Interlock for each Direction or Position93
- Diagnostics Block Mmdiag94
- Description of Mmdiag94
- Acyclic Reading of Data Record 9295
- Message Characteristics95
- Driver Generator96
- Start-Up Characteristics97
- Module Error97
- IO Station Failure (PROFIBUS DP or PROFINET IO)98
- Failure of a PROFIBUS DP Station99
- Malfunction When Loading the ob99
- Mmoprtn Block100
- Description of Mmoprtn100
- Parameterizable Functions Via the Feature Connection Mmoprtn101
- Operating Modes102
- Motor Current103
- Device Functions103
- Current Limits106
- Hysteresis107
- Emergency Start107
- Self-Test108
- Trip Reset109
- Group Fault109
- Fault Handling110
- Invalid Input Signals110
- Message Characteristics110
- Messages Via Event16Ts Message Block111
- System Text Libraries for Warning and Trip113
- Process Images for the Mmoprtn Block116
- Enabled Operations130
- Status Information131
- SIMOCODE Pro Slave Diagnostics132
Diagnostics Information133
Assignment of the Diagnostics Information140
Faceplate Views148
Mmoprtn - Standard148
Mmoprtn - Limits150
Mmoprtn - Diagnostics152
Mmoprtn - Process Image153
Block for Mmmeas Measured Value Function154
Description of Mmmeas154
Parameterizable Functions Via the Feature Connection Mmmeas155
Operating Modes155
Measured Values156
Read Measured Values158
Assignment of the Cyclic Process Image159
Write Analog Output160
Acyclic Reading160
Message Characteristics161
Start-Up Characteristics162
Status Information163
Enabled Operations164
Faceplate Views165
Mmmeas Standard165
Mmmeas - Standard 1166
Mmmeas - Standard 2167
Mmmeas - Standard 3169
Mmmeas - Standard 4170
Block for Statistical Function Mmstat172
Description of Mmstat172
Parameterizable Functions Via the Feature Connection Mmstat173
Operating Modes173
Statistical Values173
Message Characteristics175
Start-Up Characteristics176
Status Information177
Enabled Operations178
Faceplate Views179
Mmstat - Standard 1179
Mmstat - Standard 2181
Block for Timestamping Mmlog183
Description Mmlog183
Parameterizable Functions Via the Feature Connection Mmlog184
Operating Modes184
Logbook Function185
Messages188
Signaling Response190
Driver Generator192
Start-Up Characteristics192
Status Information192
Enabled Operations194
Faceplate Views194
Mmlog - Standard194
- Mmlog - Logbook195
- Mmrevdhl Motor Block197
- Application197
- Description of Mmrevdhl197
- Operating Modes198
- Mode Changeover Error200
- Forcing Operating Modes201
- Control Functions for Directions202
- Parameterizable Functions Via the Feature Connection Mmrevdhl203
- Output Signal for Ready to Start204
- Resetting of the Block204
- Limit Value Monitoring with Hysteresis205
- Rapid Stop205
- Specify Warning Times for Controls205
- Issuing Maintenance Release206
- Suppressing Messages Using the Msglock Parameter206
- Simulation206
- Monitoring Functions207
- Motor Protection209
- Interlocking209
- Disabling Interlocks212
- Group Fault212
- User-Defined Auxiliary Values and User-Defined Status213
- Message Characteristics213
- Fault Handling216
- Invalid Input Signals216
- Enable for Measurement and Statistics216
- Enabled Operations216
- Status Information218
- Time221
- Restart Lock after Changing Direction of Rotation or Switching off the Motor Using Idle Time221
- Selecting a Unit of Measure222
- Faceplate Views223
- Mmrevdhl - Standard223
- Mmrevdhl - Maintenance225
- Mmrevdhl - Preview227
Maintenance Station230
Parameter234
- Mmdiag Block Parameter234
- A.1 Mmdiag Block Parameter234
- Structure of Udts for Mmdiag237
- Block Parameter Mmoprtn244
- Block Parameter Mmmeas252
- Block Parameter Mmstat260
- Block Parameter Mmlog267
- Block Parameter Mmrevdhl273
  - Technical Data283
