Siemens SIMOCODE pro PCS 7 User Manual

Block icons and faceplate views
3.5 APL Operator Trend Control (AOTC) for Digital Values
SIMOCODE pro PCS 7 Library V9.0
Programming and Operating Manual, 06/2017, A5E40899442002A/RS-AA/001
71
3.5
APL Operator Trend Control (AOTC) for Digital Values
Opening the AOTC window
Press and hold the Ctrl key and left-click the value on the block icon to open the AOTC
window. Status of parameters (FbkFFwdOut, FbkFwdOut, FbkFRevOut and FbkRevOut) are
added to the Trend Control and the detailed information is displayed in the each row of the
overview area
.

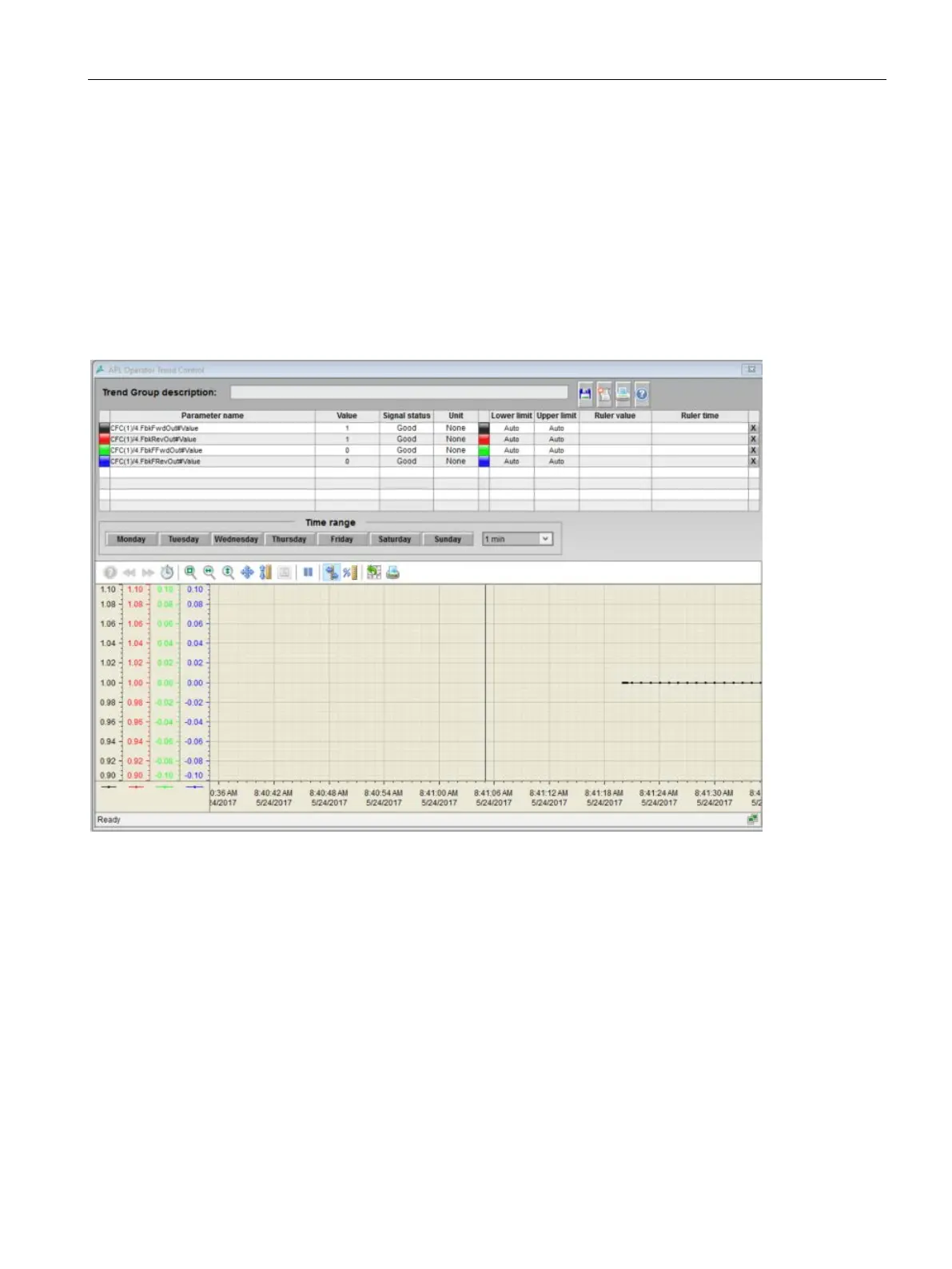

Figure 3-9 AOTC window
For more information on Operator Trend Control (AOTC)
