Block icons and faceplate views
3.2 Faceplates
SIMOCODE pro PCS 7 Library V9.0
62 Programming and Operating Manual, 06/2017, A5E40899442002A/RS-AA/001
3.2.3 Views
3.2.3.1 Batch view
The "Batch" view is available in the MMRevDhl, MMOprtn, MMStat, MMMeas and MMLog
blocks.

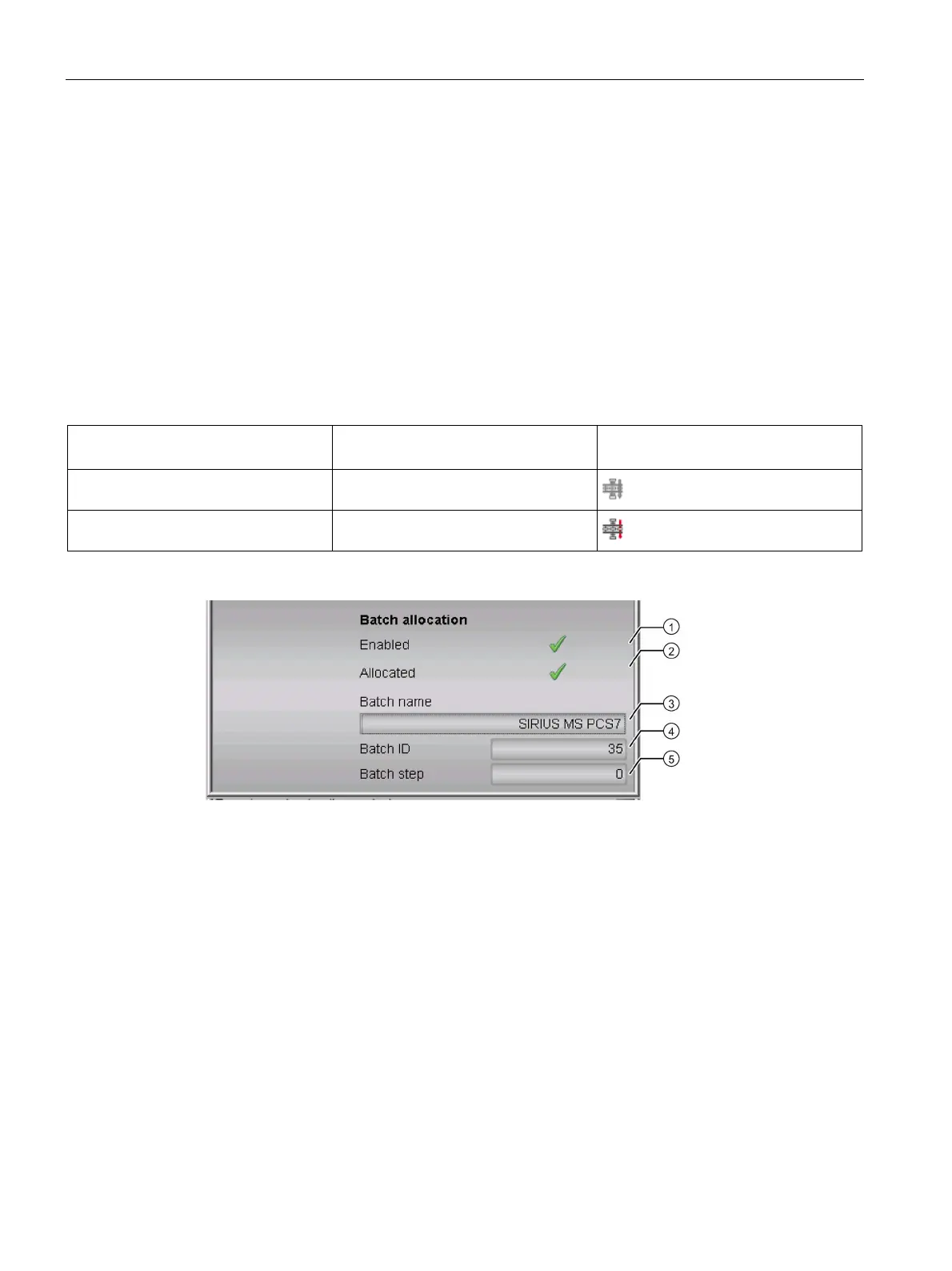

Batch view
This area shows a display of the batch that is currently running (Batchview).
You can use the internal tag "@APLBatchEnable" to enable/disable the "Batch" button in the
toolbar.
Value of @APLBatchEnable Operating the "Batch" button in the
toolbar
Icon of the "Batch" button in the toolbar
0 Disabled
1* Enabled
*Batch ID has to be greater than 0 for Batch to be enabled.
① Enabled
(BatchEn)
This area shows you if the block is enabled for operation via SIMATIC BATCH
(Status1.Bit1)
② Allocated
(Occupied)
This area shows if the block is currently in use by SIMATIC BATCH
(Status1.Bit0)
③ Batch name
(BatchName)
This area shows the name of the batch that is currently running
④ Batch ID
(BatchID)
This area shows the identification number of the batch that is currently running
(BatchID).
The batch view is disabled if
BatchID = 16#00000000.
⑤ Batch step
(StepNo)
This area shows the step number of the batch that is currently running.
