Block icons and faceplate views
3.2 Faceplates
SIMOCODE pro PCS 7 Library V9.0
Programming and Operating Manual, 06/2017, A5E40899442002A/RS-AA/001
63
3.2.3.2 Trend view
The "Trend" view is available in the MMRevDhl, MMOprtn and MMMeas blocks.

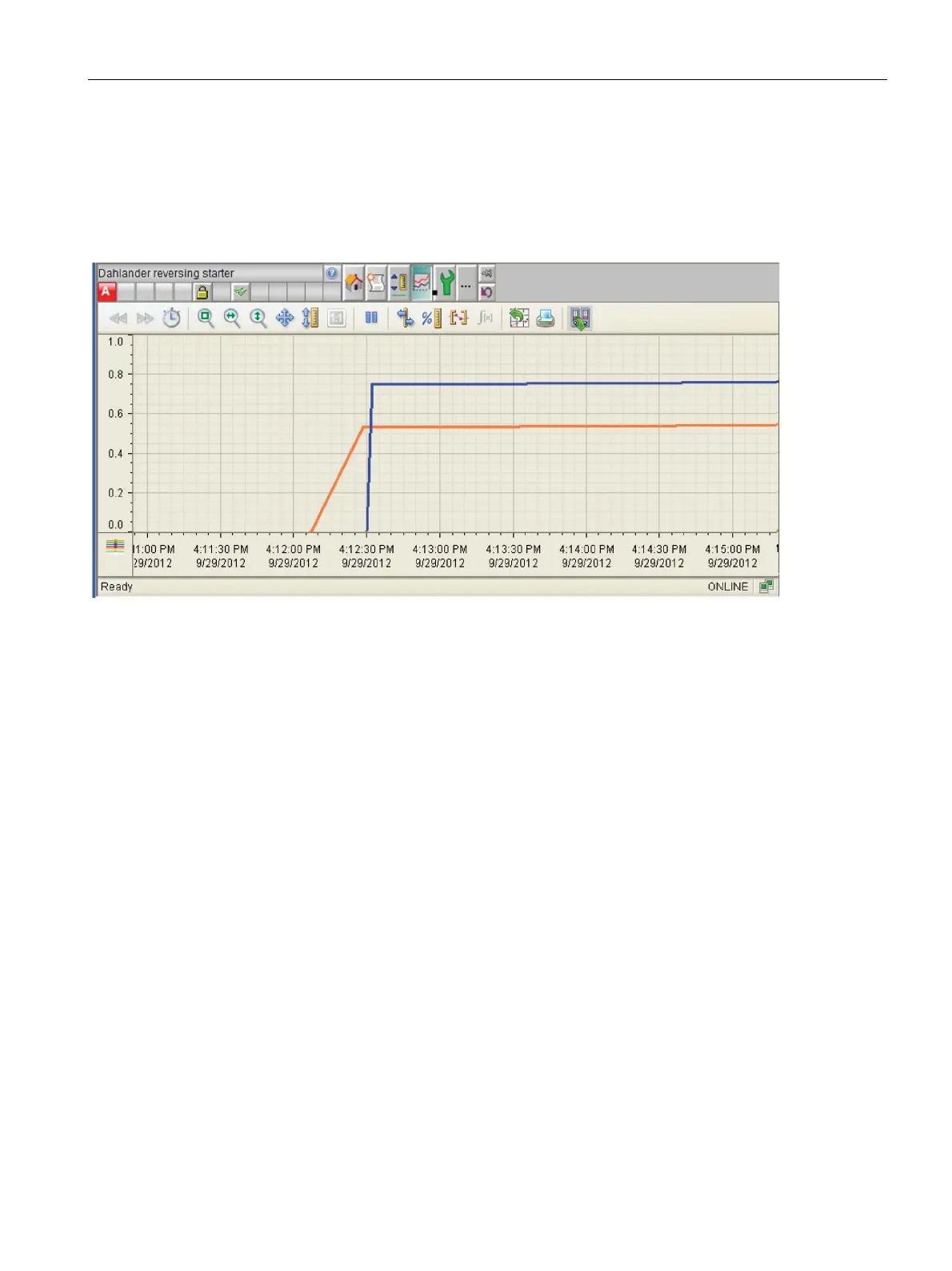

Trend view
Configuring the view
The block parameters that are evaluated for the trend are configured in the block icon of the
block.
To configure the view, use the TrendPictureName, TrendConfiguration and Trend colour
properties. Up to 10 parameters can be used for the view.
1. The file name TrendPictureName for MMOprtn and MMMeas is: "@PG_APL_Trend.PDL",
for MMRevDhl "@PG_APL_Trendbin.PDL".
2. TrendConfiguration is entered in the following format:
<ParameterName>;<TrendControl>;<Reserved>;<Name of the Curve>
e.g. MotCurr#Value;_TrendCtrl1_;Reserved;MotorCurrent
3. Trend colour determines the color of the curve.
