Description of the blocks
4.3 MMOprtn block
SIMOCODE pro PCS 7 Library V9.0
148 Programming and Operating Manual, 06/2017, A5E40899442002A/RS-AA/001
MMOprtn - Standard

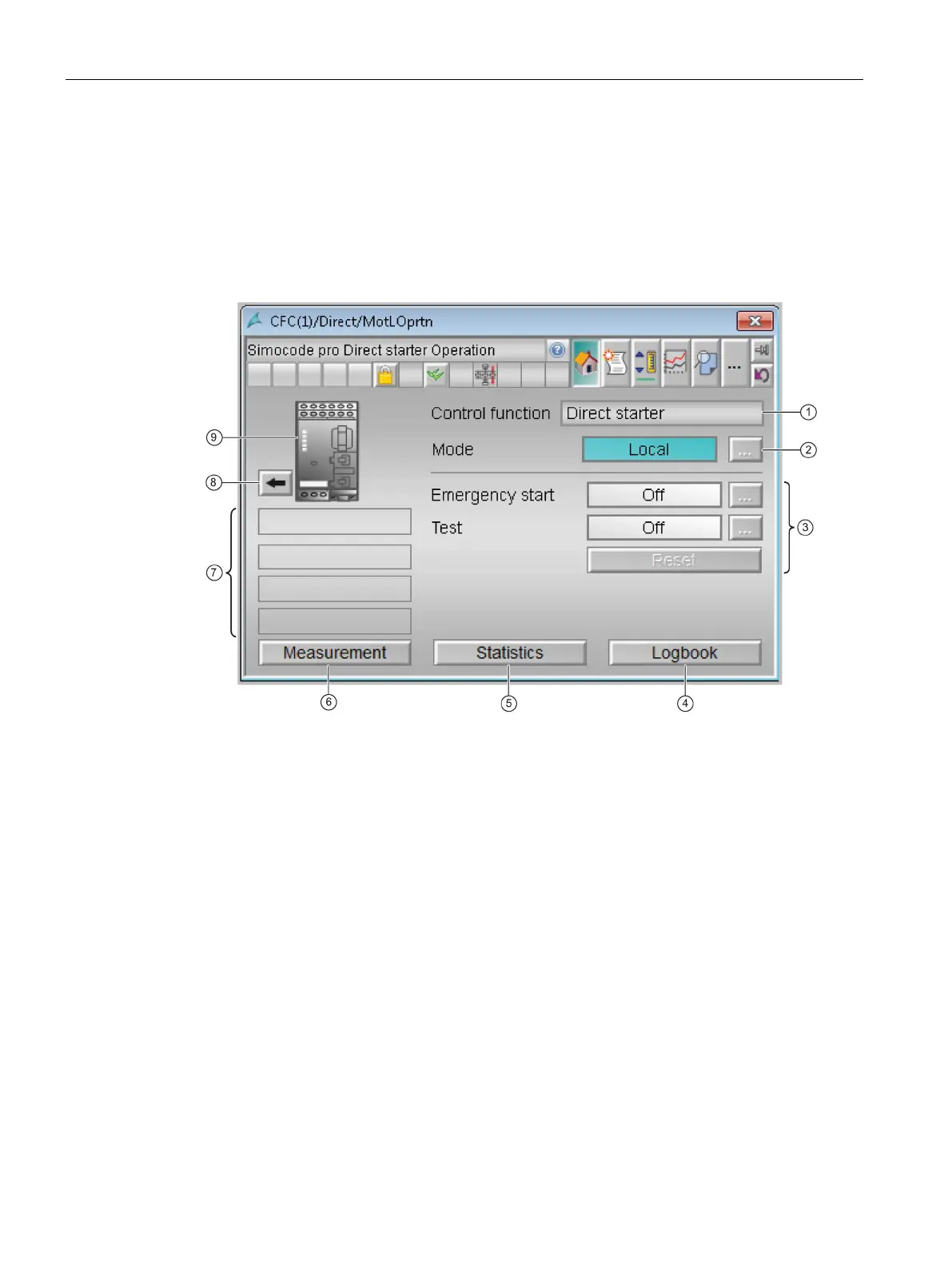

Standard view
Display of the control function
Button for changing the operating mode (AutoModOp, ManModOp, LocalOp, OosOp); opens
the expanded command range
• for emergency start
• for testing
• for resetting the trip (TrpRstOp)
The buttons open the expanded command area; authorization level 5 and higher.
Button for switching to the standard view of a faceplate for representing the logbook values
(MMLog); visible if the Selfp1 input parameter of the MMOprtn block is configured.
Button for switching to the standard view of a faceplate for representing the statistical values
(MMStat); visible if the Selfp2 input parameter of the MMOprtn block is configured.
Button for switching to the standard view of a faceplate for representing the measured values
(MMMeas); visible if the Selfp1 input parameter of the MMOprtn block is configured.
Status displays of the block:
• Test position
• Invalid signal
• Rack fault
• Group error
