Description of the blocks

4.4 Block for MMMeas measured value function

SIMOCODE pro PCS 7 Library V9.0

Programming and Operating Manual, 06/2017, A5E40899442002A/RS-AA/001

165

4.4.9

Faceplate views

4.4.9.1

MMMeas Standard

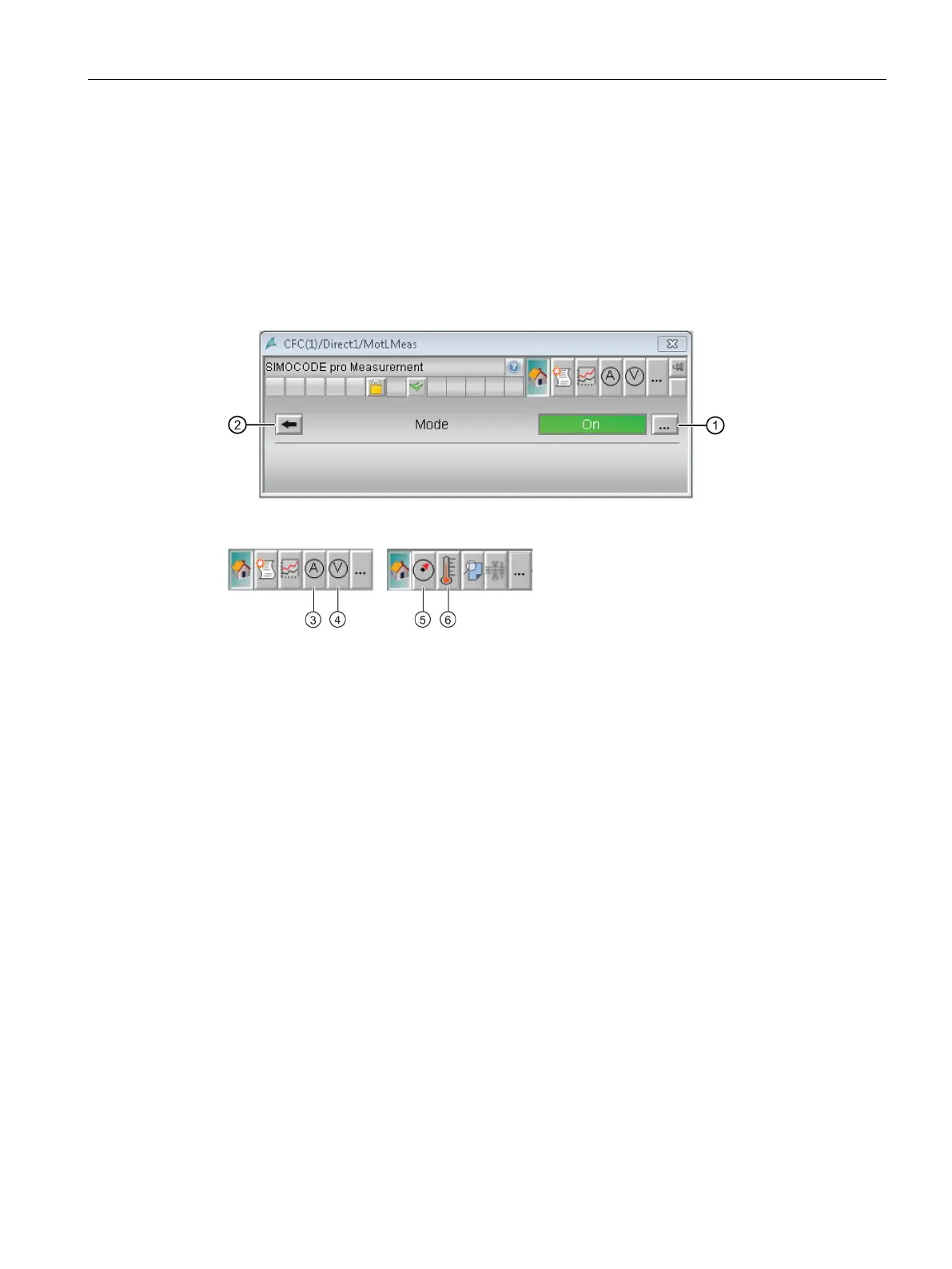

Standard view

①

Display of the operating mode

②

Navigation button:

Navigation to the connected MMOperation block.

③

Current measurement values

④

Voltage measurement values

⑤

Analog measurement values

⑥

Temperature/Earth Fault measurement values
