Description of the blocks
4.3 MMOprtn block
SIMOCODE pro PCS 7 Library V9.0
Programming and Operating Manual, 06/2017, A5E40899442002A/RS-AA/001
153
The Process image view displays the values for the process image inputs (PII) and the
process image outputs (PIO). Which inputs and outputs are displayed depends on the
control function selected.

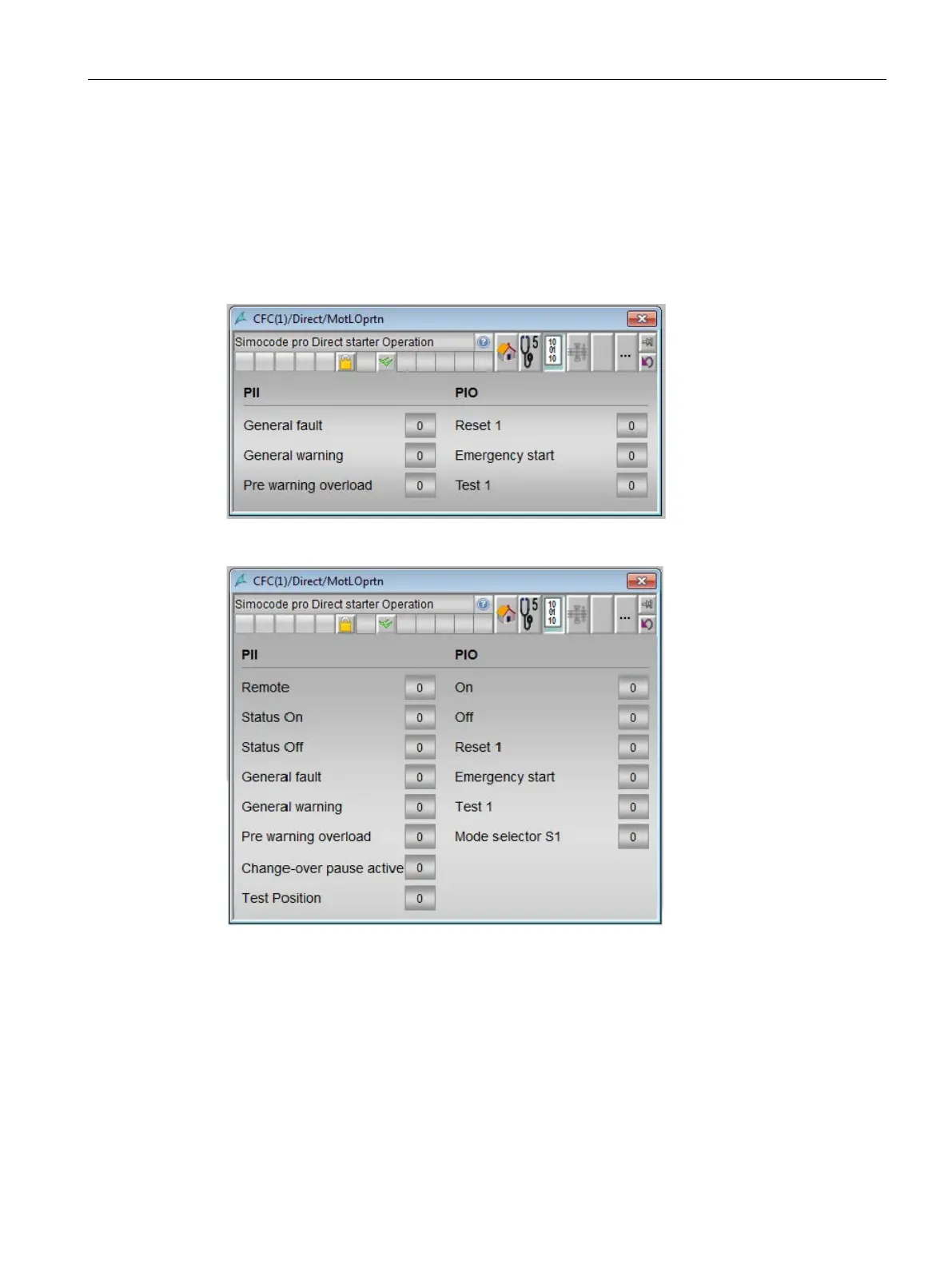

Figure 4-2 Process image view – example of overload relay
Figure 4-3 Process image view – example of direct-on-line starter
Process images for the MMOprtn block (Page 116)
