Siemens SIMOCODE pro PCS 7 User Manual

SIMOCODE pro PCS 7 Library V9.0
230 Programming and Operating Manual, 06/2017, A5E40899442002A/RS-AA/001
Maintenance Station
5
5.1 Maintenance Station
The SIMOCODE pro Library PCS 7 V9.0 supports the function of the Maintenance Station,
via GSD, via PDM object, and via OM SIMOCODE pro.
SIMOCODE pro PROFIBUS – Maintenance Station

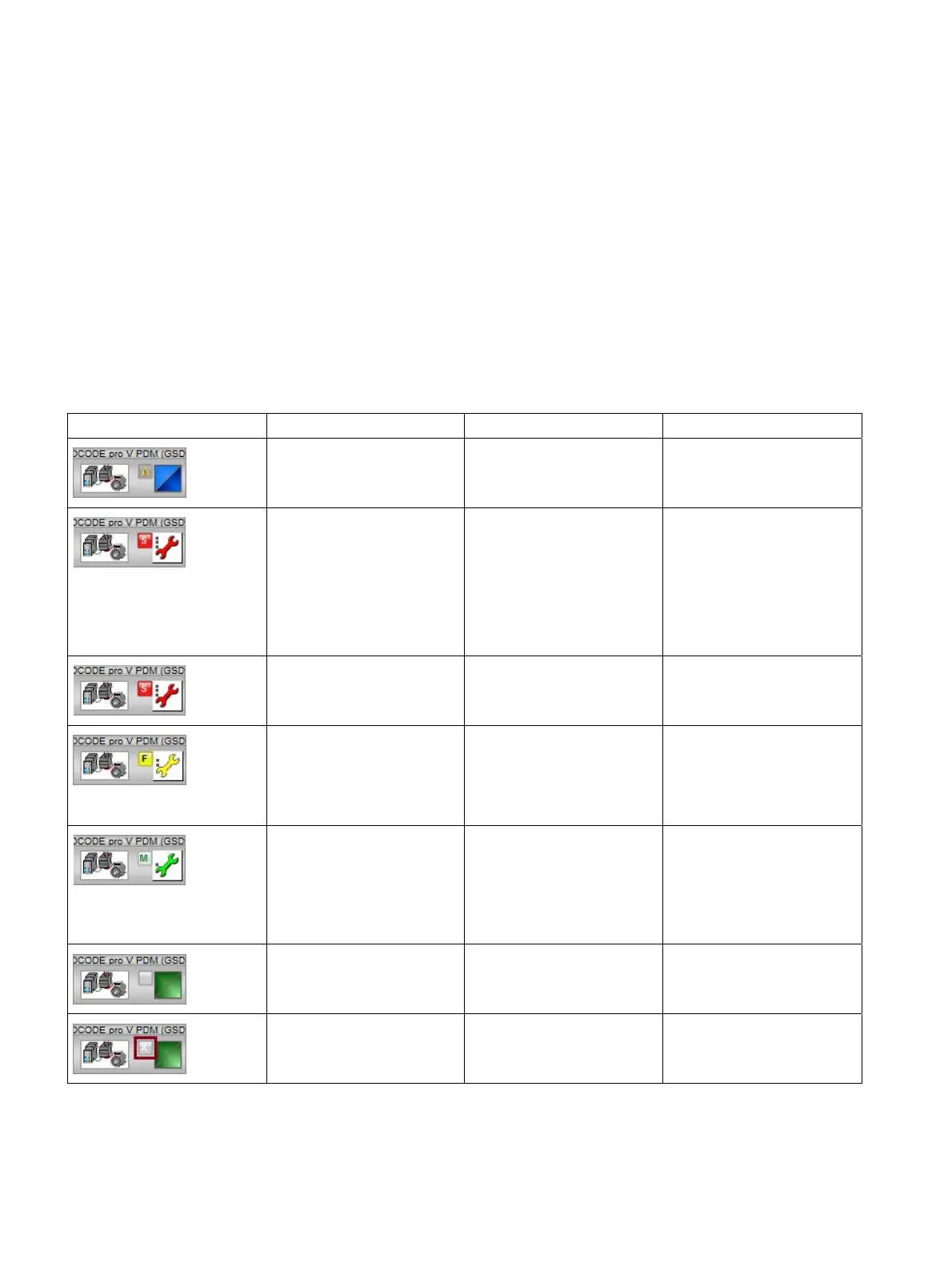

Display Remark Message Caused by
Unknown/untested - PLC in Standby
Trip Device [Subnet
No.]/[Address]: Bad,
maintenance alarm
Tripping *)
• General Fault
• Controller Fault
• Protection has tripped
• Level monitoring low/high
• Miscellaneous
Failure Device [Subnet
No.]/[Address]: Failure
Failure of PROFIBUS
connection or Rack Fault or
Module Fault
Warning Device [Subnet
No.]/[Address]: Uncertain,
maintenance demanded
Warnings *)
• Protection has tripped
• Level monitoring low/high
• Miscellaneous
Signaling Device [Subnet
No.]/[Address]: Good,
maintenance required
Status signaling *)
• Signaling by controller
• Protection has tripped
• Signaling caused by
parameterization
Good - -
Message is locked -
*) You can find the detailed information on Signaling, Warning and Tripping described for
Dataset DS 92 – Device diagnostic in system manual of SIMOCODE pro PROFIBUS.
