Siemens SINAMICS G120C Function Manual

)',LQSXWVLJQDOV
6DIHW\IXQFWLRQDFWLYH
'HERXQFHWLPH
%LWSDWWHUQWHVW
'HERXQFHWLPH
W
W

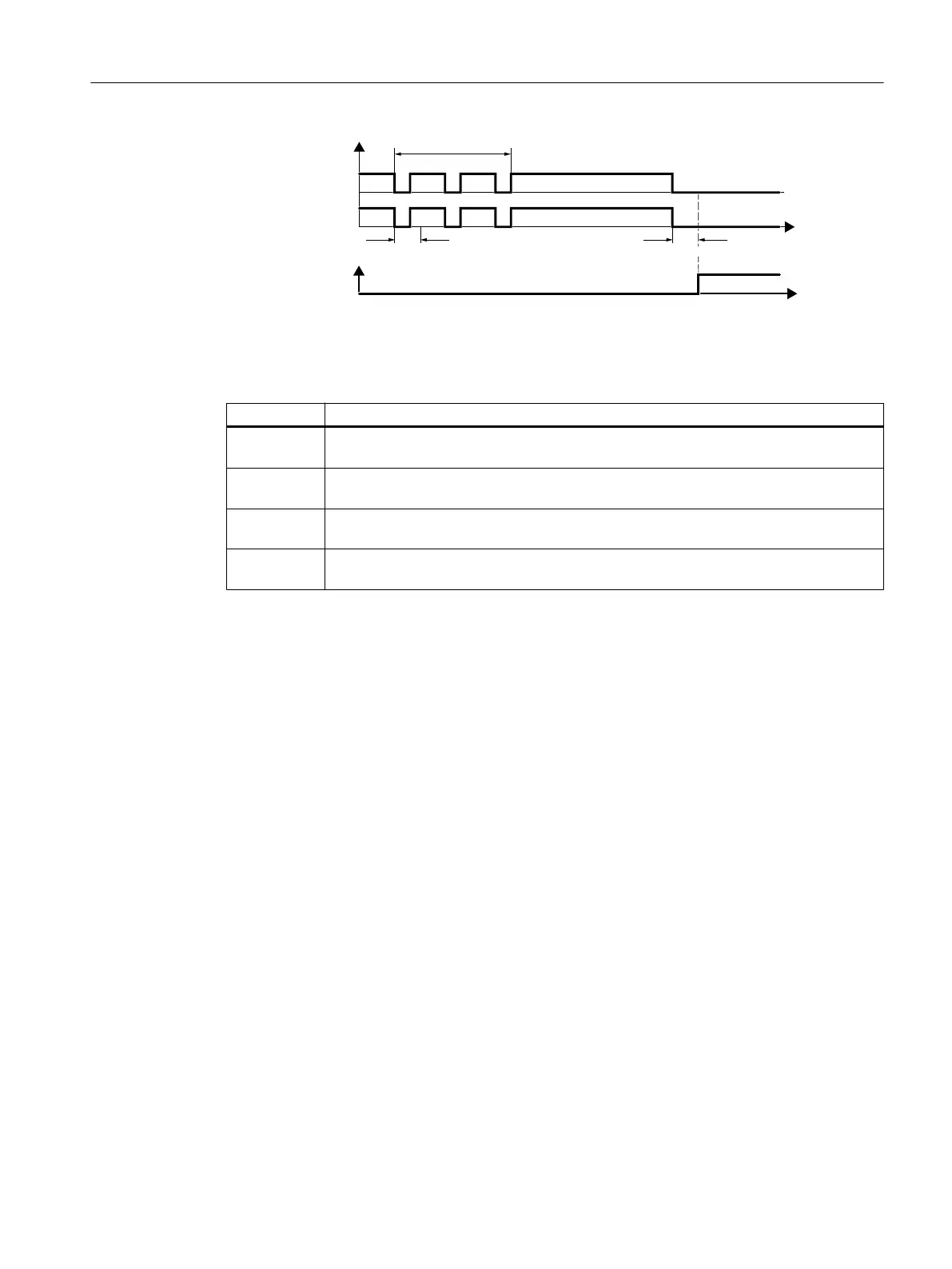

Figure 5-15 Filter to suppress brief signals
The filter extends the response time of the safety function by the debounce time.
Parameter Description
p9650 F-DI switchover discrepancy time (Factory setting: 500 ms)
Tolerance time to change over the fail-safe digital input for the basic functions.
p9651 STO debounce time (factory setting: 1 ms)
Debounce time of the fail-safe digital input for the basic functions.
p10002 F-DI switchover discrepancy time (Factory setting: 500 ms)
Tolerance time to change over the fail-safe digital inputs for the extended functions.
p10017 Digital inputs debounce time (factory setting: 1 ms)
Debounce time of the fail-safe digital inputs for the extended functions.
Debounce times for standard and safety functions
The debounce time p0724 for "standard" digital inputs has no influence on the fail-safe digital
input F-DI signals. Conversely, the same applies: The debounce time of the fail-safe digital
inputs does not affect the signals of the "standard" inputs.
If you use an input as a standard input, set the debounce time using parameter p0724 .
If you use an input as a fail-safe digital input, set the debounce time as described above.
Commissioning
5.12 Setting extended functions
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD 161

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
