Siemens SINAMICS G120C Function Manual

Procedure with Startdrive

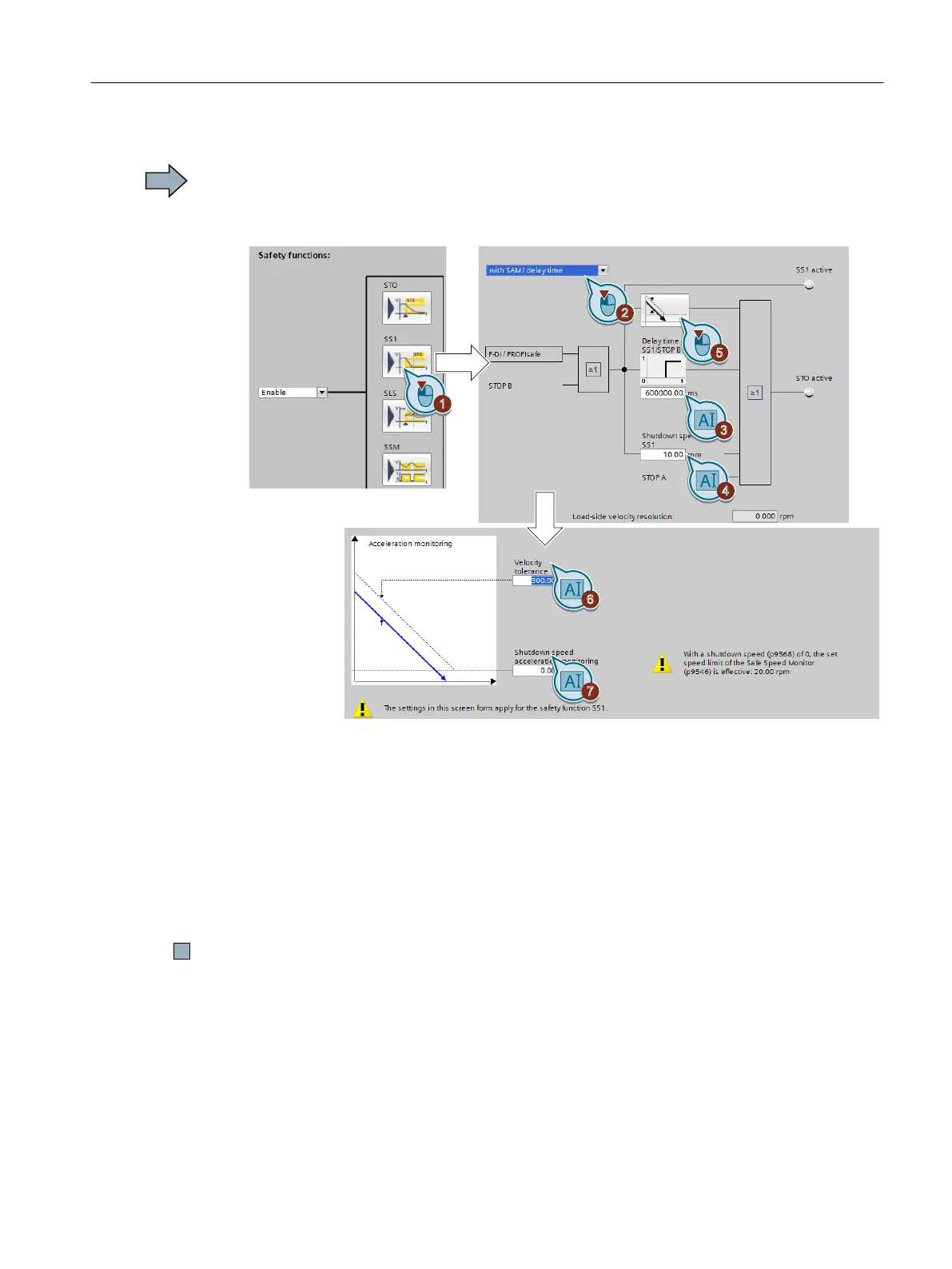

To set the SS1 function with acceleration monitoring, proceed as follows:
1. Press the button for the SS1 function.
2. Select "with SAM/delay time".







3. After the "delay time", the inverter safely switches off the motor torque – regardless of the
actual speed.
4. The "shutdown speed SS1" is a condition for the transition into the STO function.
5. Press the "SAM" button.
6. The "speed tolerance" is used to track the monitoring to the actual speed.
7. The "shutdown speed acceleration monitoring" is a condition for the transition into the STO
function.
8. Close the screen forms.
You have set the SS1 function with acceleration monitoring.


Commissioning
5.12 Setting extended functions
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD 181

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
