Siemens SINAMICS G120C Function Manual

Description: SS1 with acceleration monitoring
6KXWGRZQVSHHG
DFFHOHUDWLRQ
PRQLWRULQJ
6SHHGWROHUDQFH
6KXWGRZQVSHHG
66
'HOD\WLPH
6723%ൺ672
7KHPRWRUFRDVWV
WRDVWDQGVWLOO
6SHHG
212))
'HVHOHFW66
66DFWLYH
672DFWLYH
6$0
W
W
W
672

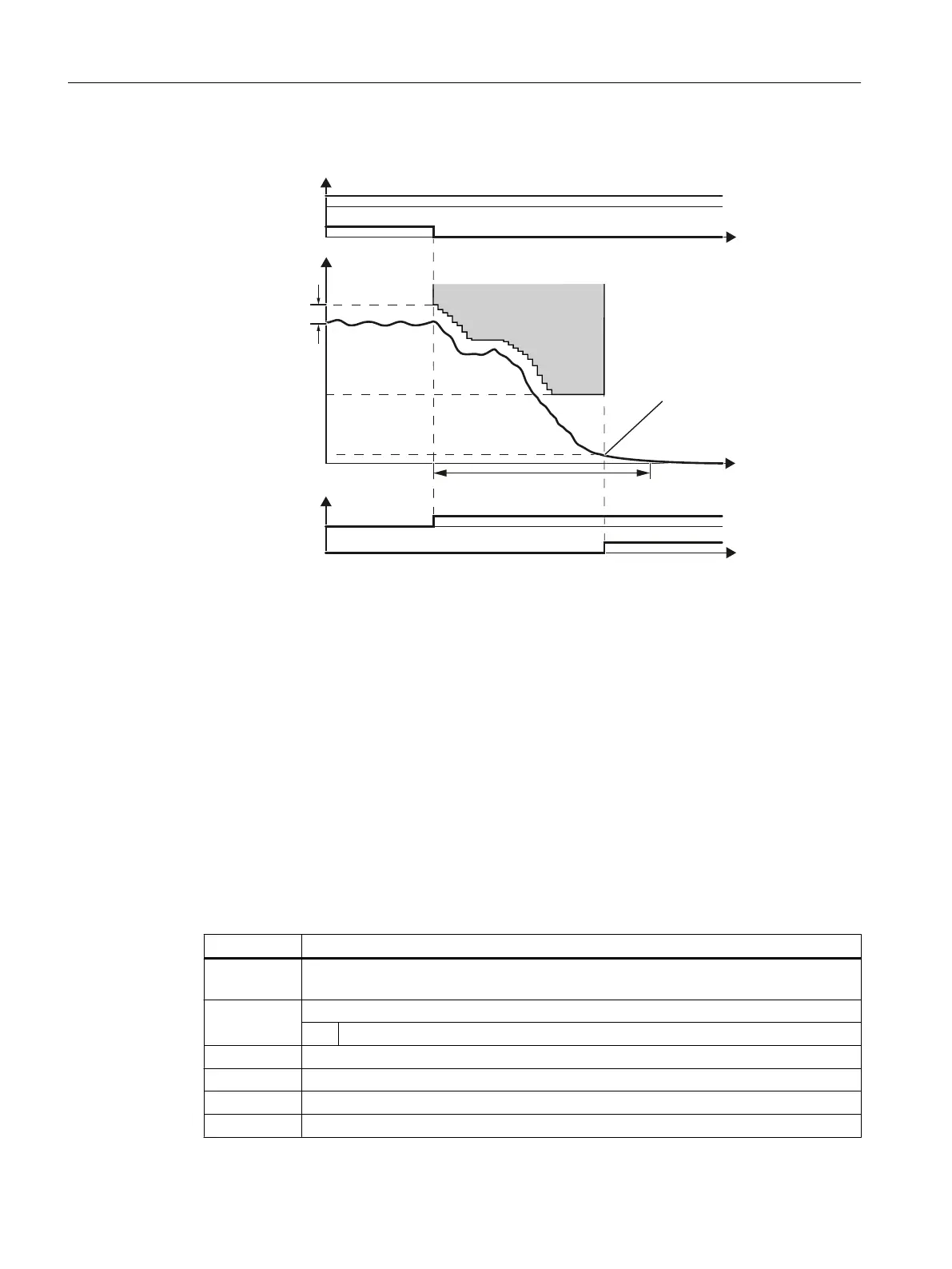

Figure 5-23 SS1 with acceleration monitoring
Speed tolerance
As long as the speed is less, the inverter continuously adds the tolerance to the actual speed
so that the monitoring tracks the speed.
Shutdown speed acceleration monitoring
The inverter reduces the monitoring threshold until it reaches the value of the "Shutdown speed
acceleration monitoring".
Shutdown speed SS1 and delay time
The inverter safely switches off the motor torque with the STO function if one of the two
conditions is fulfilled:
● The actual speed reaches the value of the shutdown speed SS1.
● The delay time has expired.
Parameter Description
p9501.00 1 signal: Enable extended functions.
0 signal: Disable extended functions.
p9506 Function specification: (Factory setting: 1)
3: With acceleration monitoring
p9548 Speed tolerance (Factory setting: 300 rpm)
p9556 Delay time STOP B → STO (Factory setting: 600000 ms)
p9560 Shutdown speed SS1 (Factory setting: 10 rpm)
p9568 Shutdown speed acceleration monitoring (Factory setting: 0 rpm)
Commissioning
5.12 Setting extended functions
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
182 Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
