Siemens SINUMERIK 840D sl Function Manual

Detailed description
2.3 Starting up hardware configuration of PLC CPUs
Basic logic functions: PLC Basic program powerline (P3 pl)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
21
Note
On the SINUMERIK 810D or 840D, SIMATIC subrack 0 is integrated in the NC. The
following components are plugged into this subrack:
- Slot 2: The integrated PLC (PLC 314 or PLC 315-2DP)
- Slot 3: An IM 360
- Slot 4: The FM NCU.
With PLC 314, NC software version 3.5 and higher, the FM NCU must also be defined if
further MPI (C bus) devices are included in subrack 1 to subrack 3 (e.g., FM modules with C
bus connection). The properties of the FM NCU must not be changed, as process interrupts
(e.g. auxiliary functions) of the NCU may, in this case, no longer function.

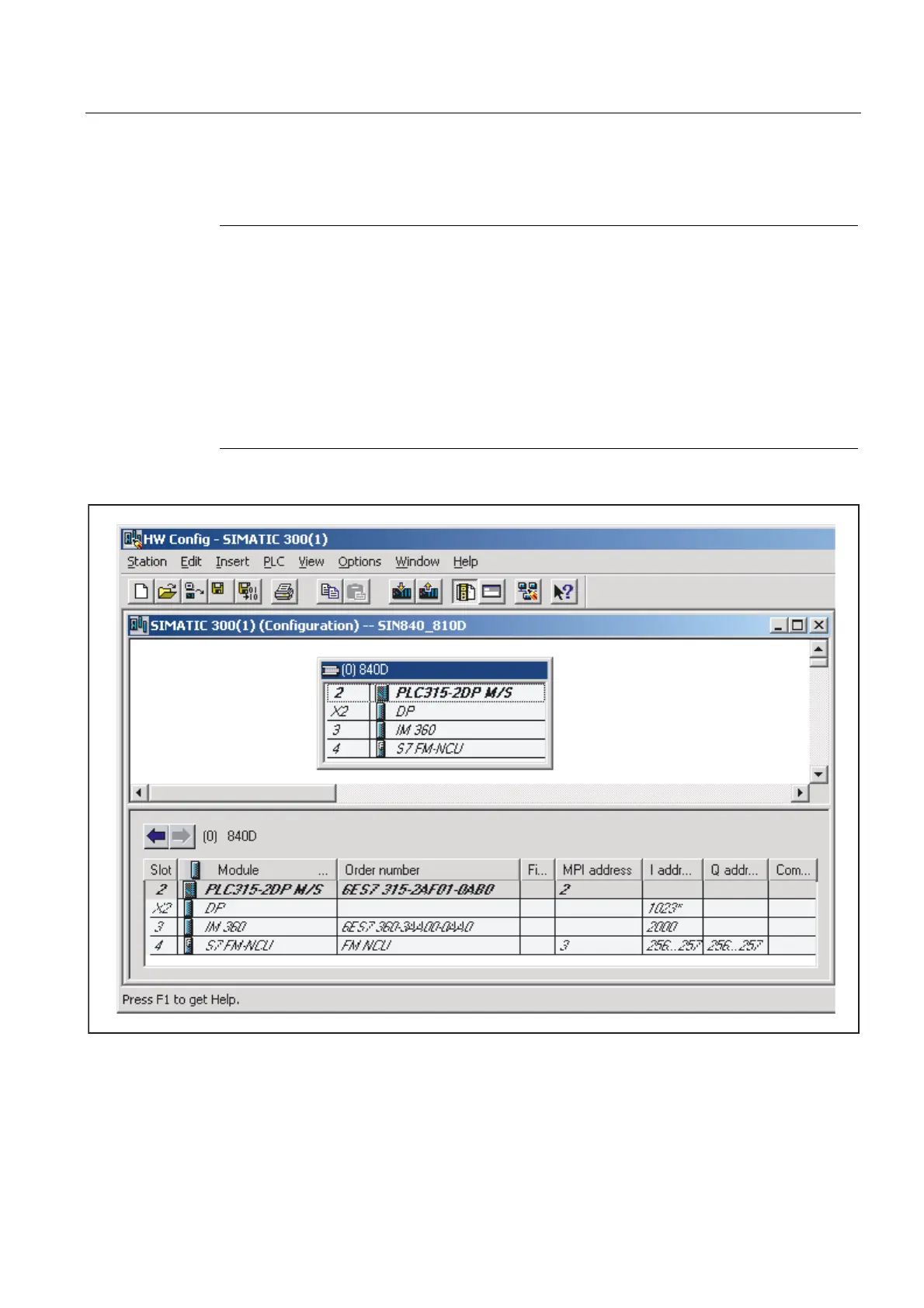

Figure 2-1 Hardware configuration of row 0 on 810D, 840D

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
