Siemens SINUMERIK 840D sl Function Manual

Detailed description
2.4 Frames
Basic logic functions: Axes, coordinate systems, frames (K2)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
55
2.4.2.3 Rotations for geometry axes
Function

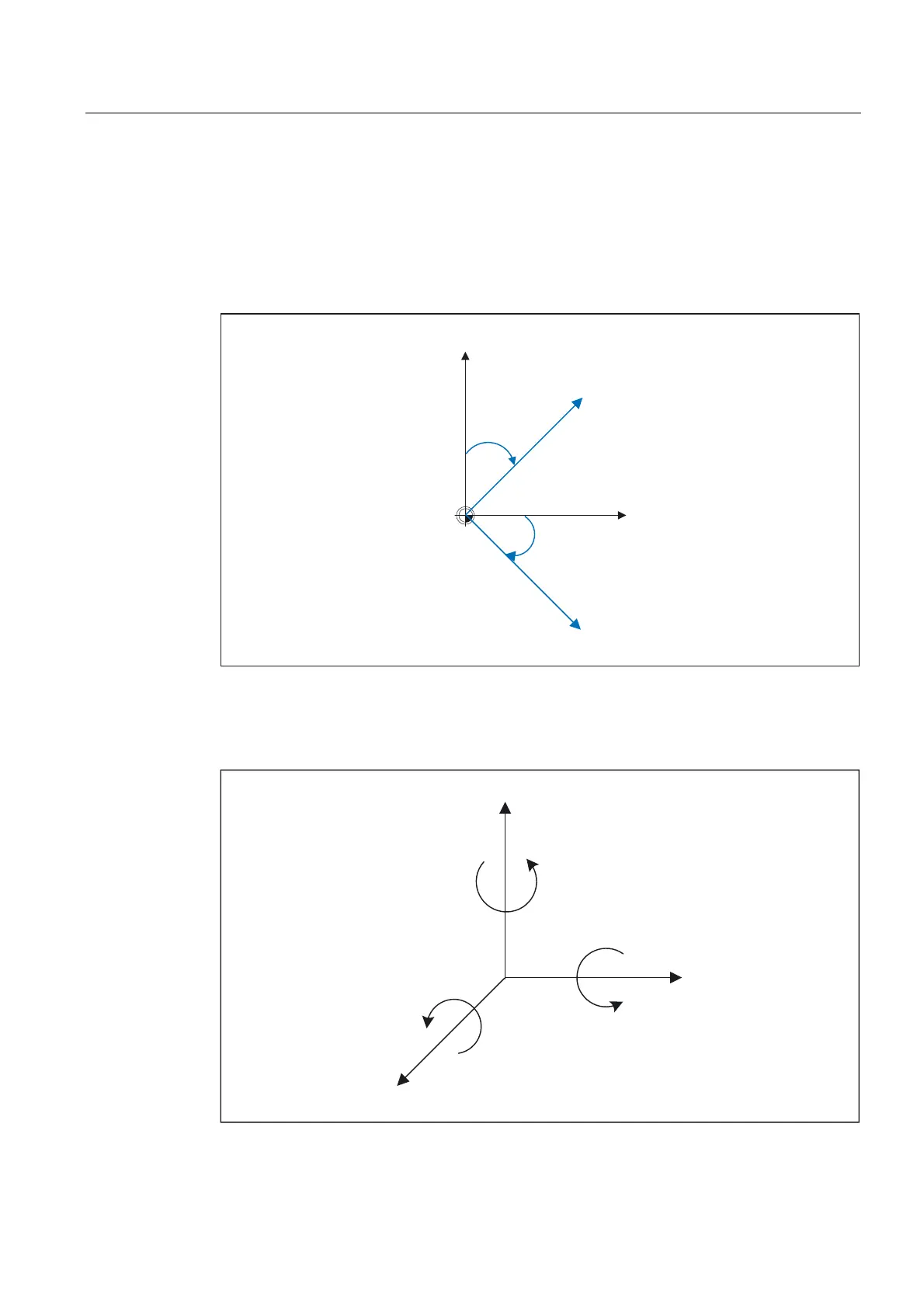

The direction of rotation about the coordinate axes is determined by means of a right-hand,
rectangular coordinate system with axes X, Y and Z.
[
[
\
\
Rotations
If the rotary motion is in a clockwise direction when looking in the positive direction of the
coordinate axis, the direction of rotation is positive. A, B and C identify rotations whose axes
are parallel to X, Y and Z.
%
$
\
[
&
]
5LJKWKDQGUHFWDQJXODU
FRRUGLQDWHV\VWHP

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
