Detailed description

2.4 Frames

Basic logic functions: Axes, coordinate systems, frames (K2)

Function Manual, 11/2006, 6FC5397-0BP10-2BA0

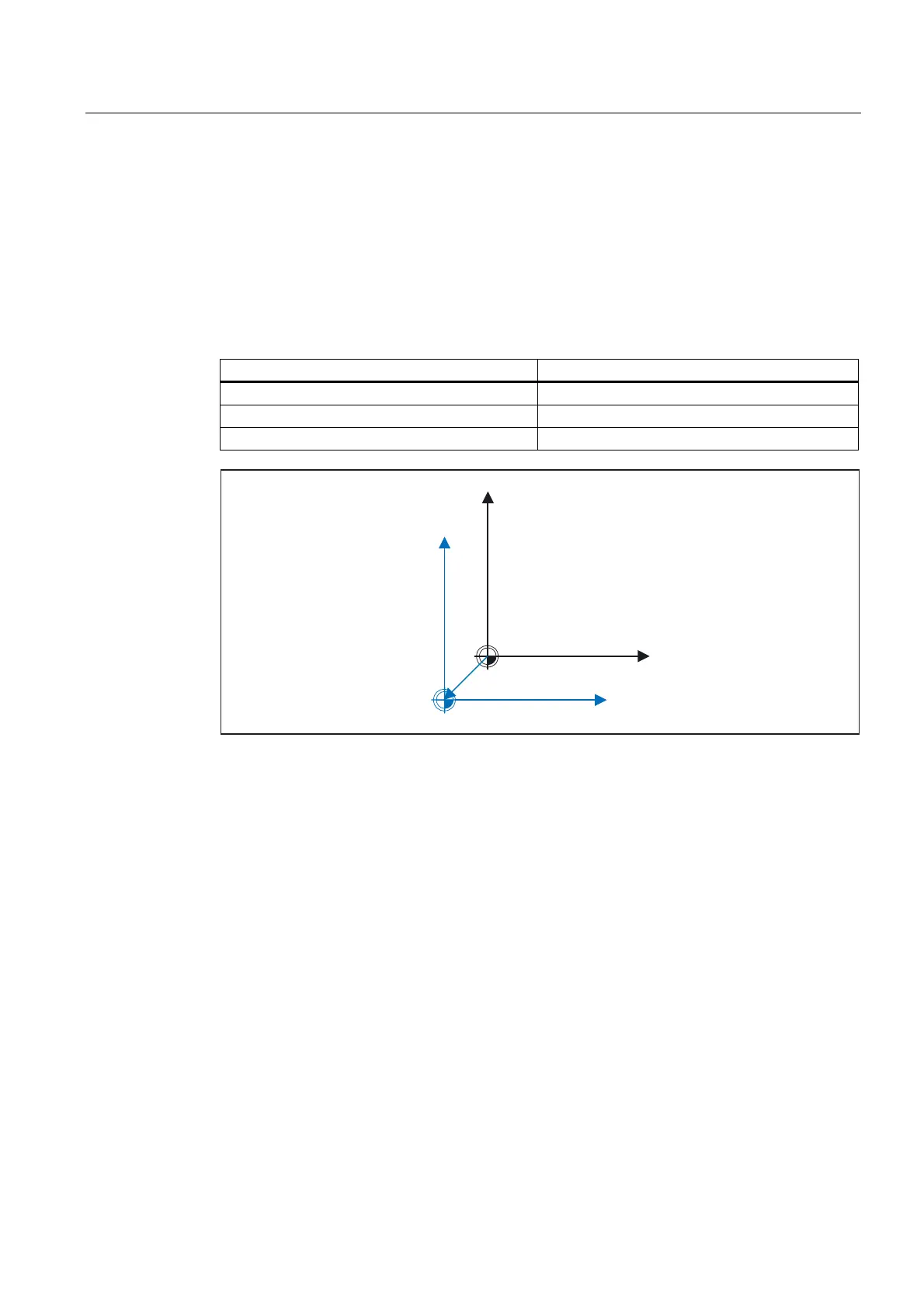

2.4.2 Frame components

2.4.2.1 Translation

Programming

The program commands below are used to program the translation:

Command Comment

$P_UIFR[1] = CTRANS(x,10,y,10)

$P_UIFR[1,x,tr] = 10

Frame components

TRANS x=10 y=10

Prog. frame only

\

[

[

7UDQVODWLRQ

)LQHRIIVHW

Function Manual - Basic Functions1
