Siemens SINUMERIK 840D sl Function Manual

Detailed description
2.3 Coordinate systems
Basic logic functions: Axes, coordinate systems, frames (K2)
38 Function Manual, 11/2006, 6FC5397-0BP10-2BA0
2.3 Coordinate systems
2.3.1 Overview
Cartesian coordinate systems
DIN 66217 stipulates that machine tools must use right-angled, rectangular (Cartesian)
coordinate systems. The positive directions of the coordainate axes are determined using
the "Right Hand Rule". The coordinate system is related to the workpiece and programming
takes place independently of whether the tool or the workpiece is being traversed. When
programming, it is always assumed that the tool traverses relative to the coordinate system
of the workpiece, which is intended to be stationary.
[
\
]

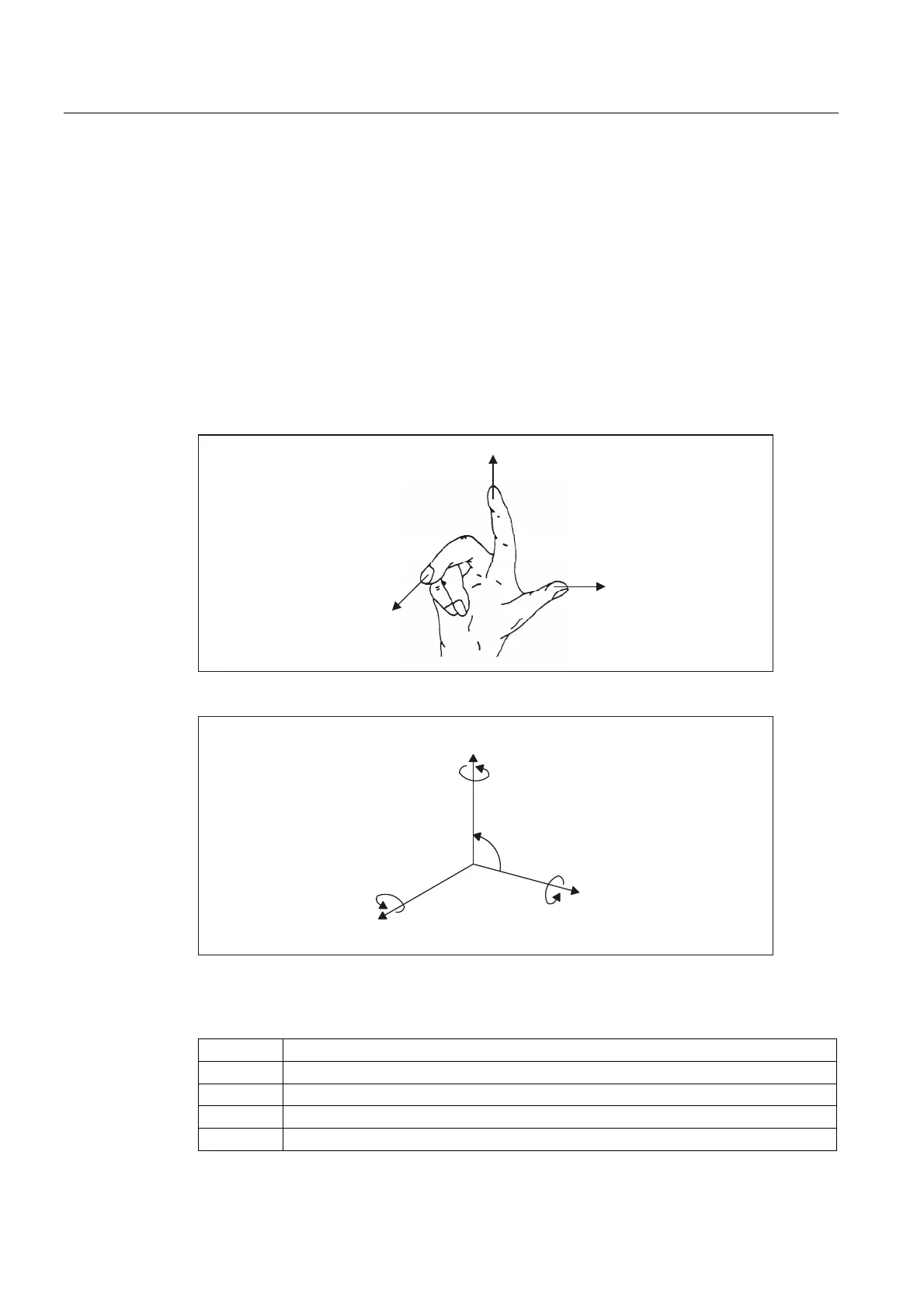

Figure 2-10 Right-hand rule
$%&
;<=
&
$
%
r
;
=
<
$[HVSHUSHQGLFXODUWR
RQHDQRWKHU
5RWDU\D[HVURWDWLQJ
DERXW;<=
Figure 2-11 Clockwise, rectangular Cartesian coordinate system
The following coordinate systems are defined:
MCS Machine Coordinat System
BCS Basic Coordinate System
BZS Basic Zero System
SZS Settable Zero System
WCS Workpiece Coordinate System

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
