Siemens SINUMERIK 840D sl Function Manual

Examples
4.2 Protection zones
Basic logic functions: Axis monitoring, protection zones (A3)
68 Function Manual, 11/2006, 6FC5397-0BP10-2BA0
4.2 Protection zones
4.2.1 Definition and activation of protection zones
Requirement
The following internal protection zones are to be defined for a turning machine:
• One machine- and workpiecerelated protection zone for the spindle chuck, without
limitation in the third dimension
• One channelspecific protection zone for the workpiece, without limitation in the third
dimension
• One channelspecific, toolrelated protection zone for the toolholder, without limitation in
the third dimension
The workpiece zero is placed on the machine zero to define the protection zone for the
workpiece.
When activated, the protection zone is then offset by 100mm in the Z axis in the positive
direction.

3
:
;
;
0










5
=
)
7RROKROGHU
'ULOO
6WDUWSRLQW
6WDUWSRLQW
3URWHFWLRQ]RQHIRU
VSLQGOHFKXFN
3URWHFWLRQ]RQH
IRUZRUNSLHFH
6WDUWSRLQW
3URWHFWLRQ]RQH
IRUWRROKROGHU

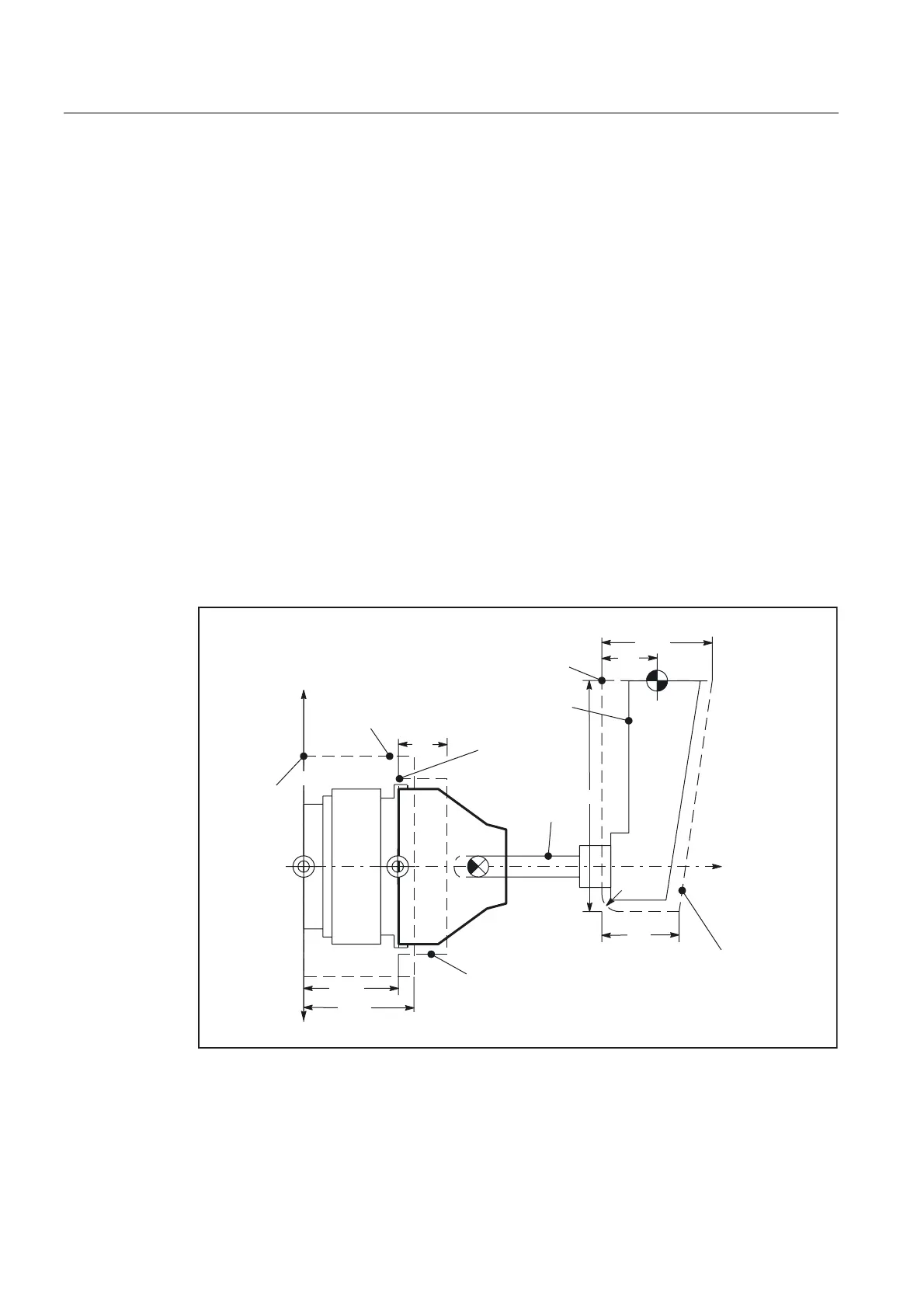

Figure 4-1 Example of protection zones on a lathe

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
