Detailed description
2.3 Coordinate systems
Basic logic functions: Axes, coordinate systems, frames (K2)
40 Function Manual, 11/2006, 6FC5397-0BP10-2BA0
2.3.2 Machine coordinate system (MCS)
Machine coordinate system (MCS)
The machine coordinate system (MCS) is made up of all physically available machine axes.
;
&
<
=

%

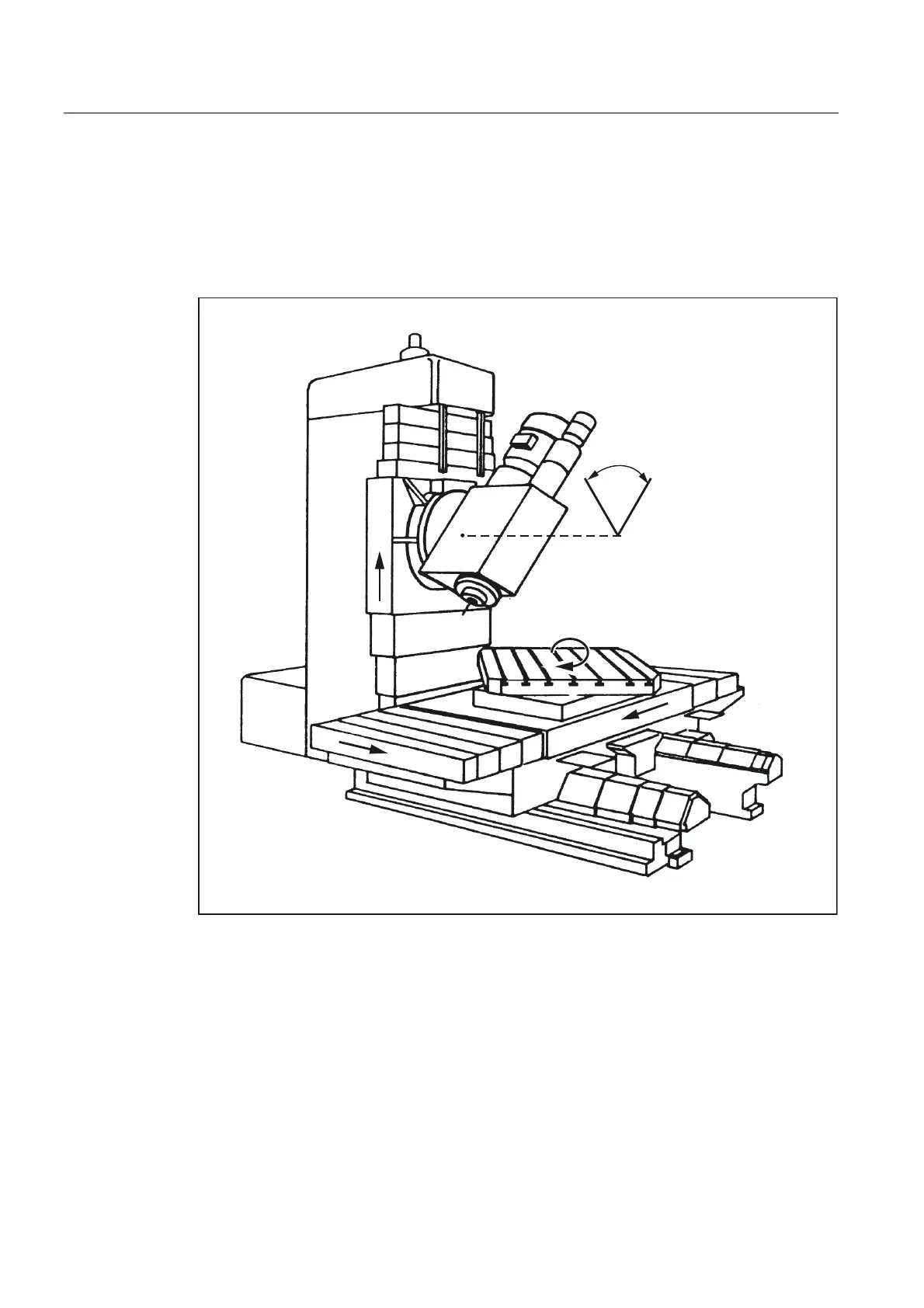

Figure 2-13 MCS with machine axes X, Y, Z, B, C (5axis milling machine)
