Siemens SINUMERIK 840D sl Function Manual

Detailed description
2.4 Referencing with incremental measurement systems
Basic logic functions: Reference Point Approach (R1)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
21
2.4.4 Phase 3: Traversing to the reference point

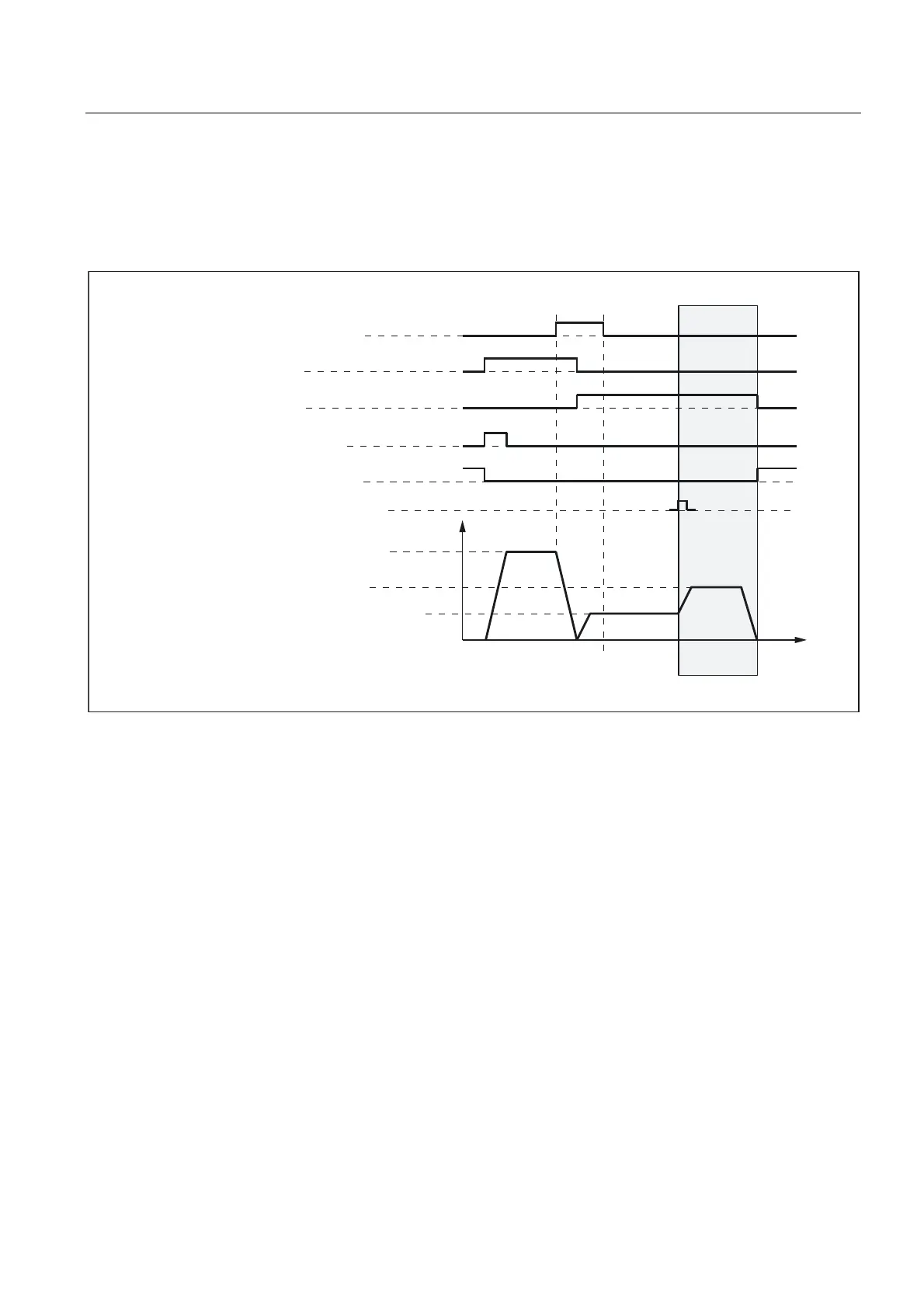

Phase 3: Graphic representation
'%'%;UHIHUHQFHSRLQWDSSURDFKGHFHOHUDWLRQ
'%'%;0RWLRQFRPPDQGSOXV
'%'%;0RWLRQFRPPDQGPLQXV
'%'%;DQGWUDYHUVLQJNH\SOXVPLQXV
'%'%;DQGUHIHUHQFHGV\QFKURQL]HG
=HURPDUNSRVLWLRQPHDVXULQJV\VWHP
9HORFLW\
5()(5(1&(32,17$3352$&+9(/2&,7<
5()(5(1&(32,17&5((39(/2&,7<
5()(5(1&(32,17326,7,219(/2&,7<
3KDVH
W
0'0$B5()3B9(/2B6($5&+B0$5.(5
0'0$B5()3B9(/2B326
0'0$B5()3B9(/2B6($5&+B&$0
Figure 2-8 Phase 3: Traversing to the reference point
Phase 3: Start
At the end of phase 2 the machine axis travels at reference point creep velocity. Therefore,
as soon as phase 2 is completed successfully without an alarm, phase 3 is started without
interruption.
Initial situation
The encoder zero mark has been detected.

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
