Siemens SINUMERIK 840D sl Function Manual

Examples
4.3 Acceleration and jerk
Basic logic functions: Acceleration (B2)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
57
4.3 Acceleration and jerk
Key statement
In the following example a short part program is used to illustrate the velocity and
acceleration characteristic for the X-axis. It also shows the connection between specific
velocity and acceleration-related machine data and the contour sections they influence.
Part program
N90 F5000 SOFT G64
; Continuous-path mode, acceleration with jerk limitation
N100 G0 X0 Y0 Z0
; Rapid traverse
N110 G1 X10
;Straight line
N120 G3 CR=5 X15 Y5
; Circular arc, radius 5 mm, block transition: tangential
N130 G3 CR=10 X5 Y15
; Circular arc, radius 10 mm, block transition: tangential
N140 G1 X-5 Y17.679
; straight, 15
o
bend
N200 M30




\
[


1
1
1
1

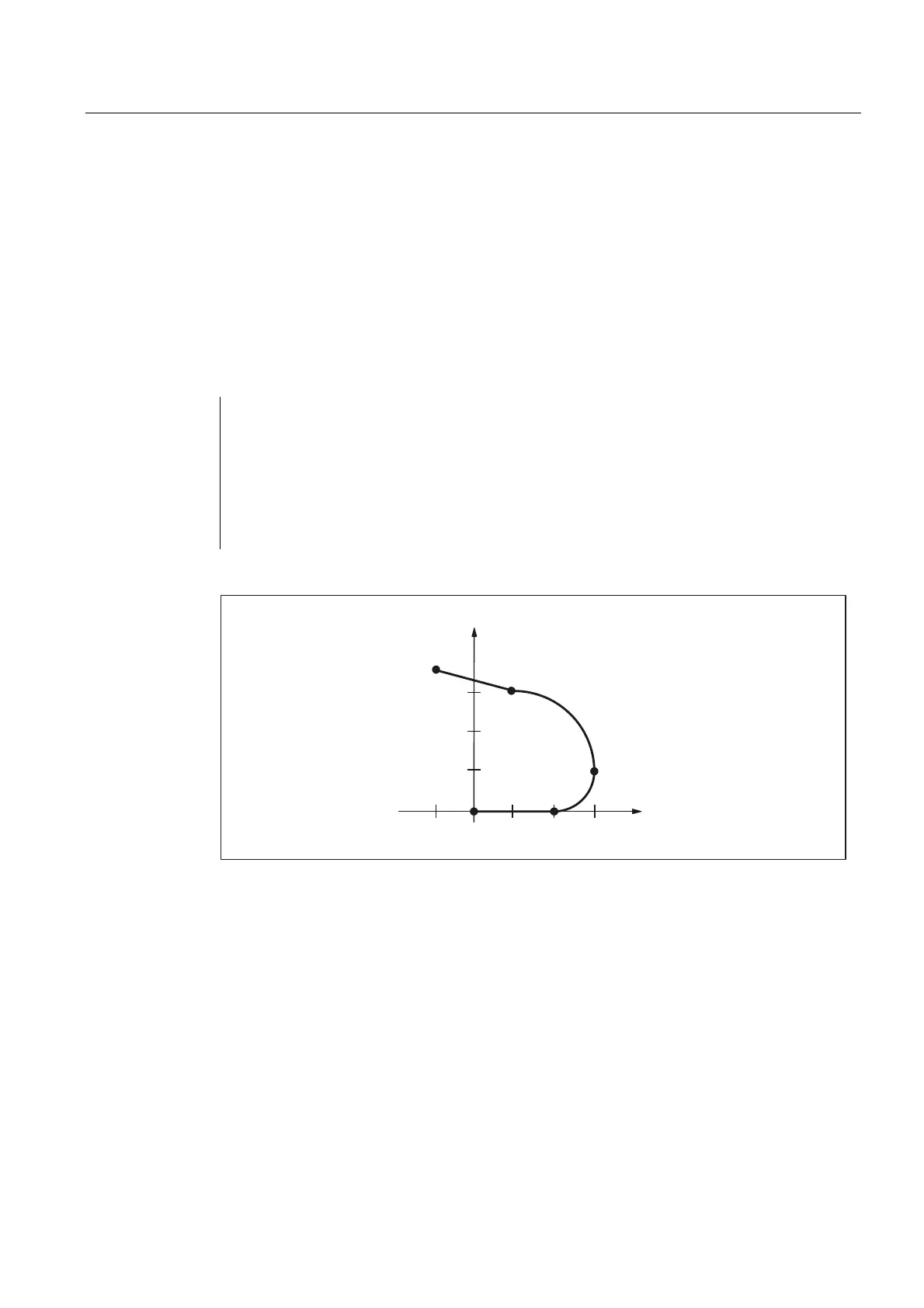

Figure 4-3 Part program contour

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
