Siemens SINUMERIK 840D sl Function Manual

Detailed description
2.12 Block descriptions
Basic logic functions: PLC basic program solution line (P3 sl)
164 Function Manual, 11/2006, 6FC5397-0BP10-2BA0

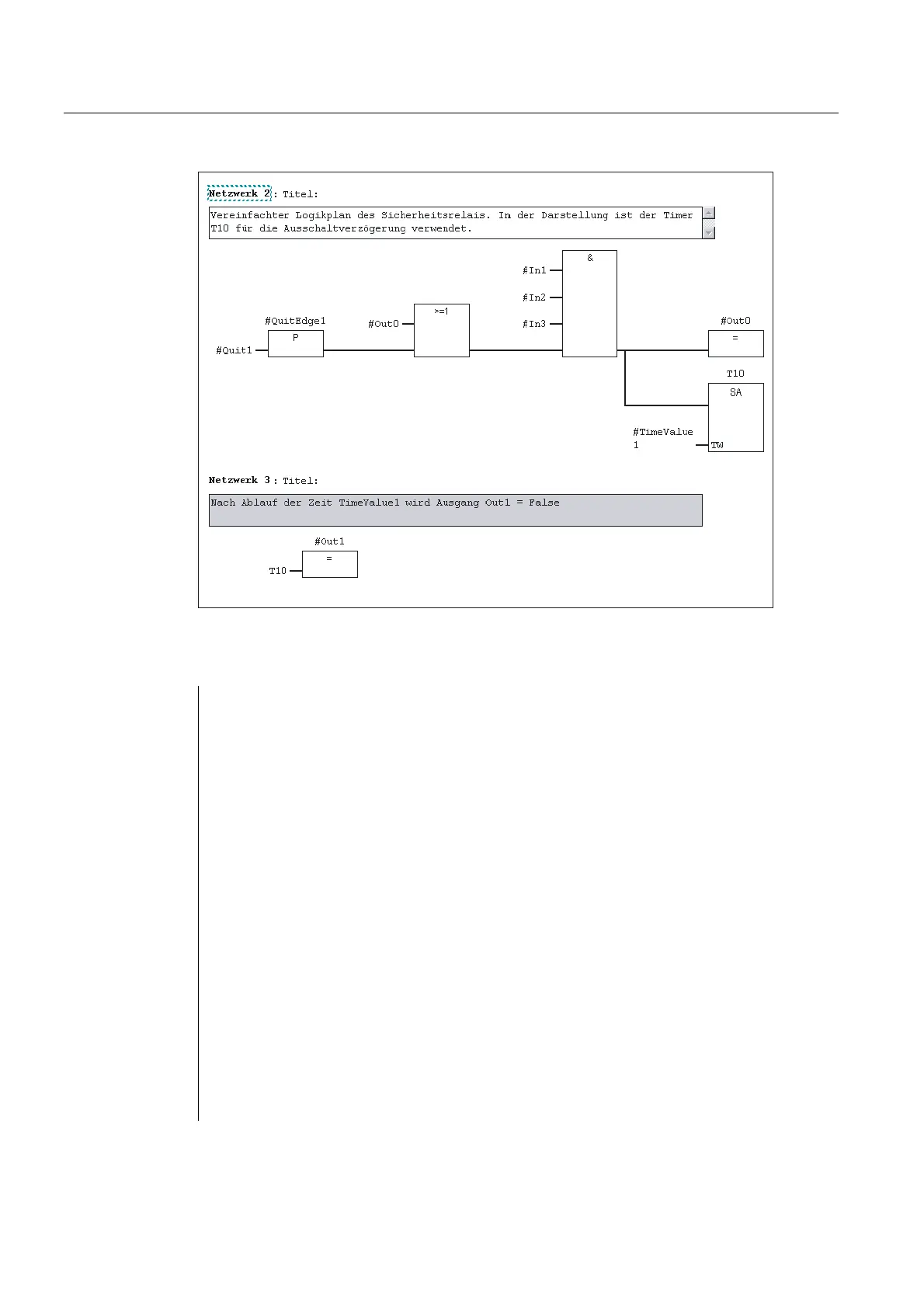

Declaration of the function
FUNCTION_BLOCK FB 10
VAR_INPUT
In1 : BOOL := TRUE; //Input 1
In2 : BOOL := TRUE; //Input 2
In3 : BOOL := TRUE; //Input 3
Ackn1 : : BOOL ; //Ack 1 signal
Ackn2 : :BOOL; //Ack 2 signal
TimeValue1 : TIME := T#0ms ; //TimeValue for output 1
TimeValue2 : TIME := T#0ms ; //TimeValue for output 2
TimeValue3 : TIME := T#0ms ; //TimeValue for output 3
END_VAR
VAR_OUTPUT
Out0 : BOOL ; //Output without delay
Out1 : BOOL ; //Delayed output to false by timer 1
Out2 : BOOL ; //Delayed output to false by timer 2
Out3 : BOOL ; //Delayed output to false by timer 3
END_VAR
VAR_INOUT
FirstRun : BOOL ; //TRUE by user after initial start of SPL
END_VAR

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
