Siemens SINUMERIK 840D sl Function Manual

Detailed Description
2.1 Spindle modes
Basic logic functions: Spindles (S1)
24 Function Manual, 11/2006, 6FC5397-0BP10-2BA0
Positioning from standstill
A distinction is made between two cases with regard to positioning from standstill:
• Case 1: The spindle is not synchronized.
This is the case if the spindle is to be positioned after switching on the control and drive
or after a gear step change (e.g., for a tool change).
MD31040 $MA_ENC_IS_DIRECT = 0
• Case 2: The spindle is synchronized.
This is the case if, after switching on the control and drive, the spindle is to be rotated
through a minimum of one revolution with M3 or M4 and then stopped with M5
(synchronization with the zero mark) before the first positioning action.
UHYPLQ
D
D




UHYPLQ
6326>@ 




0'63,1'B326&75/B9(/2
6326>@ 
&DVH6SLQGOHQRWV\QFKURQL]HG
7LPHV
=HURPDUN
3RVLWLRQFRQWURODFWLYDWLRQVSHHG
&DVH6SLQGOHV\QFKURQL]HG
6SLQGOHVSHHG
7LPHV
3RVLWLRQFRQWURODFWLYDWLRQVSHHG
6SLQGOHVSHHG
0'63,1'B326&75/B9(/2

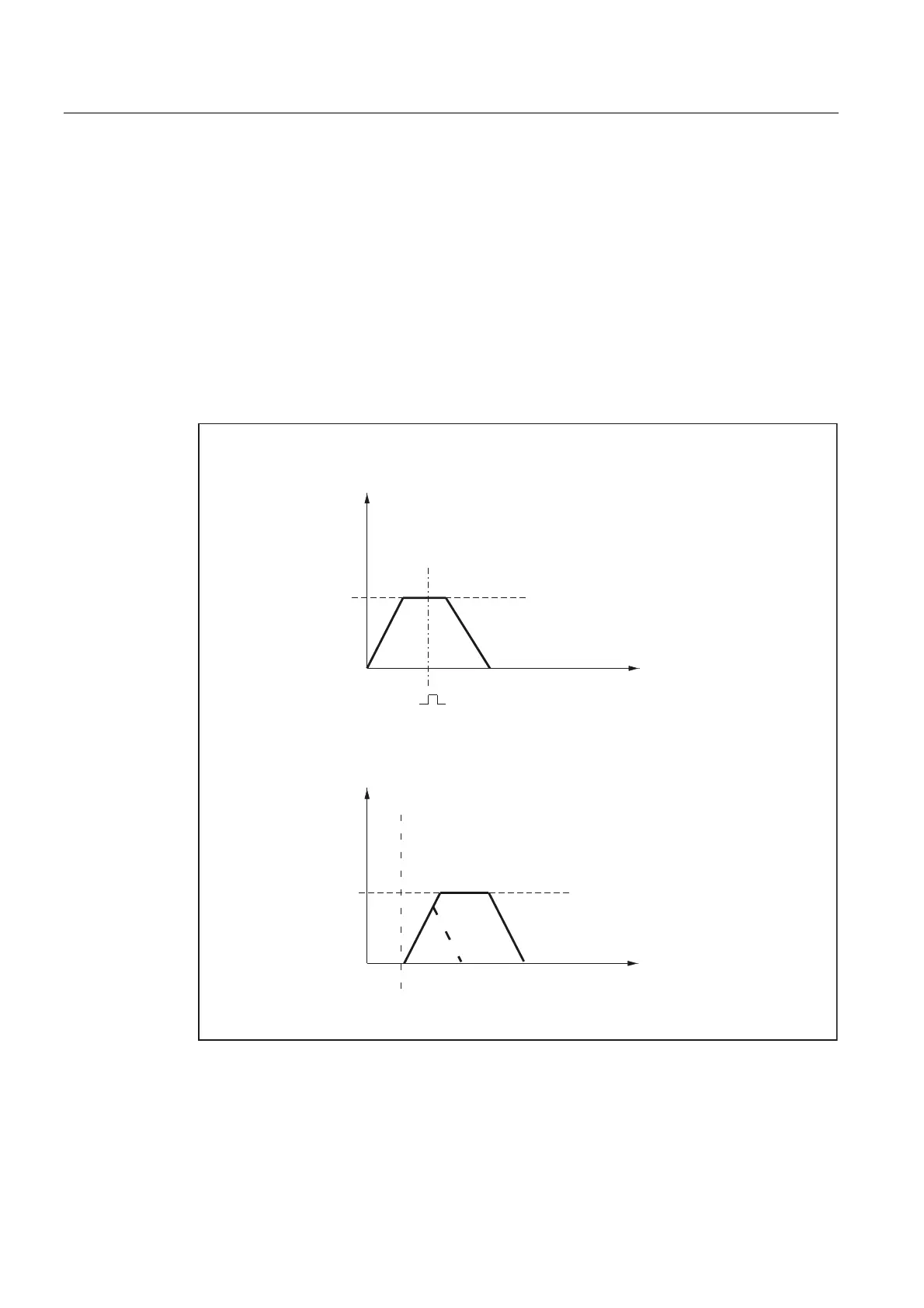

Figure 2-3 Positioning with stationary spindle

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
