Detailed Description

2.3 Tool cutting edge

Basic logic functions: Tool Offset (W1)

Function Manual, 11/2006, 6FC5397-0BP10-2BA0

)

/HQJWKWRROSDUDPHWHU

) WRROKROGHUUHIHUHQFHSRLQW

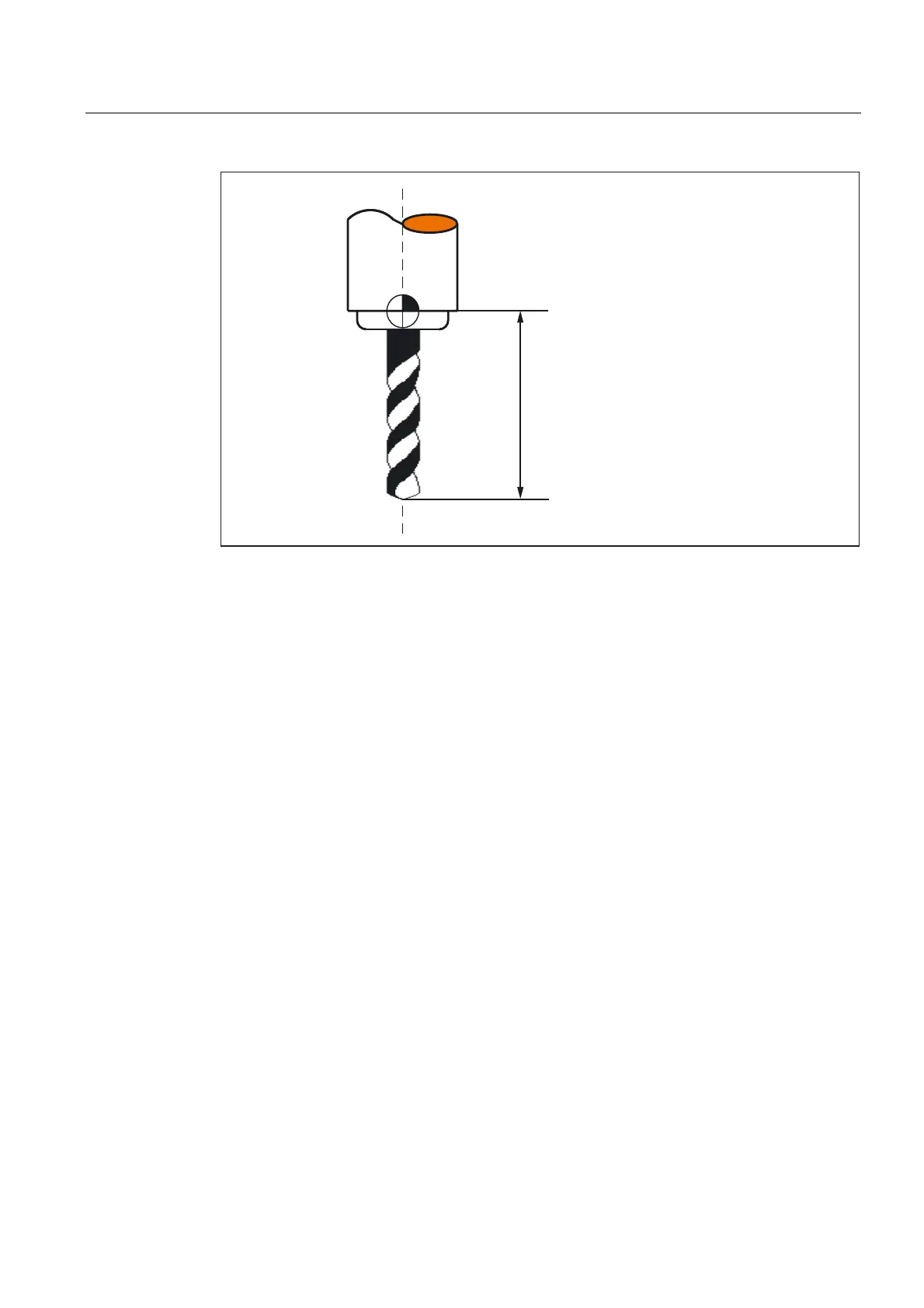

Figure 2-9 Twist drill (tool type 200) with tool length (tool parameter 3)

Special points to be noted

The active size of the tool is only defined when the geometry tool length compensation (tool

parameters 3 to 5) and the wear tool length compensation (tool parameters 12 to 14) are

added together. The base-dimension/adapter-dimension tool length compensation is also

added in order to calculate the total tool length compensation in the geometry axes.
