Siemens SINUMERIK 840D sl Function Manual

Detailed description
2.2 Functions
Basic logic functions: Various NC/PLC interface signals and functions (A2)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
31
Accuracy
If the programmed end point does not lie exactly on the involute defined by the starting point,
interpolation takes place between the two involutes defined by the starting and end points
(see illustration below).
The maximum deviation of the end point is determined by the machine data:
MD21015 $MC_INVOLUTE_RADIUS_DELTA(end point monitoring for involute)
5
6WDUWSRLQW
(QGSRLQW
%DVHFLUFOH
0D[GHYLDWLRQ

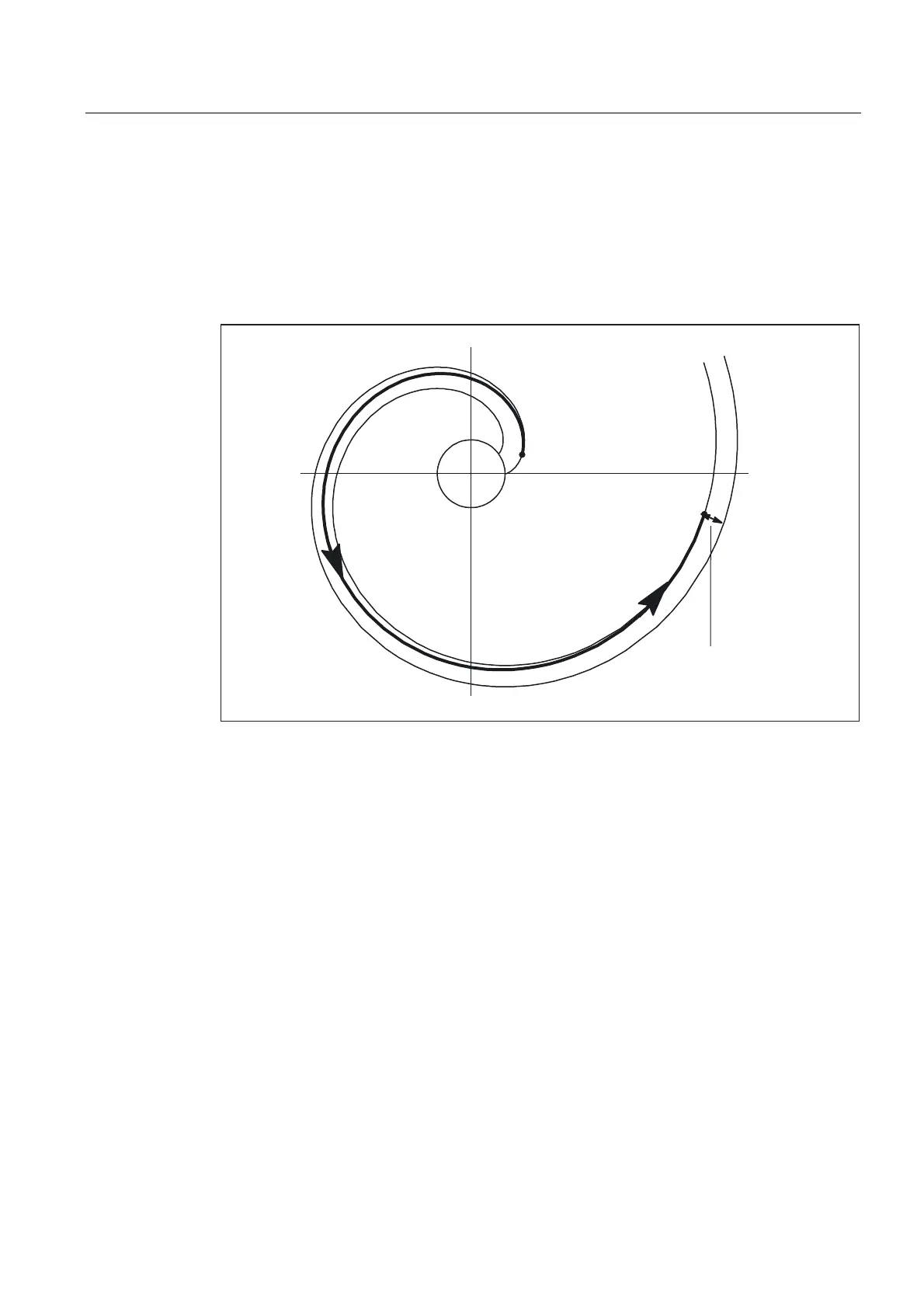

Figure 2-7 MD21015 specifies the max. permissible deviation

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
