Siemens SINUMERIK 840D sl Function Manual

Detailed description
2.3 Coordinate systems
Basic logic functions: Axes, coordinate systems, frames (K2)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
43
Machine tools with kinematic transformation
The BCS and MCS do not coincide when the BCS is mapped onto the MCS with kinematic
transformation (e.g., TRANSMIT / face transformation, 5-axis transformation or more than
three axes).
On such machines the machine axes and geometry axes must have different names.
<
;
=
;
=
<
0&6
%DVLFFRRUGLQDWHV\VWHP%&6
0DFKLQHFRRUGLQDWHV\VWHP0&6
.LQHPDWLFBWUDQV
IRUPDWLRQ
%&6
%&6
%&6
0&6
0&6

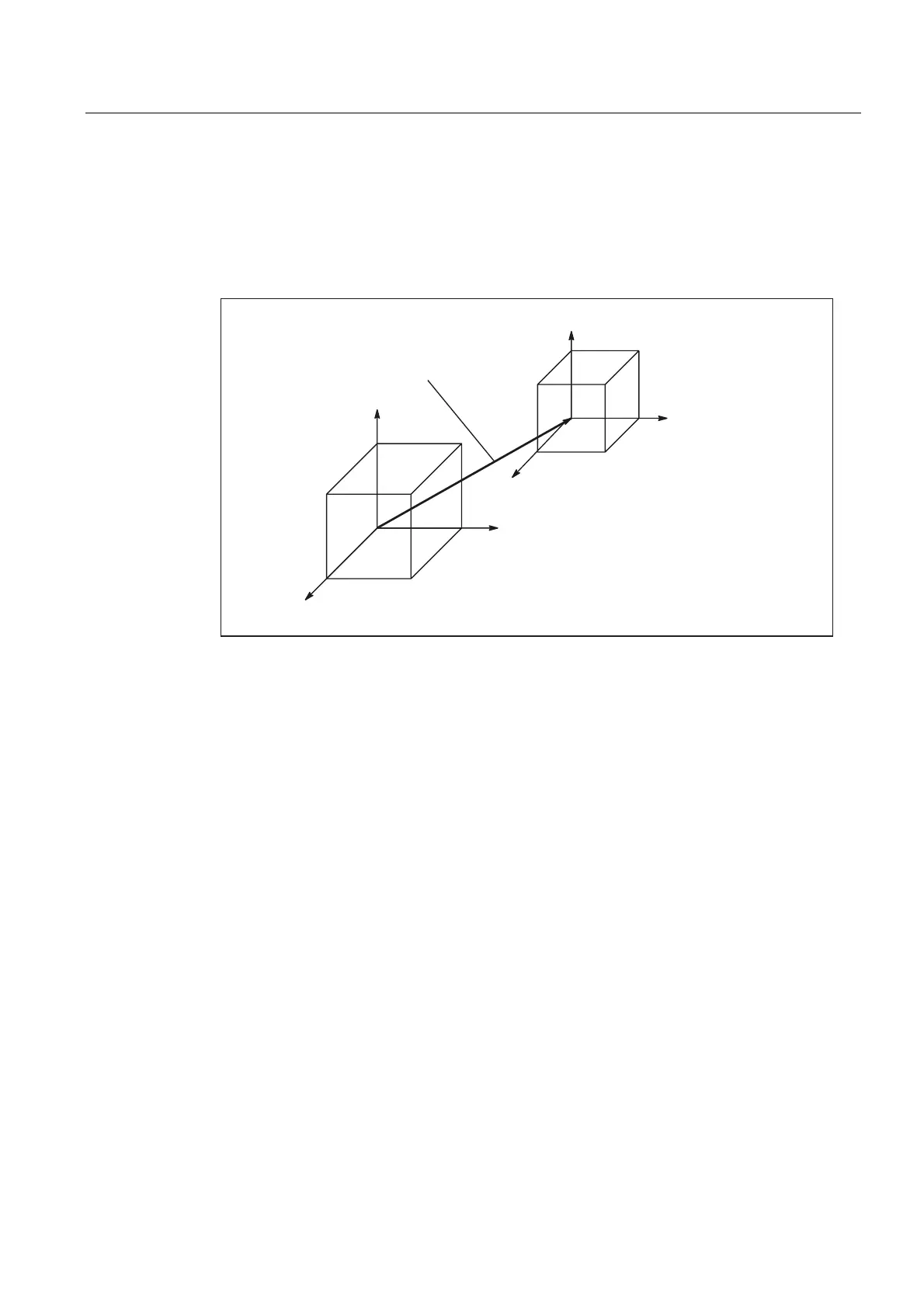

Figure 2-16 Kinematic transformation between the MCS and BCS
Machine kinematics
The workpiece is always programmed in a two or threedimensional, rightangled coordinate
system (WCS). However, such workpieces are being programmed ever more frequently on
machine tools with rotary axes or linear axes not perpendicular to one another. Kinematic
transformation is used to represent coordinates programmed in the workpiece coordinate
system (rectangular) in real machine movements.
References:
/FB3/Function Manual, Special Functions; 3-Axis to 5-Axis Transformation (F2)
/FB2/Function Manual, Extension Functions; Kinematic Transformation (M1)

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
