Siemens SINUMERIK 840D Description Of Functions

11.03 7 Configuring example
7.4 Safety Integrated without SPL
© Siemens AG 2003 All Rights Reserved
SINUMERIK 840D/SIMODRIVE 611 digital SINUMERIK Safety Integrated (FBSI) - Edition 11.03
7-415

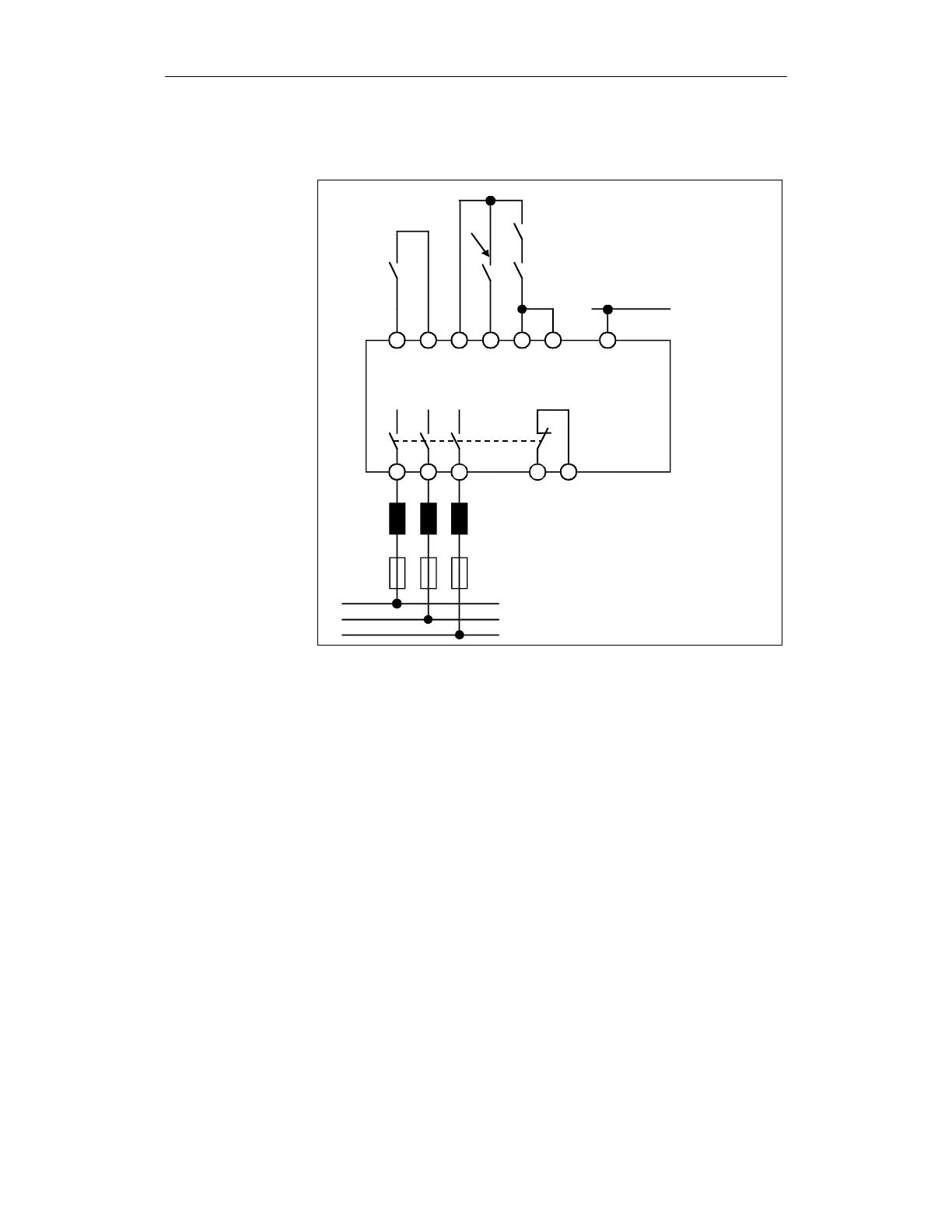

Circuit diagram
Kl
. 213
Kl
. 111
. LV1
. LV2
. 9 . 64 . 63 . 48 . 19
Leading contact
from power switch
0V
L1
L2
L3
EMERGENCY STOP
Time relay
Q1
K2
K1
EMERGENCY
STOP
Time relay
K2
EMERGENCY
STOP
BEI2_11.DSF
Fig. 7-23 Connecting-up the infeed/regenerative feedback module without SPL
The EMERGENCY STOP button is monitored using a safety relay K1
(3TK2805). When the EMERGENCY STOP button is pressed, safety relay K1
drops out immediately and opens the NO contacts that are included in the
connection between terminal 9 and terminal 64 on the infeed/regenerative
feedback module and in the supply path for delay module 3TK29.
As soon as the selected delay time has elapsed, delay module K2 (3TK29.3)
also drops out and opens the NO contacts that are included in the connection
between terminal 9 and terminals 48/63 and in the connection between terminal
NS1 and terminal NS2. EMERGENCY STOP can only be acknowledged when
the line contactor in the infeed/regenerative feedback module and the delay
module K2 have dropped out.

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
