11.03 7 Configuring example
7.6 SI I/Os using fail-safe modules connected to PROFIBUS DP
© Siemens AG 2003 All Rights Reserved
SINUMERIK 840D/SIMODRIVE 611 digital SINUMERIK Safety Integrated (FBSI) - Edition 11.03
7-429
7.6.4 Configuring and connecting-up the ET200S I/O
Only the part required for the PROFIBUS connection of the ET 200S line is
displayed here:
PROFIsafe: DP master system (1)
SI PLC315-2DP 2AF03
DP
IM 360
2
S7 FM-NCU
X2
3
4
(0) 840D NCU 57x.4
(8) IM 151
HWKonf_Bus.dsf

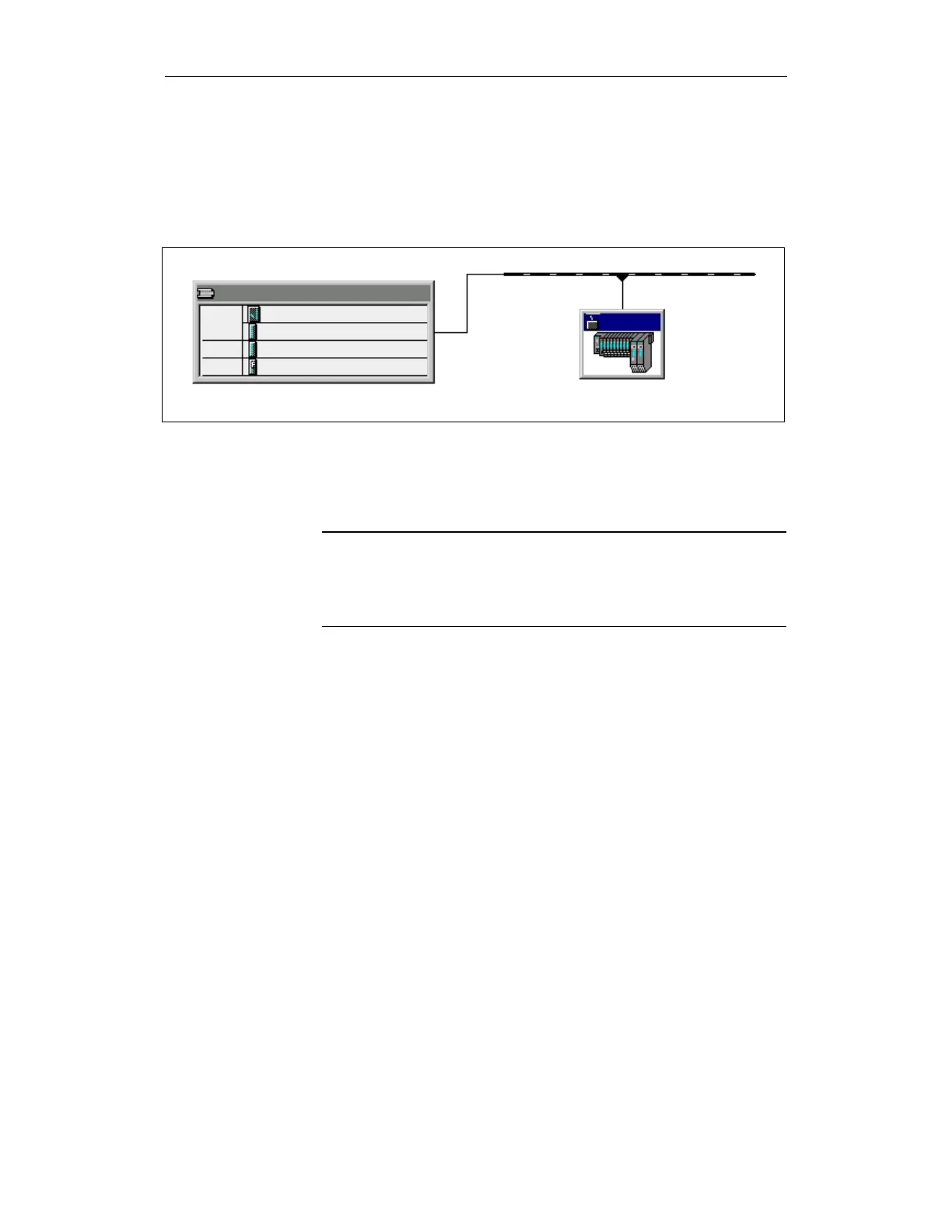

Fig. 7-34 STEP 7 Hardware configuration: Definition of the PROFIBUS system
The system requirements regarding the NCU hardware and interface module
must be observed (cf. Chapter 3.12 -> SI I/Os using fail-safe modules on
PROFIBUS-DP -> System requirements).
Note
When describing how the F I/Os are configured, the associated parameters
are only described to some extent or only in the form of an overview. More
detailed information is given in the
context-sensitive online help and in the
manual
ET200S Distributed I/O System, Fail-Safe Modules.
PROFIBUS connection
(overall system)
