7.4.5 De-selecting SBH using the key-operated switch/SG changeover
using the door safety contactor
On the NCK side, "safe operating stop" is de-selected using DMP input 5. The
state shown in the circuit diagram is "protective door open" and "safe operating
stop" was selected using the key-operated switch. Using the key-operated
switch, it is possible to change-over to safely-reduced speed with the protective
door open.
X axis, Z axis, spindle C:
36971 SAFE_SAFE_SS_DISABLE_INPUT: : 01040105H
Safe operating stop is de-selected when the protective door is closed and a
changeover is made from safely-reduced speed 1 (personnel protection) to
safely-reduced speed 2 (machine protection).
X axis, Z axis, spindle C:
36972 SAFE_SAFE_VELO_SELECT_INPUT[0] : 01040106H
On the PLC side, the switching states of the door and the key-operated switch
are logically combined in an S7 program. The safety functions are activated
and de-activated via the PLC drive interface (see Chapter 4, "Interface
signals").
Door locking
Keyswitch
13 23 33
14 24 34 14 24
13 23
NCK PLC
I5
I6
I32.5
I32.6
+24V
Safety contactor K3
or door switch
see Section 7.4.4
SCHALT02.DSF

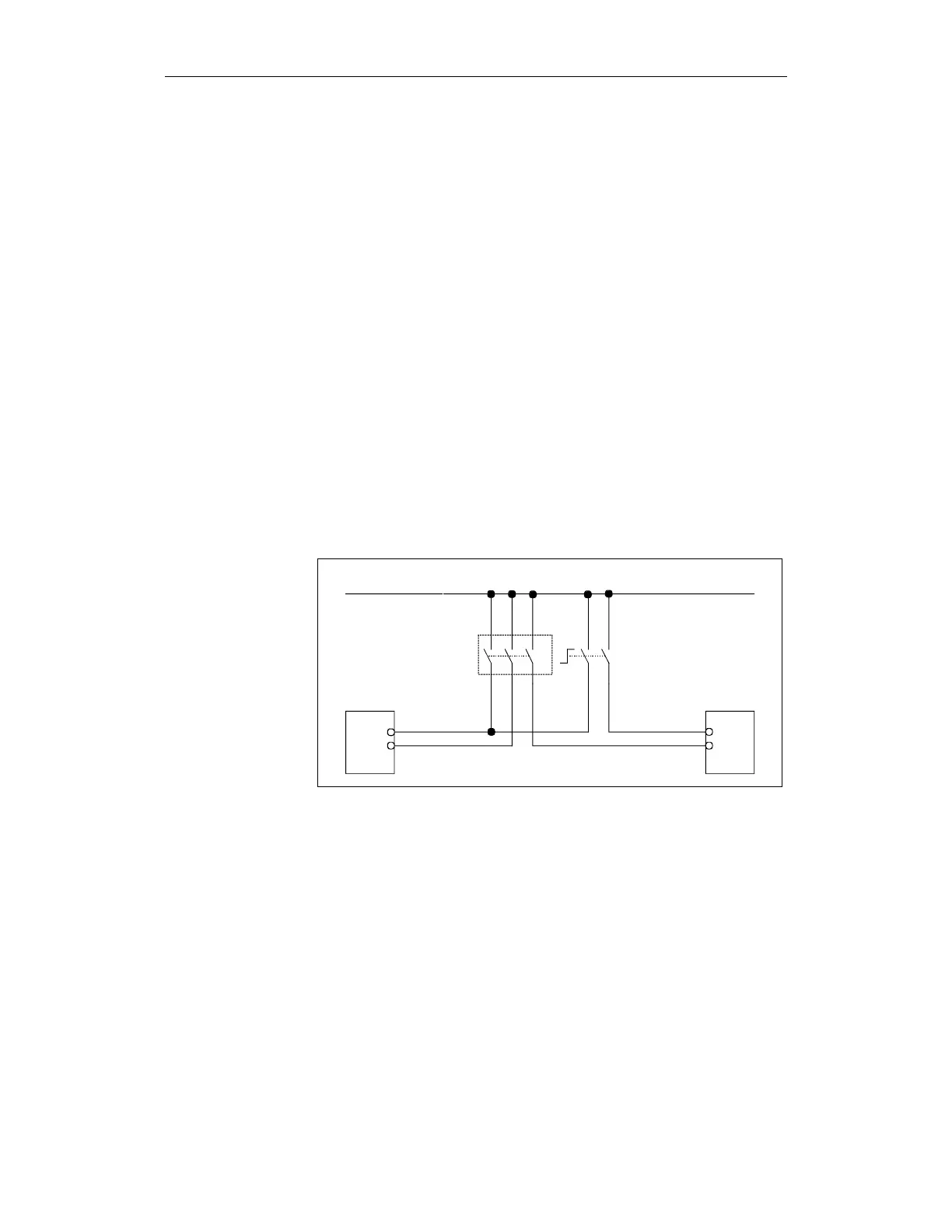

Fig. 7-27 Circuit diagram: SBH de-selection using key-operated switch
SG changeover using the door safety contactor
Circuit diagram
