7 Configuring example 11.03
7.5 External STOPs
© Siemens AG 2003 All Rights Reserved
7-422 SINUMERIK 840D/SIMODRIVE 611 digital SINUMERIK Safety Integrated (FBSI) - Edition 11.03
Test stop phase 2 (marker 216.0)
Pulses for drives X, Z, C
not safely disabled
Trigger STOP C on PLC side
(Q 36.0 = "0")
Checkback signal STOP C active
DB3x.DBX111.4
Start
yes
no
no
yes
Trigger STOP C on NCK side
(Q 36.1 = "0")
Checkback signal STOP C active
DB3x.DBX111.4
yes
no
End of test stop
M 211.0 = "0"
Cancel STOP C NCK side
(Q 36.1 = "1")
Cancel STOP C on PLC side
(Q 36.0 = "1")

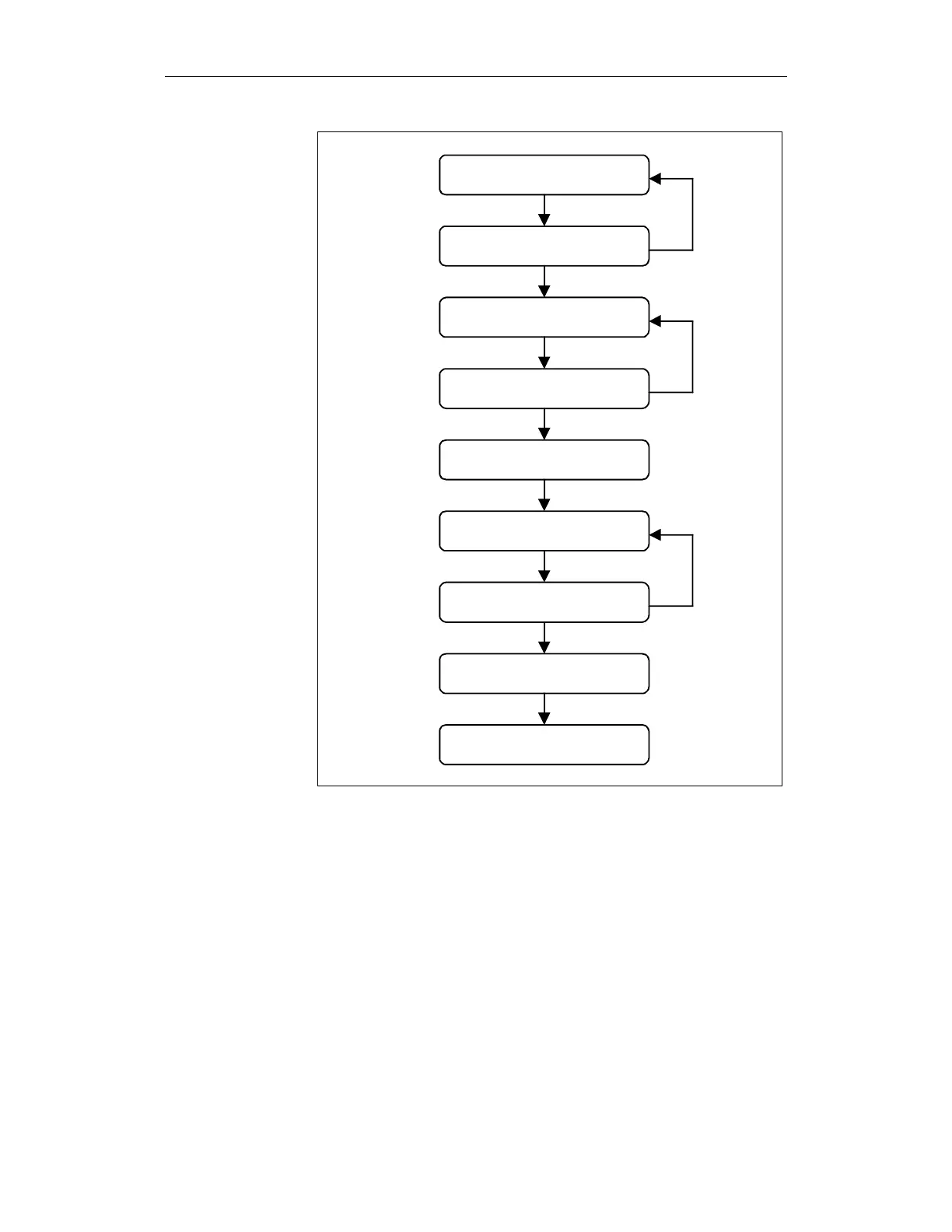

Fig. 7-28 Flowchart when testing external STOP C
