Detailed Description
2.4 Tool: Tool radius compensation 2D (TRC)
Tool Compensation (W1)
Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
2-59
The following conditions must be true for retraction:
• Smooth retraction is activated in block N60
• Retraction movement performed with quadrant (G248) and helix (G340)
• FAD not programmed, since irrelevant for G340
• Z=2 in the start point; Z=8 in the end point, since DISCL=6
• When DISR=5, the radius of SAR contour=20; that of the tool center point path=5
• After the circle block, the retraction movement leads from Z8 to Z20 and the movement is
parallel to the XY plane up to the end point at X70 Y0.
7RRO
7RROFHQWHUSDWK
&RQWRXU
6HPLFLUFOH
+HOL[
3UHW
3DSS
3UHW
3DSS
3UHW
3DSS
;
<

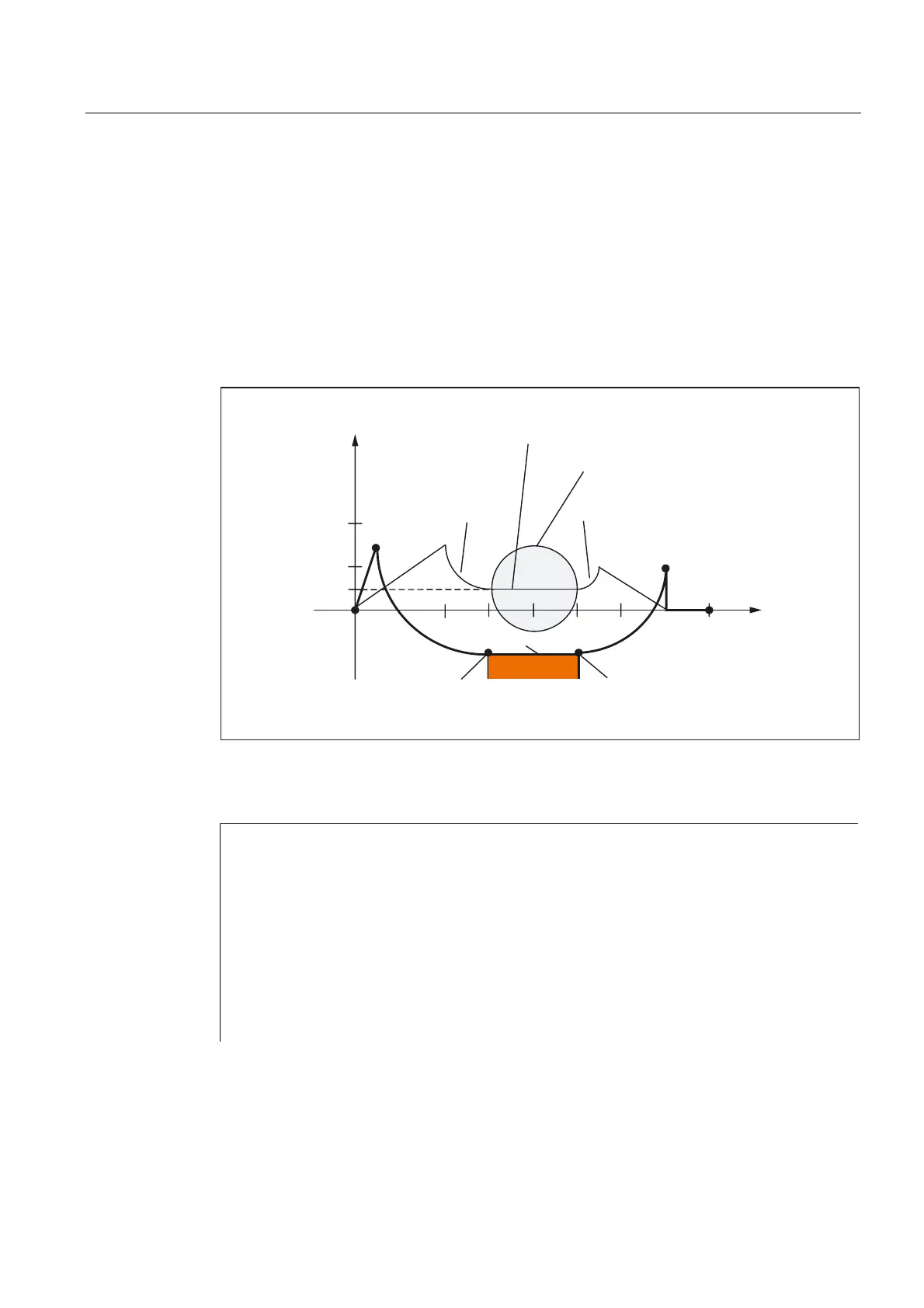

Fig. 2-25 Contour example 2
Part program:
$TC_DP1[1,1]=120 ; Tool definition T1/D1
$TC_DP6 [1,1] = 10 ; Radius
N10 G0 X0 Y0 Z20 G64 D1 T1 OFFN = 5 (P0app)
N20 G41 G247 G341 Z0 DISCL = AC(7) DISR = 10 F1500 FAD=200 (P3app)
N30 G1 X30 Y-10 (P4app)
N40 X40 Z2
N50 X50 (P4ret)
N60 G248 G340 X70 Y0 Z20 DISCL = 6 DISR = 5 G40 F10000 (P3ret)
N70 X80 Y0 (P0ret)
N80 M 30
