Control During Operation
254
7SS52 V4 Manual
C53000-G1176-C182-3

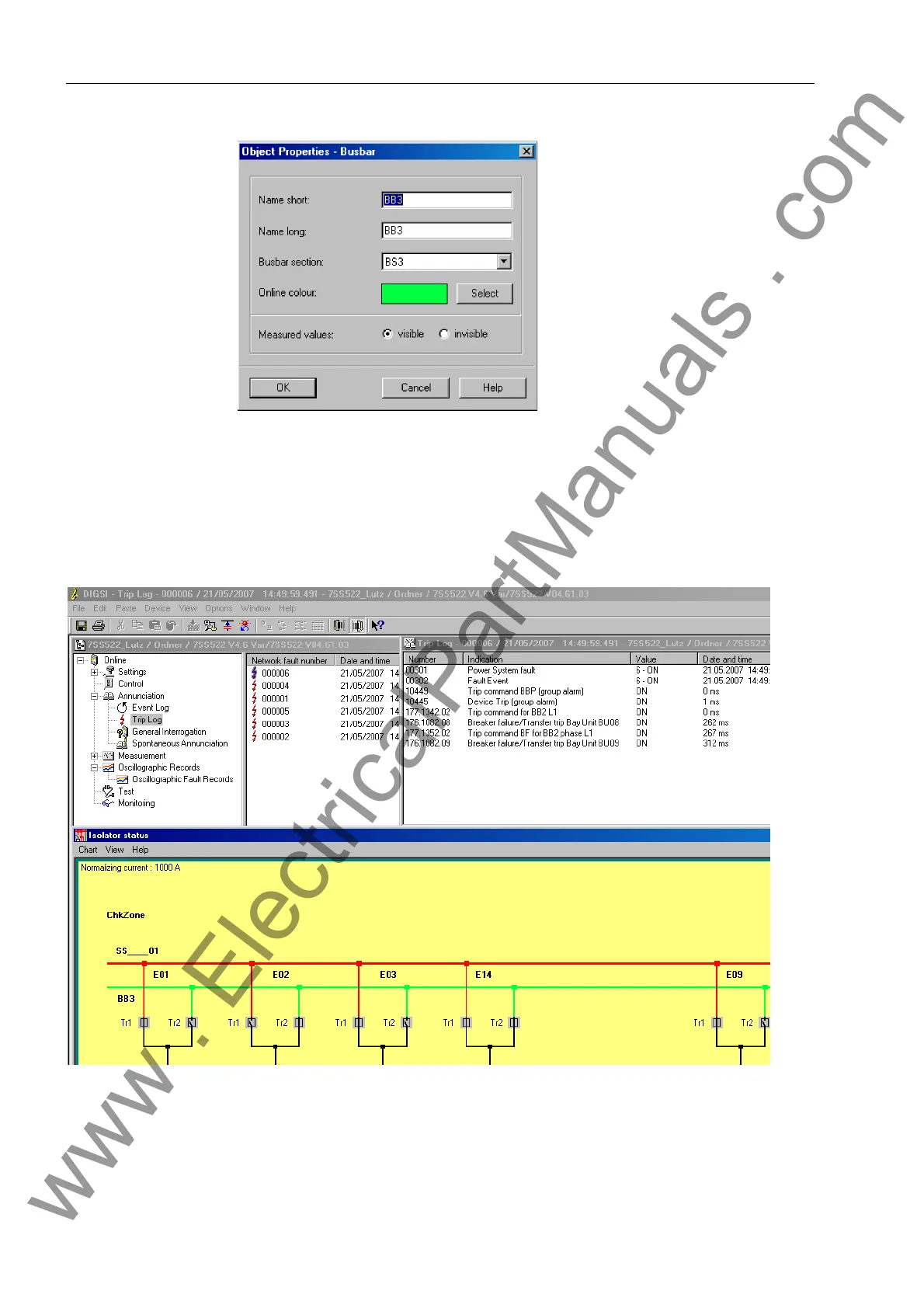

Figure 6-36 Object properties
Isolator Status In a case of fault it is helpful for you to be able to analyze the current isolator and circuit
breaker positions at a later point of time. For this purpose, these data are saved and
can be selected in DIGSI under Fault Indications and displayed by double-clicking on
the fault number.
Figure 6-37 Switch Positions for a Case of Fault Displayed Graphically
