Appendix
348
7SS52 V4 Manual
C53000-G1176-C182-3
A.4 Settings − Central Unit
A.4.1 Settings of the ZPS Modules
ZPS module up to
release 7SS52 ../GG
There are two different releases of the ZPS modules available. Figure A-7, page 348
shows the layout of the printed circuit board for devices up to release 7SS522.../GG,
whereas Figure A-8, page 350 depicts the layout for devices of release 7SS52.../HH
and higher.
The ZPS modules are a component of the central unit. They can be used as master
(ZBS-SBK) or slave (ZPS-BSZ or ZPS-SK) in the multi-processor system. The
C53207-A361-B12-1 module can be applied universally as ZPS-SK, ZPS-SBK and
ZPS-BSZ. The C53207-A361-B112-1 module has no communication controller and
can thus only be used as ZPS-SBK and ZPS-BSZ module. For an unequivocal defini-
tion of the task, the respective module is coded by means of switches.
The location of the code switches and the jumpers on the module is depicted in figure
Figure A-7, page 348. The settings can be taken from the tables A-8, page 349 and
A-9, page 349.

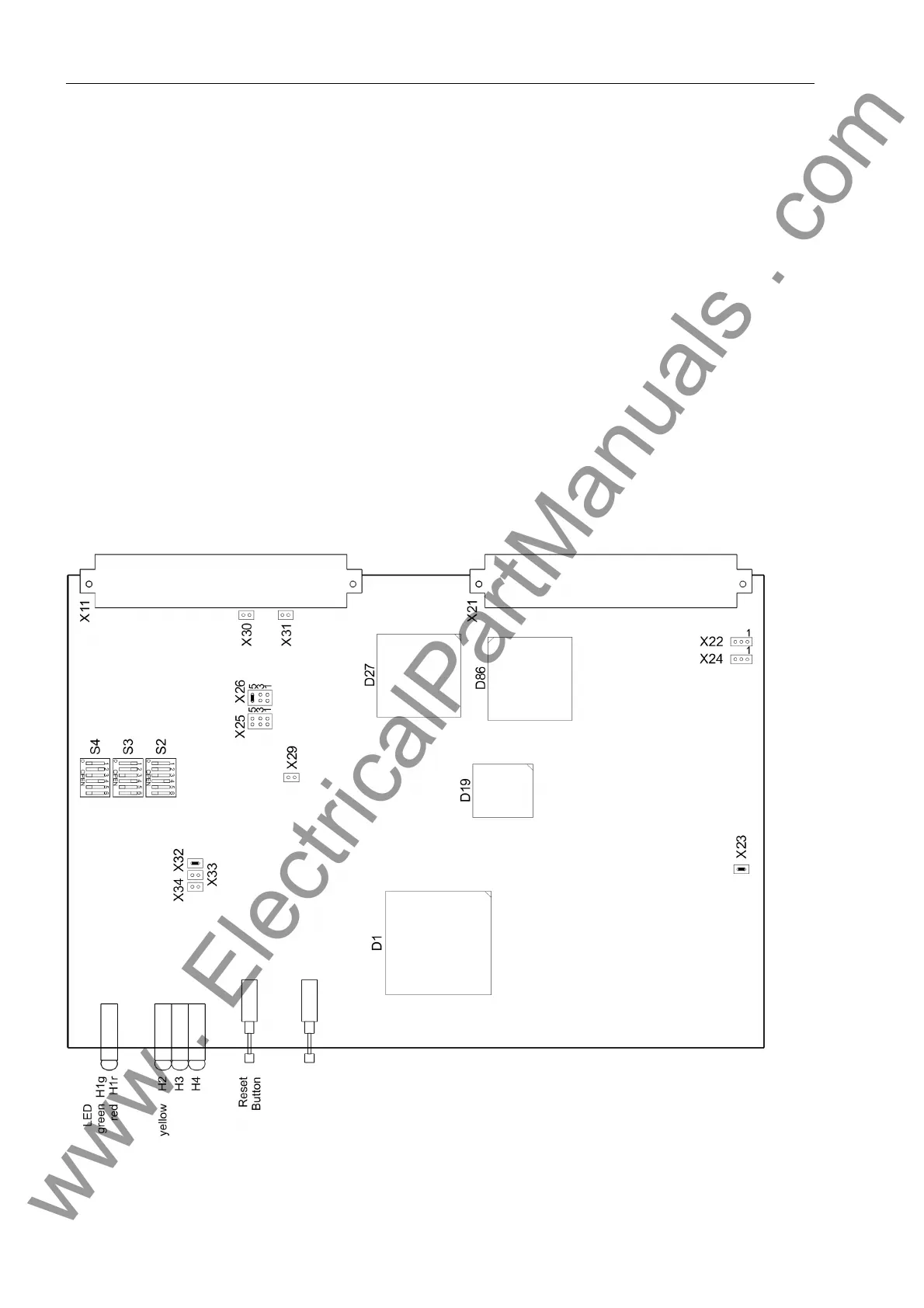

Figure A-7 Location of the coding switches and jumpers on the ZPS module
