Plant Configuration
61
7SS52 V4 Manual
C53000-G1176-C182-3
4.3.8 Inserting Static Text
You can use static text to give additional short information within the chart. A static text
may be composed of not more than twenty characters.
To insert static text you must:
 Click Tools→Insert Text. Alternatively, you can click the button on the chart
toolbar.
 Click the position on the substation chart where you wish to insert the text. A text
input box opens.
 Write the desired text into this box. That finished click the green check mark to the
right of the text box. The text will be placed left-aligned to the selected insertion
point.

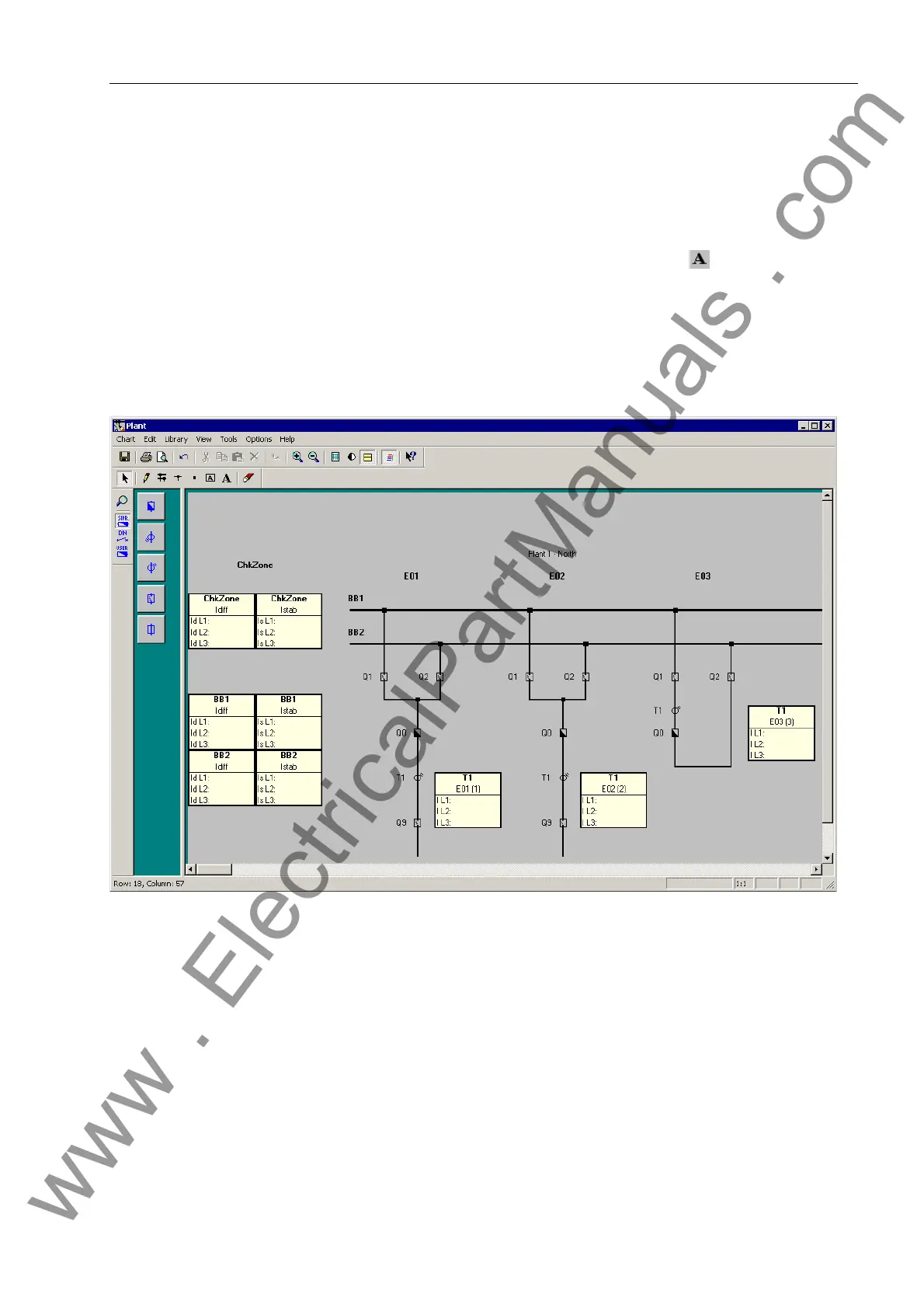

Figure 4-14 DIGSI Plant Configuration - Inserting static text - Example
