Appendix
352
7SS52 V4 Manual
C53000-G1176-C182-3
A.4.2 Settings of the EAZ Module

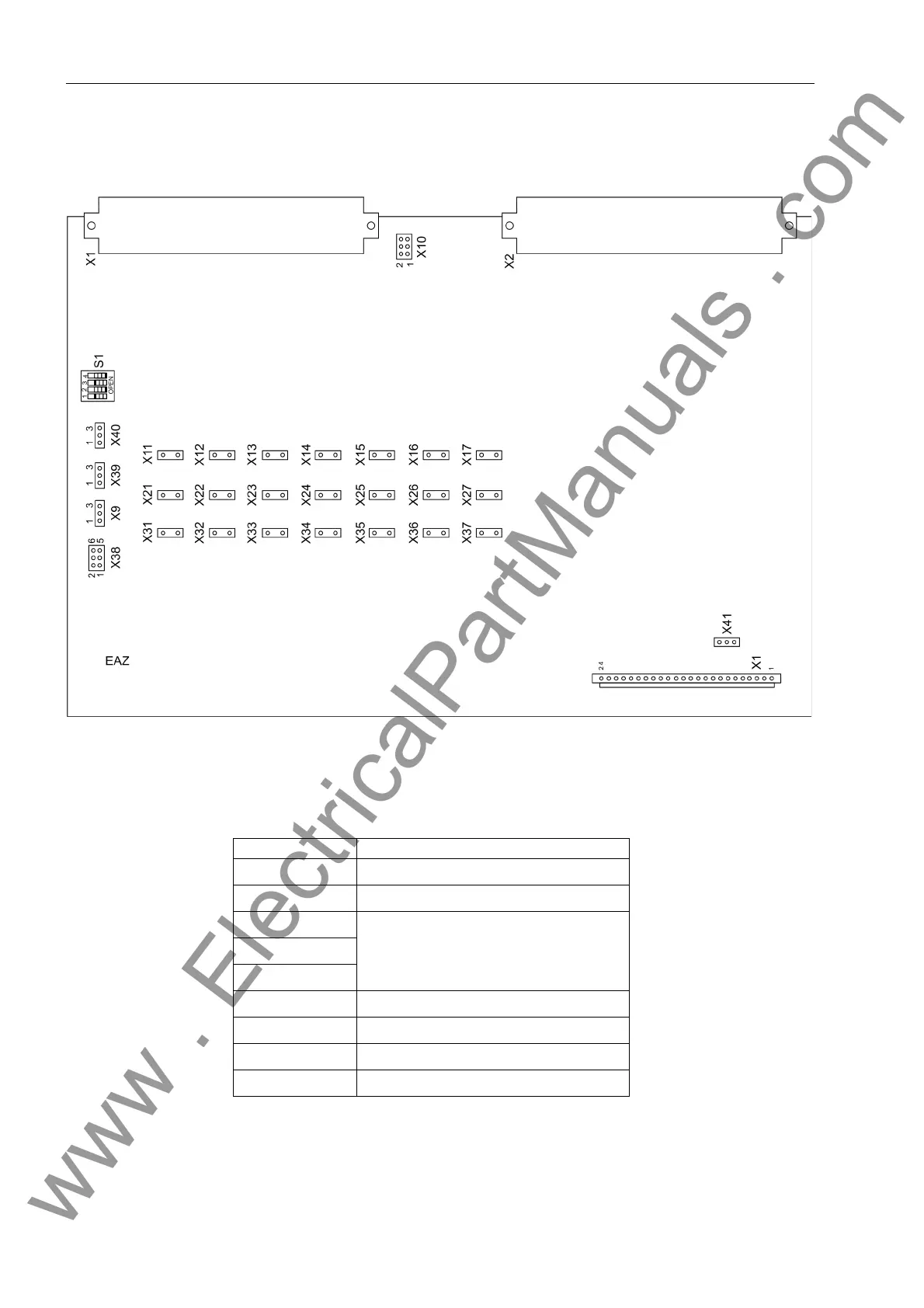

Figure A-9 Jumper layout on the EAZ module
Table A-11 Jumper settings for the EAZmodule
Connector Jumper
X9 Not installed
X10 1-2
X11 to X17 Jumpers for the setting of the control
voltage (see Table A-12, page 353)
X21 to X27
X31 to X37
X38 5-6
X39 1-2
X40 2-3
X41 1-2
