Appendix
360
7SS52 V4 Manual
C53000-G1176-C182-3
A.5.5 Settings of the EFE Module

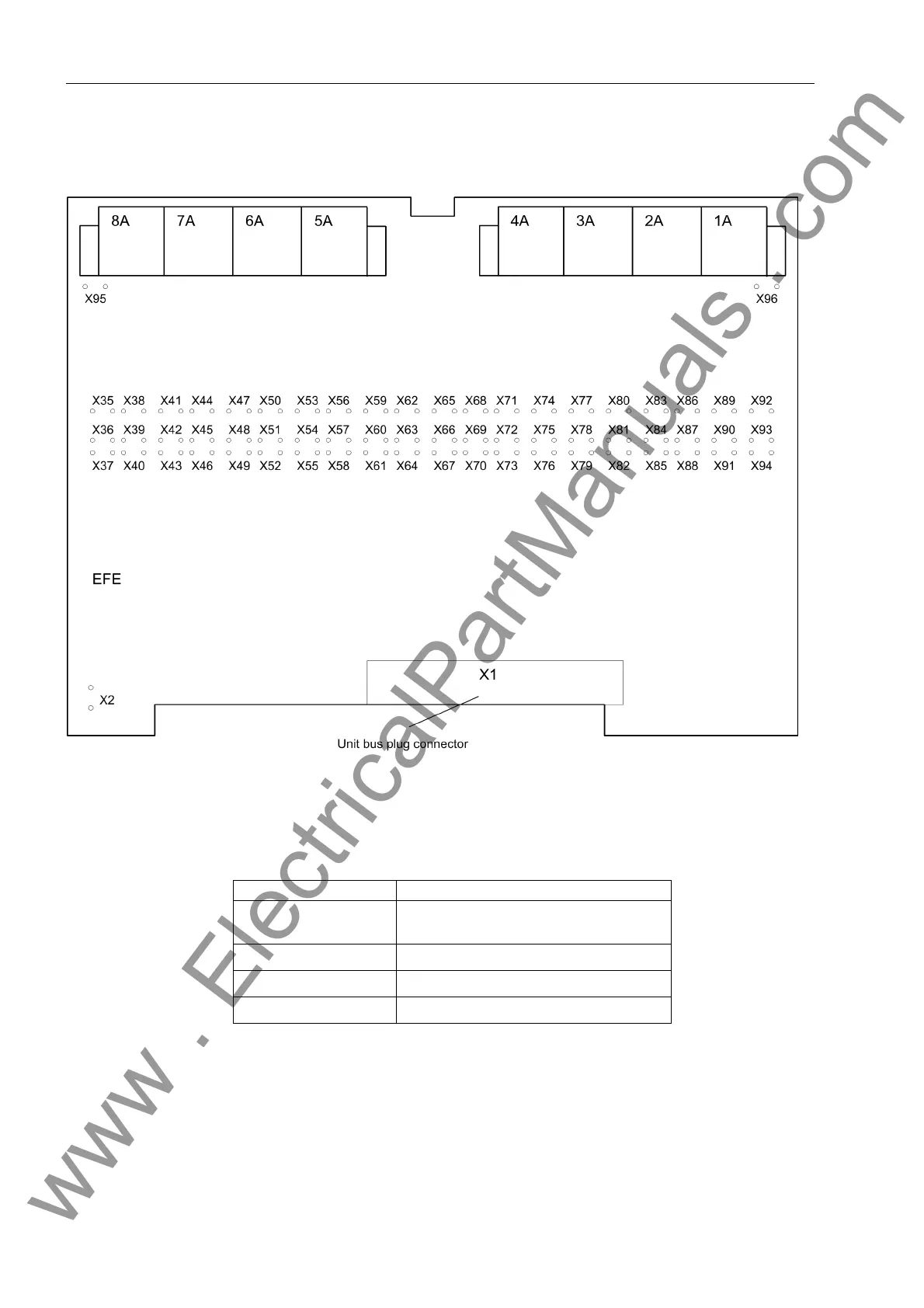

Figure A-15Location of the jumpers on the EFE module
Table A-17 Jumper settings for the EFE module
Connector Jumper
X35 to X94 Jumpers for the voltage setting, see Table
A-18, page 361
X2 (wire jumper) Not installed
X95 (wire jumper) Not installed
X96 (wire jumper) Not installed
