4.2 Inserting Central Unit / Bay Units
In the next step you will insert the central unit and the bay units into the structure of
the project.
To insert the central unit into the project structure you must:
 Open the context menu in the project window of DIGSI Manager and open the De-
vice Catalog.

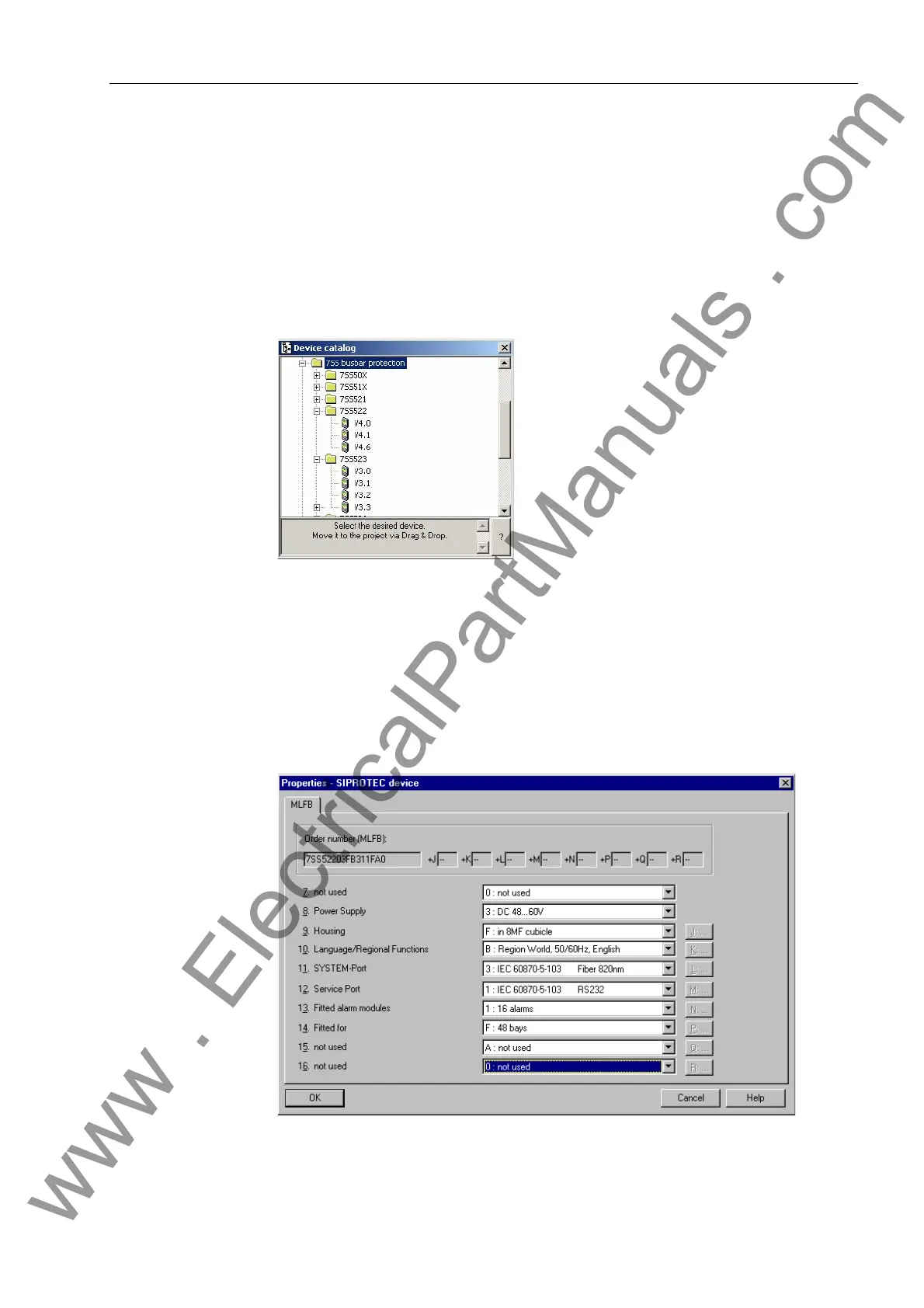

Figure 4-2 Device Catalog
 Switch to the directory 7SS522 in the Device Catalog and drag the object V4.6 for
the version, the left mouse button depressed, to the desired position within the
project structure. After you have released the left mouse button, the dialog box
Properties - SIPROTEC 4 device opens with the tab MLFB. In this tab you can
specify the model of the central unit by selecting the corresponding order number
(MLFB).
Figure 4-3 Dialog box Properties - SIPROTEC 4 device, Tab MLFB
