Enter a busbar name of not more than 8 characters into the box Name long. This
name will be displayed as movable text within the chart. The long name will also
show in the measured value boxes of the busbar.
 Select one of the 12 busbar sections (BB01 to BB12) or bus coupler sections (TB01
to TB12) from the box Busbar section.
 Click Select to choose the on-line colour of the busbar. The Plant Visualization will
show the attachment of the feeders and measuring systems to the corresponding
busbar in the colour you specify here.
 Click OK to apply the settings and to close the dialog box.
Bus coupler zones are bus zones which are used exclusively for connecting bus zones
and which have no feeder bays. In most cases they occur in connection with bus cou-
plers. An example is given in Figure 4-16, page 66 (BS1, BS2).
4.3.4 Defining Bays
Isolators, transformers and circuit breakers must be assigned to a certain bay. A bay
in the substation chart is represented by a bay name. First you insert a wildcard for the
bay name. Next you specify a short name and a long name for the bay name.
To insert a wildcard for the bay name you must:
 Click Tools → Insert Bay Name on the menu bar. Alternatively, you can click the
button on the toolbar.
 Click the position on the substation chart where you wish to insert the bay name. A
wildcard in the form of an asterisk is inserted. Click on the desired positions to insert
further wildcards for bay names.
To specify the short text and long text for a bay name you must:
 Right-click the wildcard in question. Click Object properties in the context menu.
Or you can double-click the wildcard. Both methods will open the dialog box Object
properties - Bay Name.

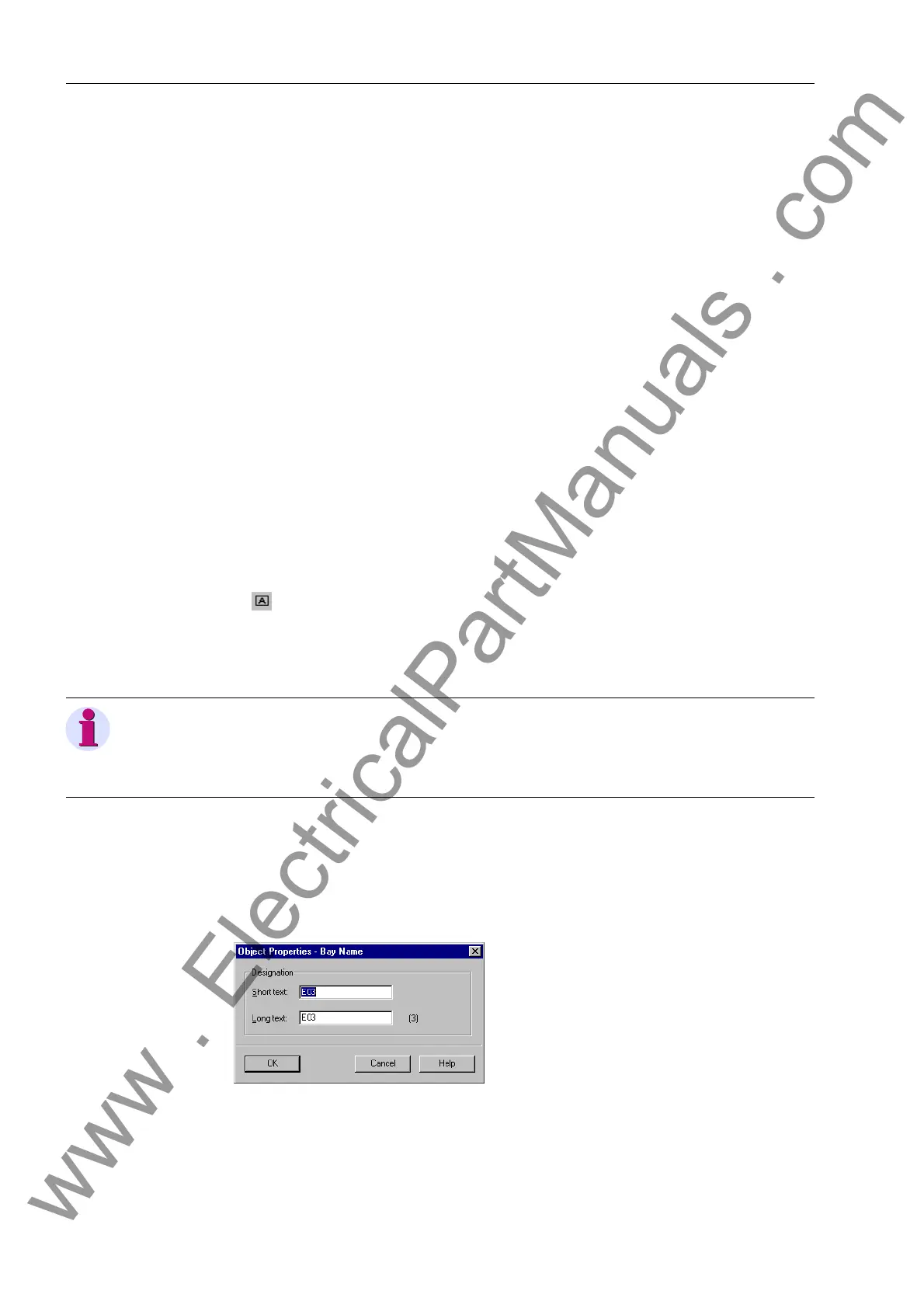

Figure 4-9 Dialog box Object Properties - Bay Name
Note
After you have released the mouse button, the program verifies whether the wildcard
superposes other elements. If this is the case, you will receive a corresponding mes-
sage and the wildcard will not be inserted into the substation chart.
