Configuration
56
7SS52 V4 Manual
C53000-G1176-C182-3
4.3.5 Inserting Dynamic Elements
Static and dynamic elements are inserted into the chart from libraries. Dynamic ele-
ments such as isolators, circuit breakers and transformers usually have several pos-
sible states. Each state is represented by a separate symbol.
Static and dynamic elements are filed in different libraries. The following three libraries
exist: DIN, SIPROTEC and User-defined.
To insert a dynamic library element you must:
 Open the dialog box Select Library via the menu item Library > Select Library
and select a dynamic library.
 Select the element in the library you wish to insert in the substation chart.
 Click the position on the substation chart where you wish to insert the element. The
element you have selected in the library will be pasted in the specified location. To
insert additional elements of the same type into the chart, click the places where
you wish to insert them.

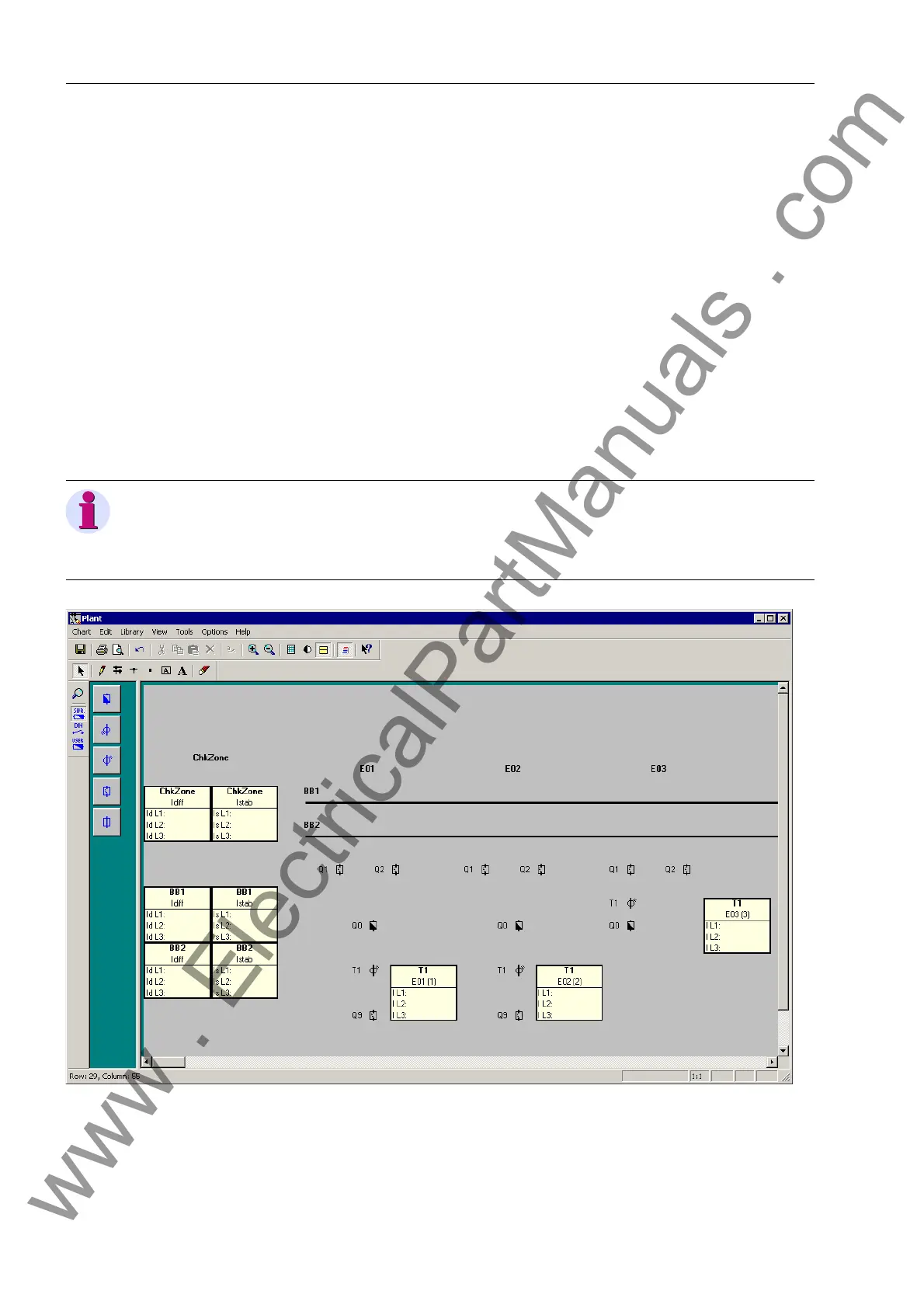

Figure 4-11 DIGSI Plant Configuration - Inserting dynamic elements - Example
Note
After you have released the mouse button, the program verifies whether the element
superposes other dynamic elements. If this is the case, you will receive a correspond-
ing message and the new element will not be inserted into the substation chart.
