Enter a bay name of not more than 4 characters into the box Short text. This name
will be used to characterize the associated information in the Configuration Matrix.
 Enter a bay name of not more than eight characters into the box Long text. This
name will be displayed as movable text within the chart of the substation. The long
text will also be displayed in the measured value box of a transformer which is as-
signed to that bay. As you can give identical names to different bays, each long text
is complemented by an automatically assigned number.
 Click OK to apply the settings and to close the dialog box.

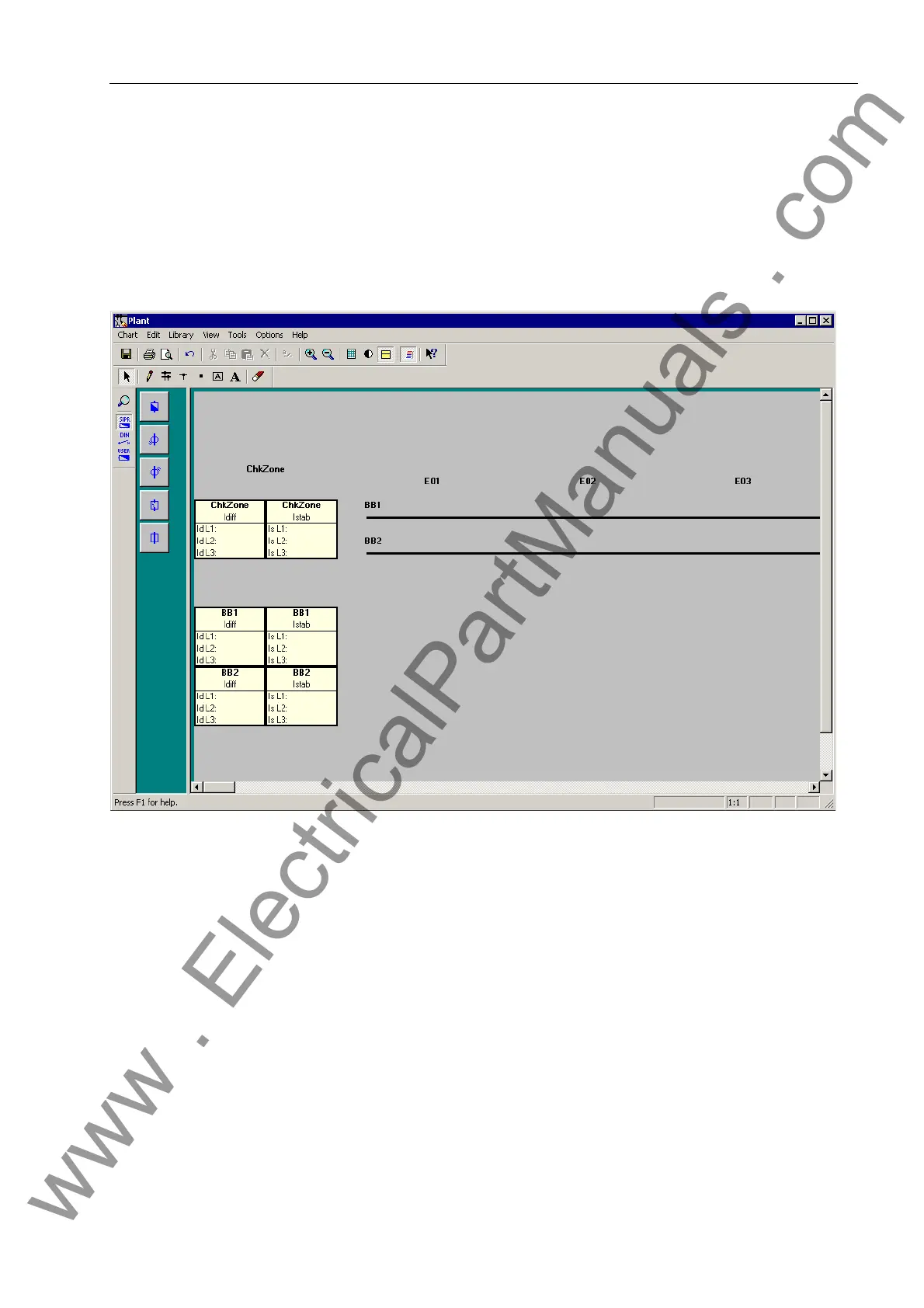

Figure 4-10 DIGSI Plant Configuration, Defining bays - Example
