Assigning Bay Units
71
7SS52 V4 Manual
C53000-G1176-C182-3
4.5 Assigning Bay Units
In the previous step you have drawn and parameterized your entire substation with the
DIGSI Plant Configuration. Thus you have also configured bay units. Subsequently
you must assign these bay units to the bay units in the Device Manager (see Chapter
4.2, page 47). Then you will be able to open the configured chart of the substation in
the Plant Visualization and there you will see the present changes of the measured
values and switch states. Furthermore, the central unit will not start without the assign-
ment of the bay units.
To assign bay units you must:
 Open the folder Settings in the DIGSI Device Configuration and select the function
Bay unit allocation.

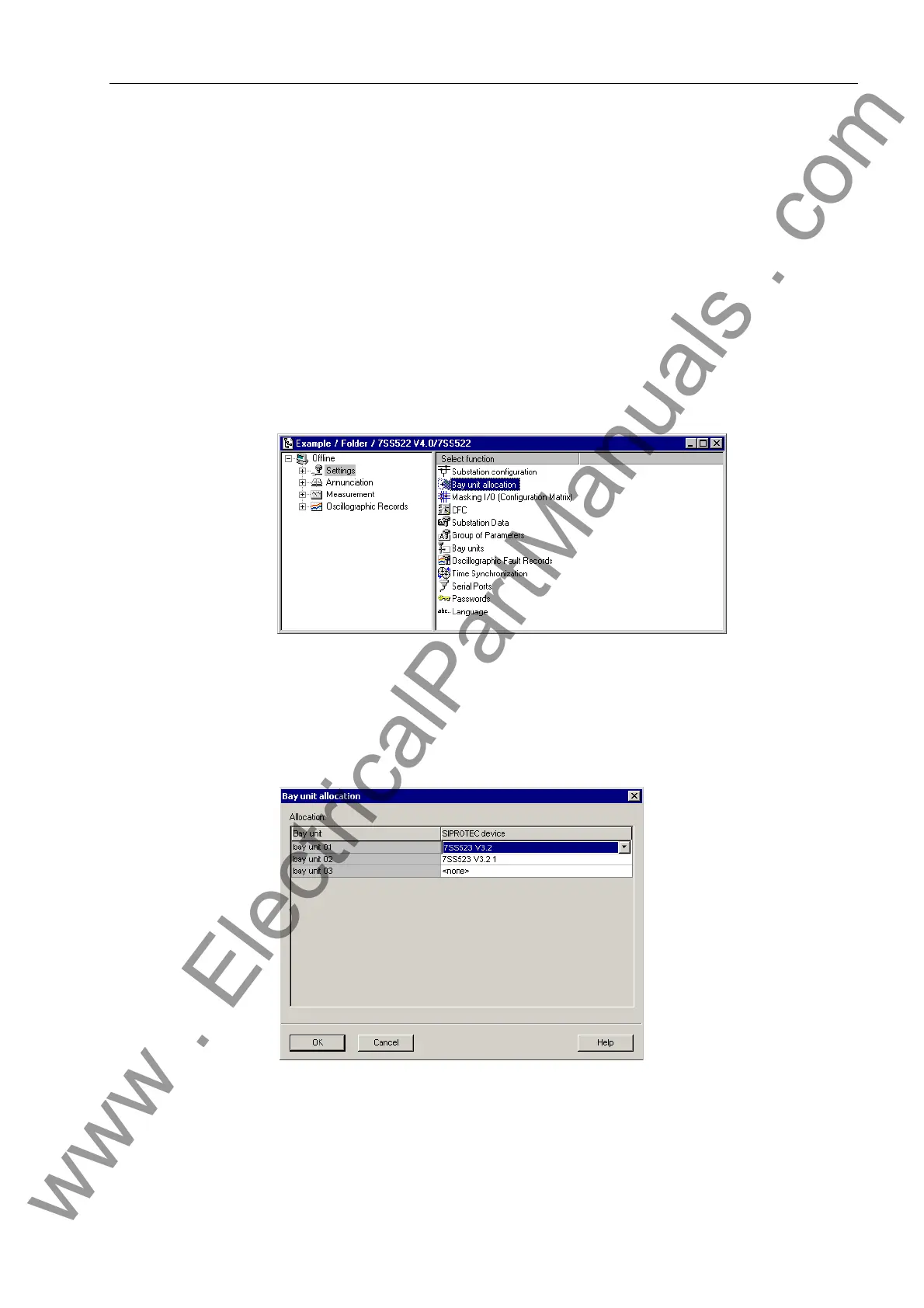

Figure 4-21 DIGSI Device Configuration - The folder Settings
 Right-click the object to open the context menu and apply the command Open ob-
ject. You can also double-click the function Bay unit allocation. The Bay unit as-
signment dialog box opens. The left column is a list of all bay units configured with
the DIGSI Plant Configuration.
Figure 4-22 DIGSI Device Configuration - Dialog box for Bay unit assignment
