Dimensions
329
7SS52 V4 Manual
C53000-G1176-C182-3
9.3 Dimensions
9.3.1 Central Unit

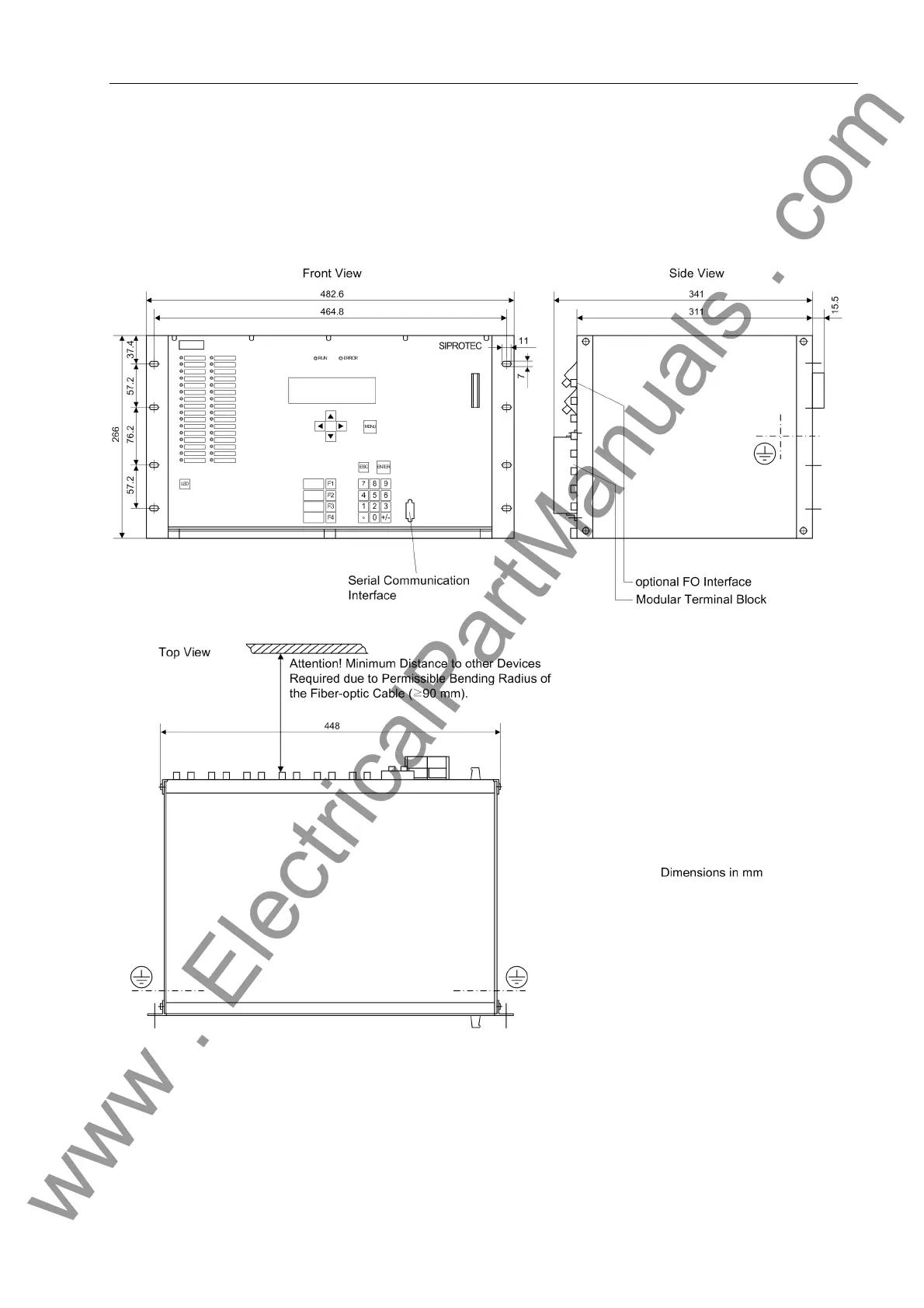

Figure 9-2 Mechanical dimensions of the subrack
If you use the optionally available spacer angles, the installation depth will be reduced by
40 mm.
