Configuration
66
7SS52 V4 Manual
C53000-G1176-C182-3

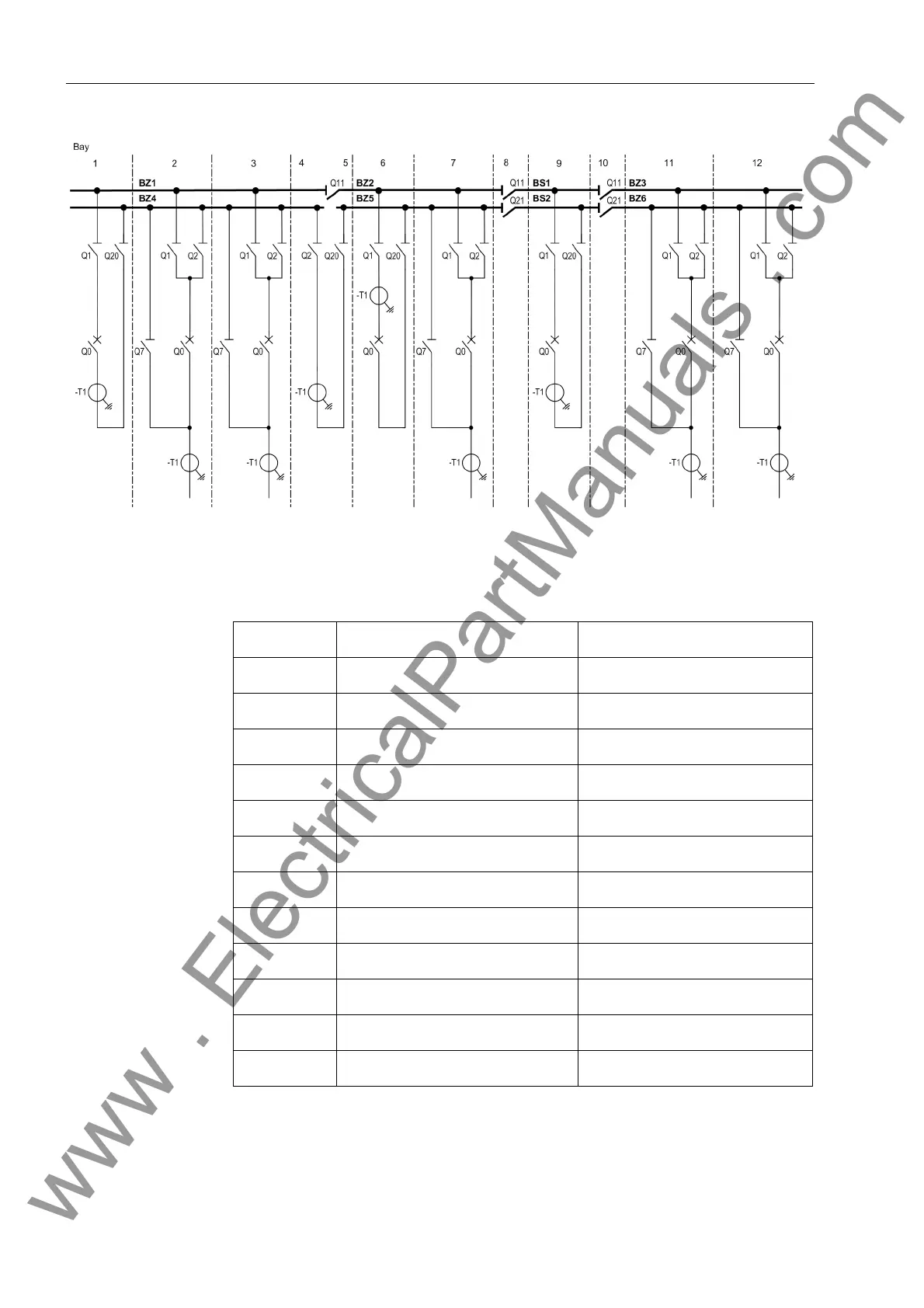

Figure 4-16 Double busbar with combi-bus
Table 4-2 Configuration of a double busbar with combi-bus
Bay: (xx) Bay Type CT LOC
01 1-bay coupler Bus side t. line
02 Feeder bay line side
03 Feeder bay line side
04 1-bay coupler w/o CB Bus side t. bus
05 Section isolator non existent
06 1-bay coupler Bus side t. bus
07 Feeder bay line side
08 Section isolator non existent
09 1-bay coupler Bus side t. line
10 Section isolator non existent
11 Feeder bay line side
12 Feeder bay line side
