Appendix
346
7SS52 V4 Manual
C53000-G1176-C182-3

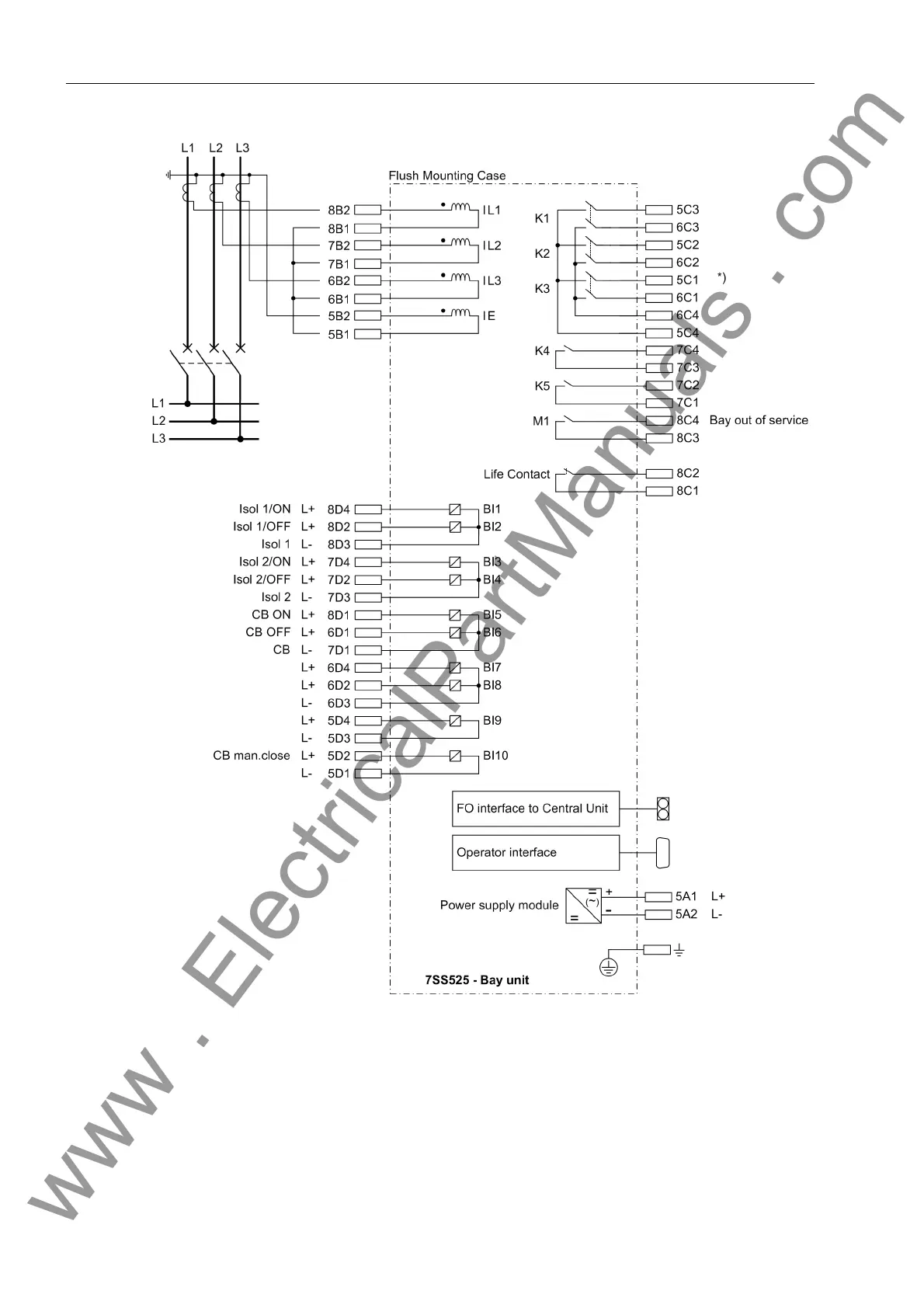

Figure A-6 Connection diagram bay unit 7SS525
*) Table A-32 “Marshalling TRIP
RELAY” show the default assign-
ment of relay K1 - K5.
Legend:
BI: Binary Input
K: Trip relay
CB: Circuit breaker
M: Alarm reley
