Getting Started
32
7SS52 V4 Manual
C53000-G1176-C182-3

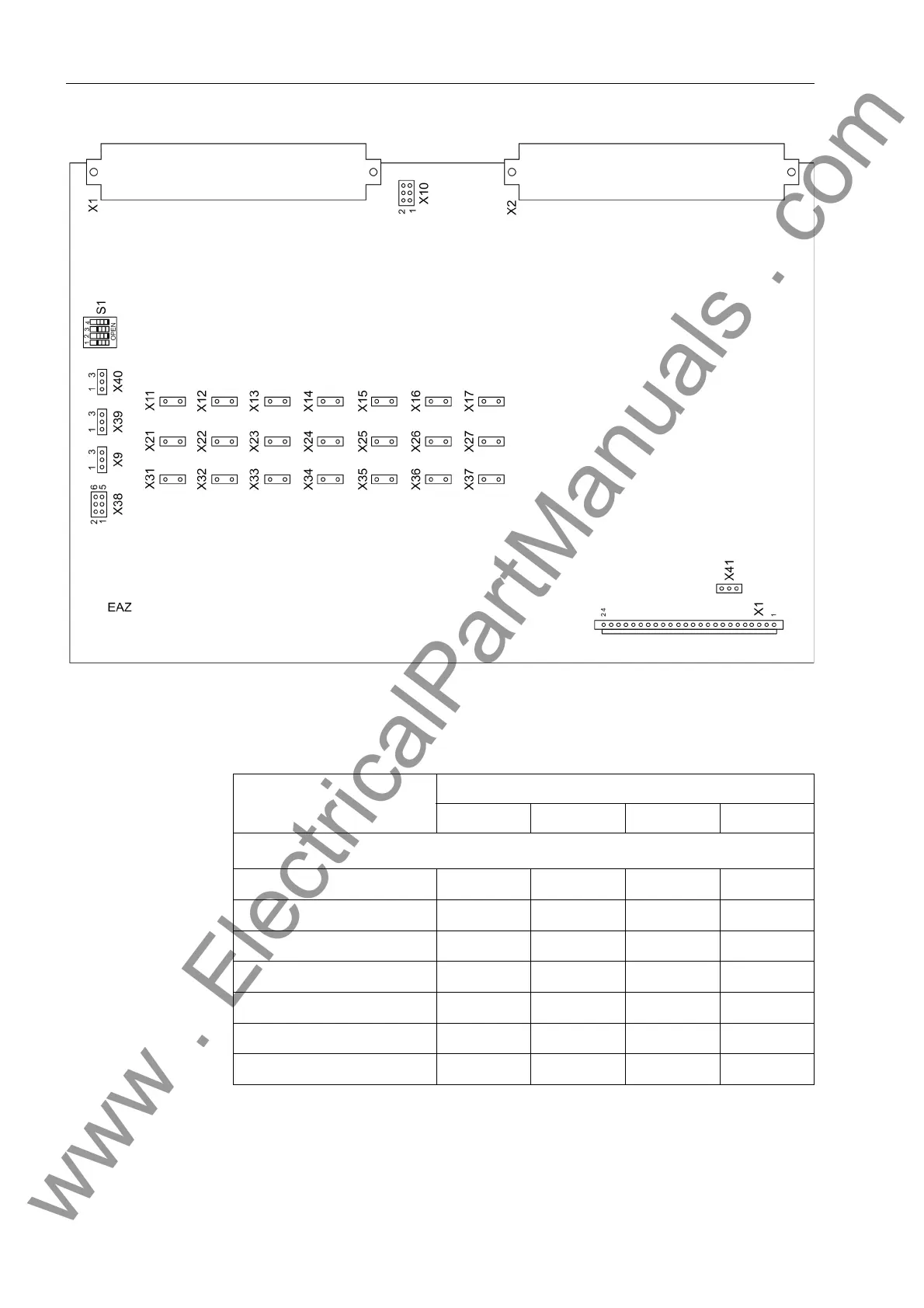

Figure 3-1 Location of the jumpers on the EAZ module (central unit)
Table 3-1 Control voltage for the binary inputs on the EAZ (central unit) in relation to the fit-
ted jumper
Control voltage setting
Name 24 V 60 V 110 V 220 V
BI1 to BI5 (on the D-CPU module, Table 3-2, page 33)
BI6 X31 X21 X11 -
BI7 X32 X22 X12 -
BI8 X33 X23 X13 -
BI9 X34 X24 X14 -
BI10 X35 X25 X15 -
BI11 X36 X26 X16 -
BI12 X37 X27 X17 -
