SINAMICS S120 Cabinet Modules
Engineering Information
SINAMICS Engineering Manual – November 2015
Ó Siemens AG
473/528
Motor Module
Power at
500 V / 690 V
[kW]
Rated output current
[ A ]
Order No.
Line supply voltage 500 V – 690 V 3AC (DC link voltage 675 V – 1035 V DC)
315 / 450
400 / 560
465
575
735
810
810
1025
1270
1560
6SL3725-1TG34-7AA3
6SL3725-1TG35-8AA3
6SL3725-1TG37-4AA3
6SL3725-1TG38-0AA3
6SL3725-1TG38-1AA3
6SL3725-1TG41-0AA3
6SL3725-1TG41-3AA3
6SL3725-1TG41-6AA3
500 / 710
560 / 800
560 / 800
710 / 1000
900 / 1200
1000 / 1500
Power ratings and order numbers of the various Motor Modules (500 – 690 V)
Motor Module

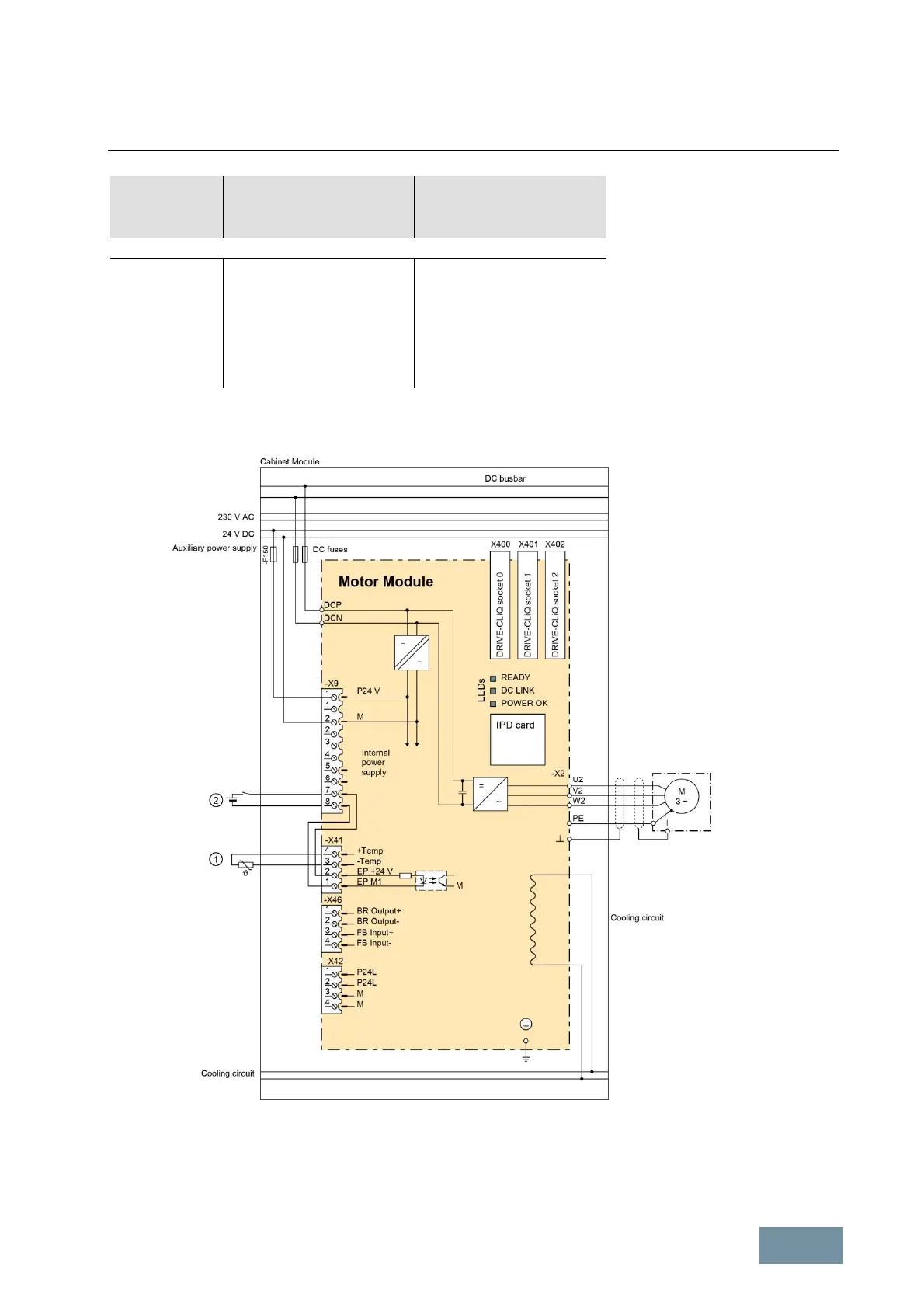

Example of a liquid-cooled Motor Module with DC fuses between the Motor Module and the DC busbar
7.3.7.2 DC link fuses
Every Motor Module is equipped as standard with DC fuses. The DC fuses are mounted on the connecting rail to the
DC busbar in the cabinet rather than in the power unit itself.
